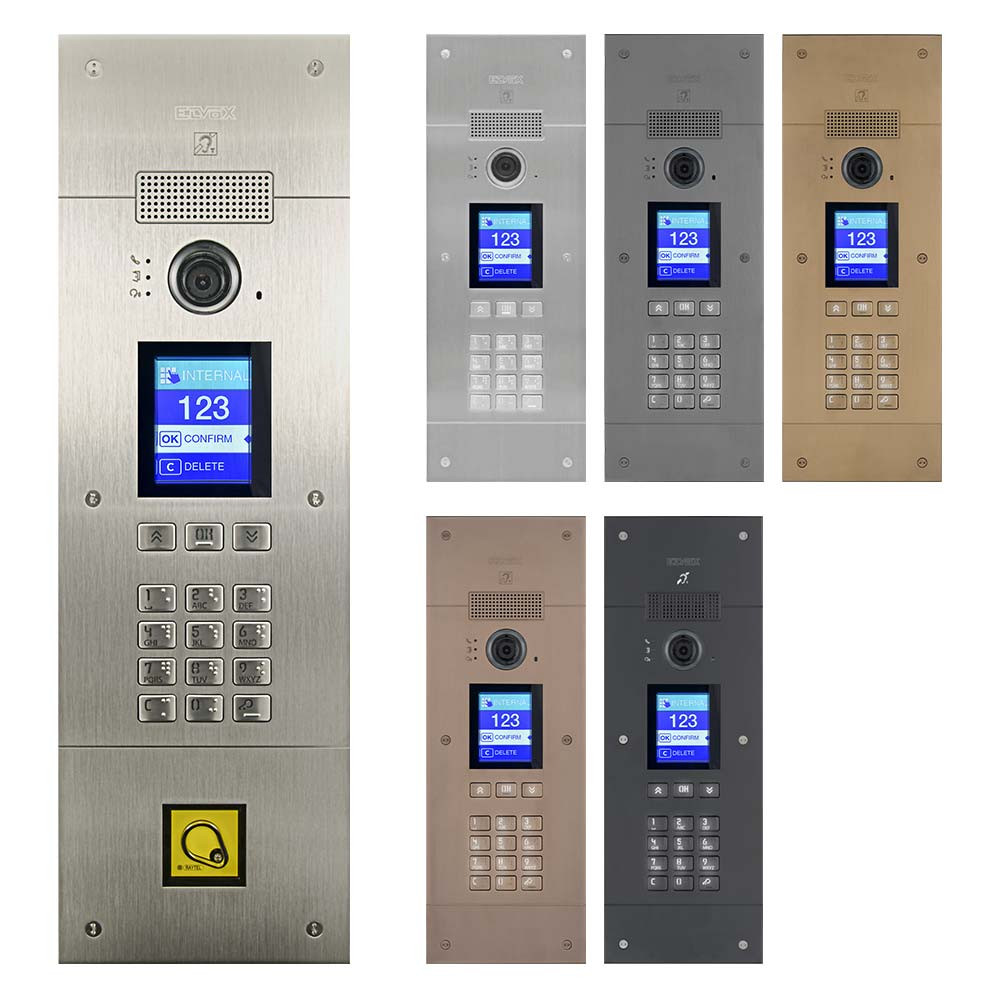

Pixel Up Series Door Entry Panels - 2 Wire and IP


  • Available for 2-Wire, IP and IP Riserless audio and video systems
  • Interfacing to acoustic devices used by the hard-of-hearing
  • Voice synthesis, for signalling the call state
  • Front LEDs, for signalling the call state
  • Light sensor function for automatically adjusting the brightness according to the ambient light
  • Zoom & scan function, used to zoom in an scan the areas shown by the camera
  • Electric lock command (connected directly to the terminals S+ and S- or to the contacts supported by the keyboard relays)
  • Connection for an additional local push button to open the lock or for a “Door open” signalling sensor
  • The device allows persons with disabilities to listen to the call audio and receive call status signals via an appropriate hearing aid

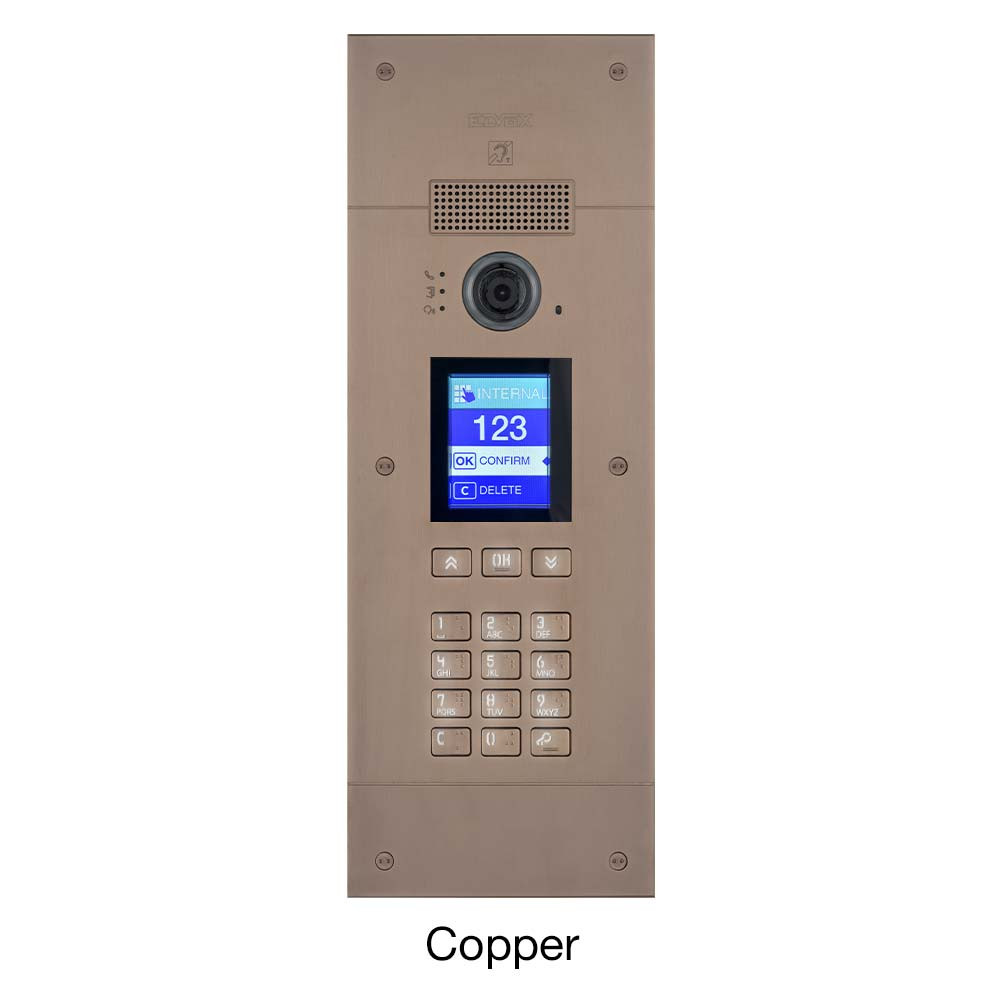

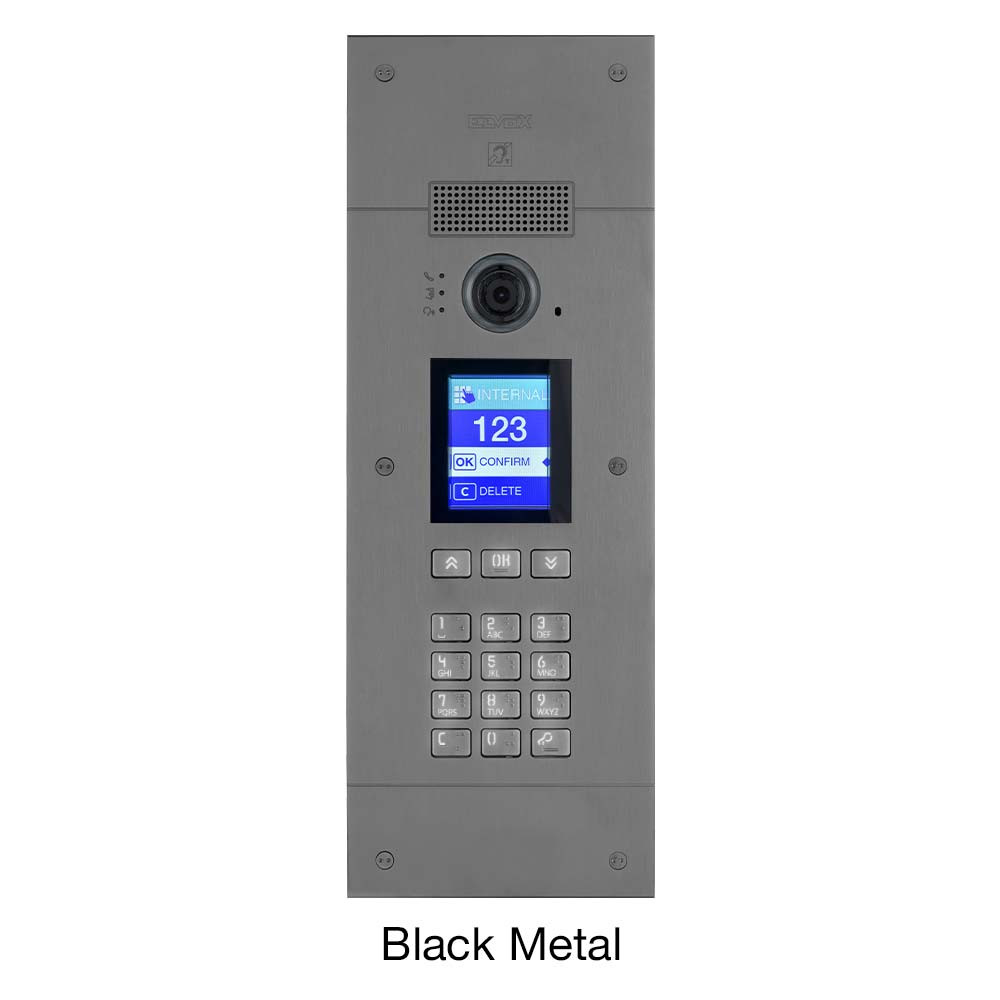

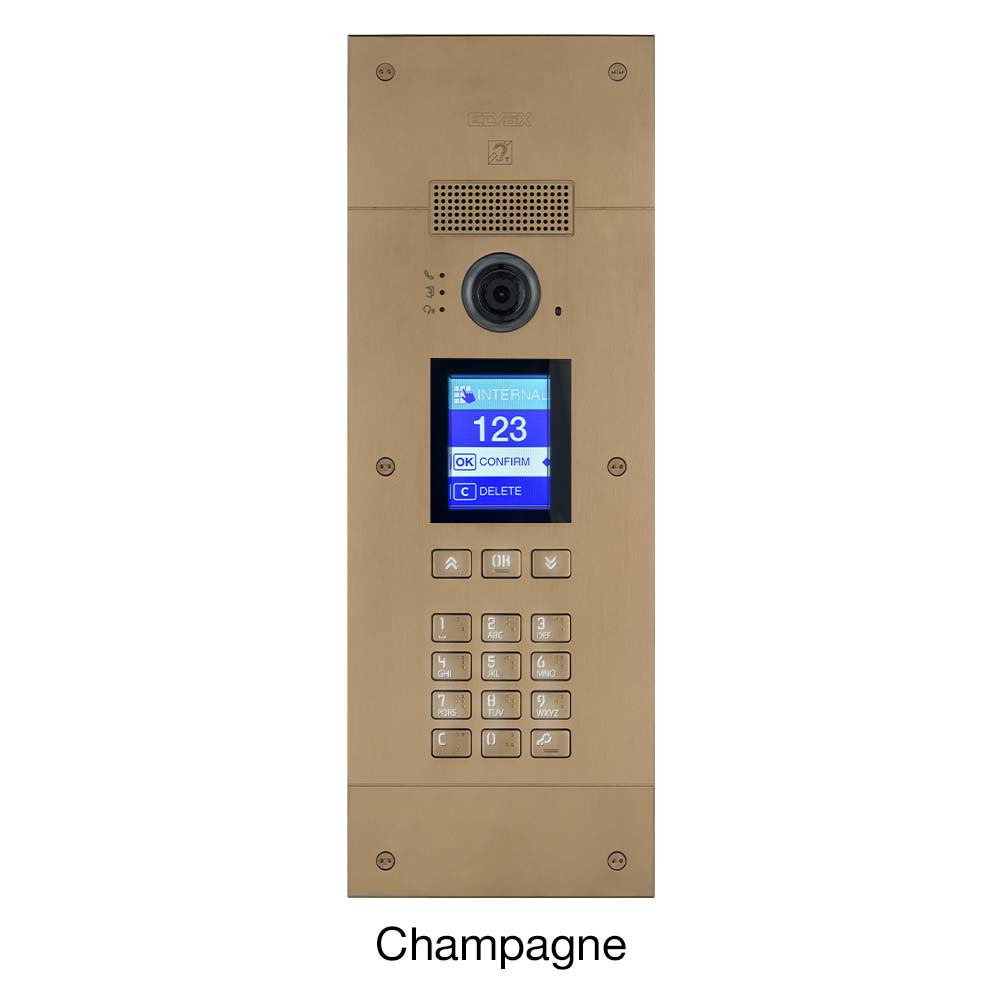

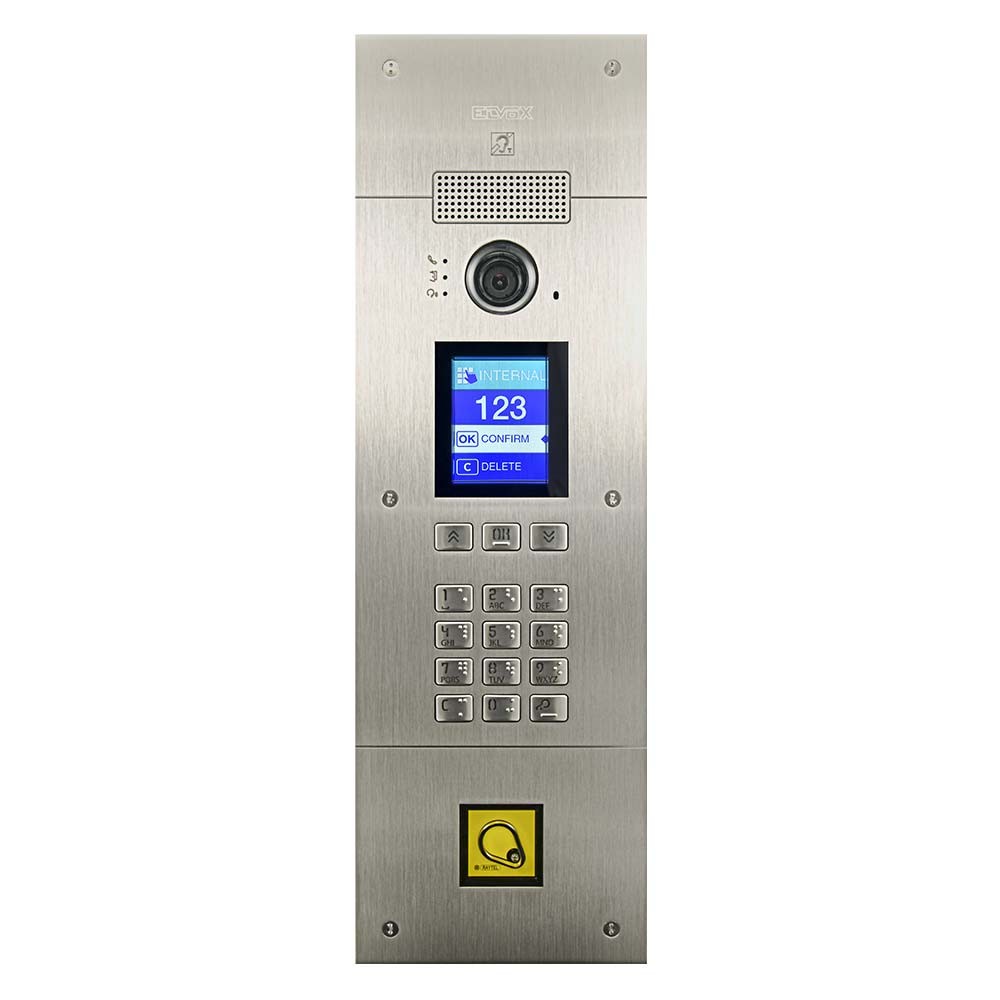

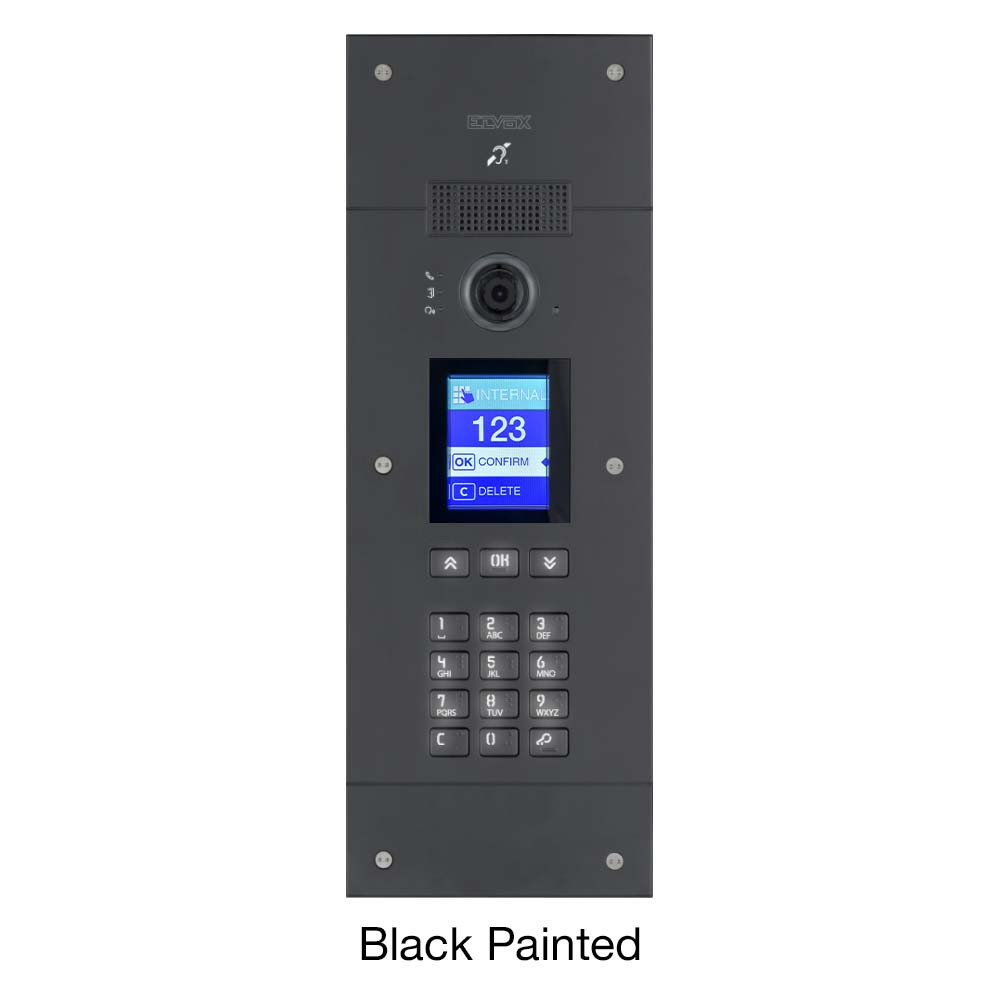

Pixel Up, slim and strong

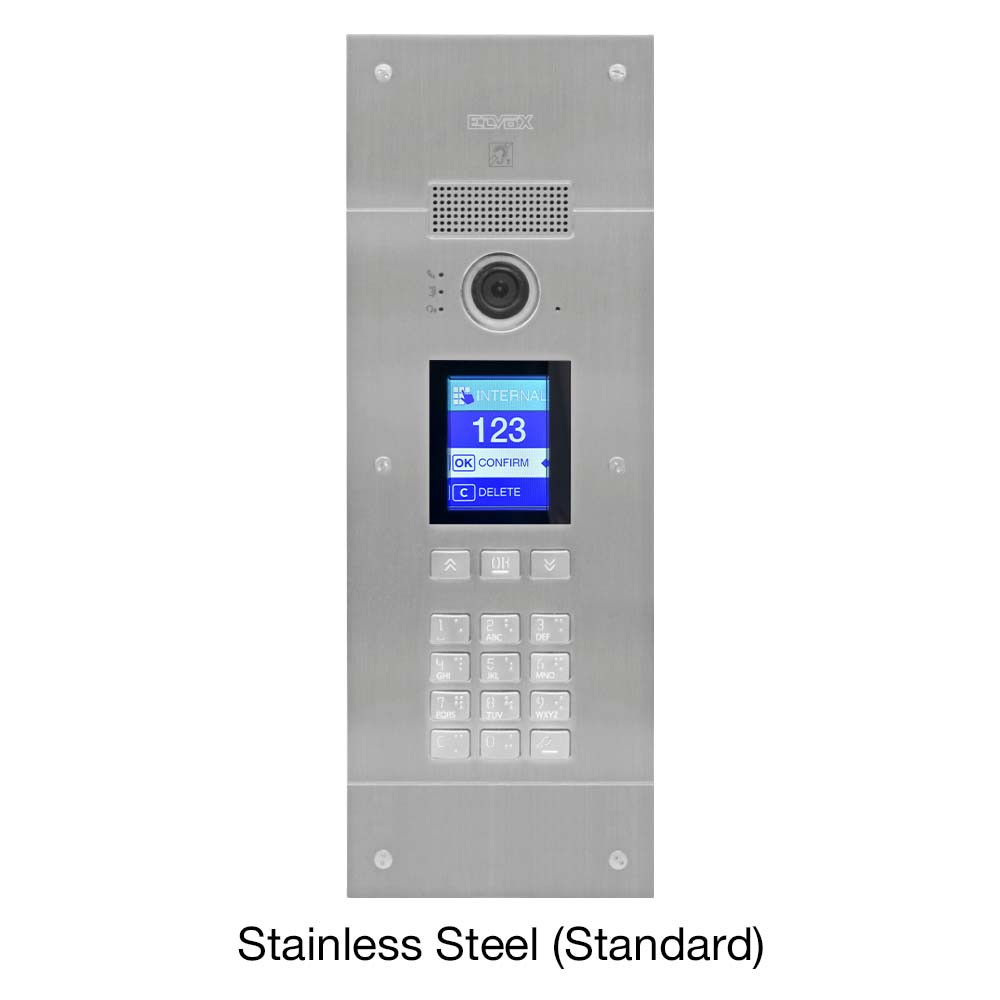

Pixel Up is the entrance panel with front plate made of 316 stainless steel with a brushed finish, with thin thickness and linear design.

It is available with an alphanumeric keyboard, stainless steel buttons and a colour display with polycarbonate protective glass, with IP54 degree of protection and IK08 impact resistance.

The Pixel Up is equipped with a high-definition wide-angle lens video camera that protrudes only 3 mm from the wall.

For flush mounting, the entrance panel is supplied with a stainless steel box, to which the cover plate is fixed using special anti-tamper screws.

High performance 3.5” display
Wide viewing angle and backlighting that allows easy reading of information even in intense light. 5 mm thick polycarbonate screen protector.

Voice synthesis
Entrance panel use by the visually impaired is facilitated, thanks to voice messages that guide the user step by step.

Automatic gain control
Thanks to automatic gain control (AGC), sound levels are optimised irrespective of the distance and tone of the speaker, of the devices called and of the complexity of the system. There is no need to adjust the gain.

Echo cancelation
The echo cancellation algorithm means you can have natural, two-way conversations, automatically avoiding annoying audio feedback or whistling (Larsen effect), without having to adjust the microphone and speaker during installation.

Integrated teleloop
Thanks to this technology, T-coil hearing aid wearer, can listen to conversations directly in their hearing aid.

Noise reduction and VAD
You will hear loud and clear thanks to the noise reduction function and voice activity detection (VAD).

The Pixel Up series of Door Entry panels are available for 2 Wire systems, IP systems, and now IP Riserless systems.

So what is the IP Riserless Door Entry System from Vimar Elvox?

The Riserless system uses IP technology which enables advanced door entry capabilities. This, therefore, increases performance with audio and video communications becoming potentially endless. The system works by using existing LAN networks without any specific wiring, through using the Video Door App.

  • Simple configuration: Installations from the smallest to the most complex, are made simple by the autodiscovery function for Elvox IP door entry system devices. Installation is always quick and functional which supports the requirements of the professional installers.
  • Remote management by smartphone and tablet: With the Video Door App, it is possible to receive a video call, to control CCTV cameras (if connected), or to even open a door of your home, from wherever you are.
  • Full coverage: With enhanced performance, audio and video signal is guaranteed and protected, no matter what the size of the building.

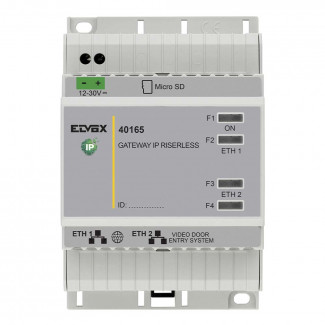

  • Guaranteed reliability: With the new IP Gateway, it is possible to remotely operate on the parameters of the entrance panels and manage the access control. The system data is replicated on the different devices, which ensures constant system operation.

    Video door entry systems that use the Riserless IP technology, directly forward the video door entry calls from the outer panel to the smartphone via the Video Door App. This is without the need for a monitor in the apartment. This is all achievable because a gateway and licenses have been installed.

  • Up to 1600 calls: Within the same IP system, it is possible to install up to 16 Riserless IP gateways. Each gateway can manage calls from up to 100 apartments and up to 5 mobile devices per apartment, which can simultaneously receive the same call.
  • Call licenses: Loading the licenses into the Riserless gateway allows the audio and video calls from outer panels to mobile devices via the Video Door App.
  • User remote control with smartphone and tablet: The gateway and Video Door app allow the following video door entry functions from mobile devices: receive calls, activate the outer units, or a CCTV camera from a smartphone, activate the outer unit lock, activate auxiliary services, communicate with the porter switchboard if present, send and receive text messages from the porter.
  • Scalability and versatility: The IP video door entry system was designed to respond in the simplest way to the needs of all kinds of buildings: from single homes to large residential complexes.

Additional Information

Manufacturer Vimar - Elvox


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
