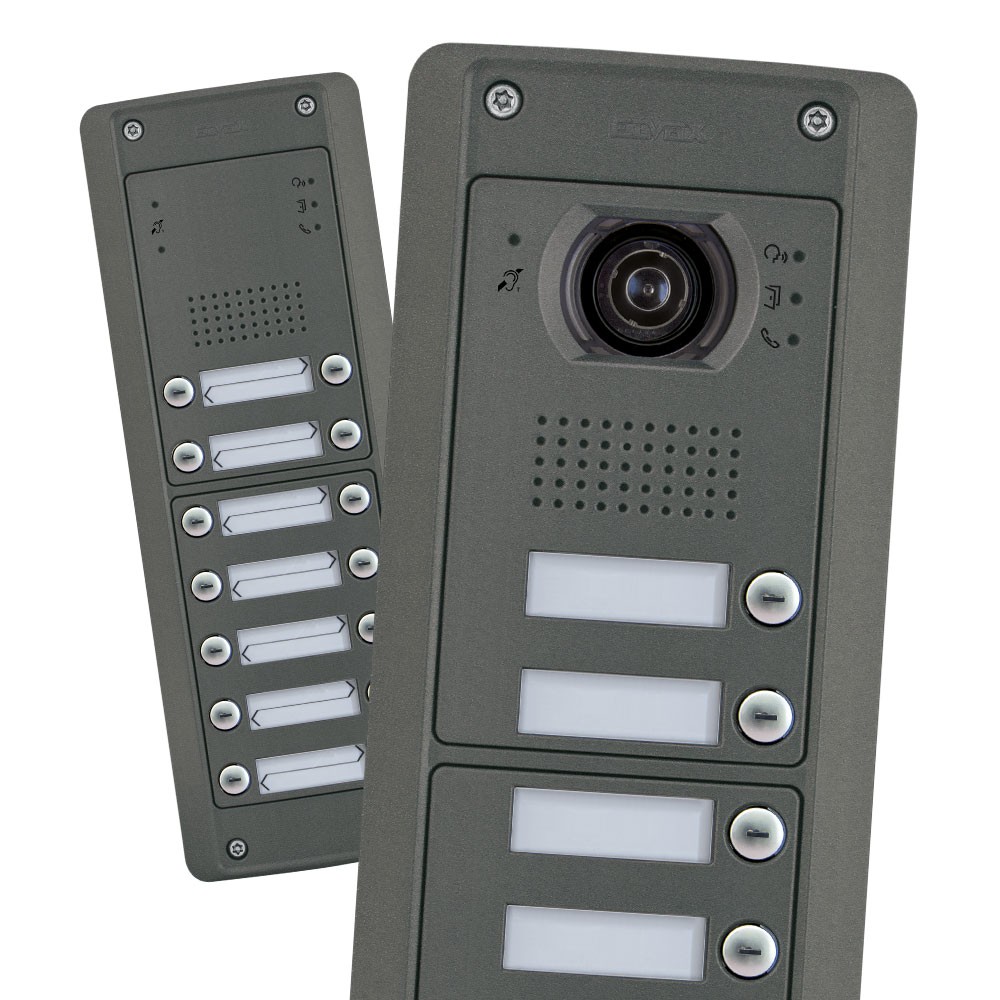

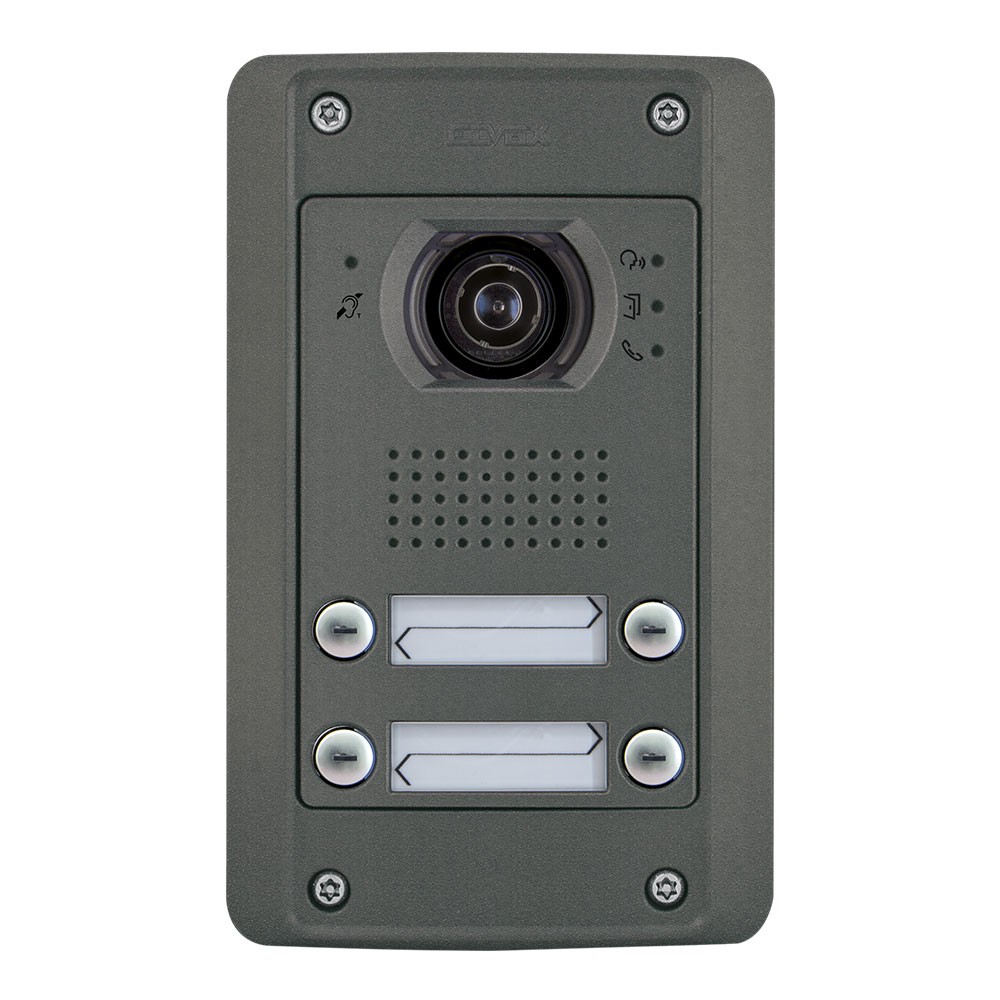

Elvox Pixel Heavy Series - Audio / Video Door Entrance Panels - 2 Wire and IP


  • Strong and robust
  • 3.5" Colour LCD display module available
  • Clear Audio
  • Built-in Hard of Hearing function
  • Versatile modular design


Strength meets design - Welcome to the Elvox Pixel Heavy Series. With the same minimal lines and rounded corners of the whole Pixel series, the new Elvox video door entrance panel stands out for its great strength and robustness.

Available in the special sable grey finish, with the die-cast aluminium frame, the Zamak front modules and protection ratings IK10 and IP54, it is even more weather and impact resistant and is ideal for installation in saline environments.

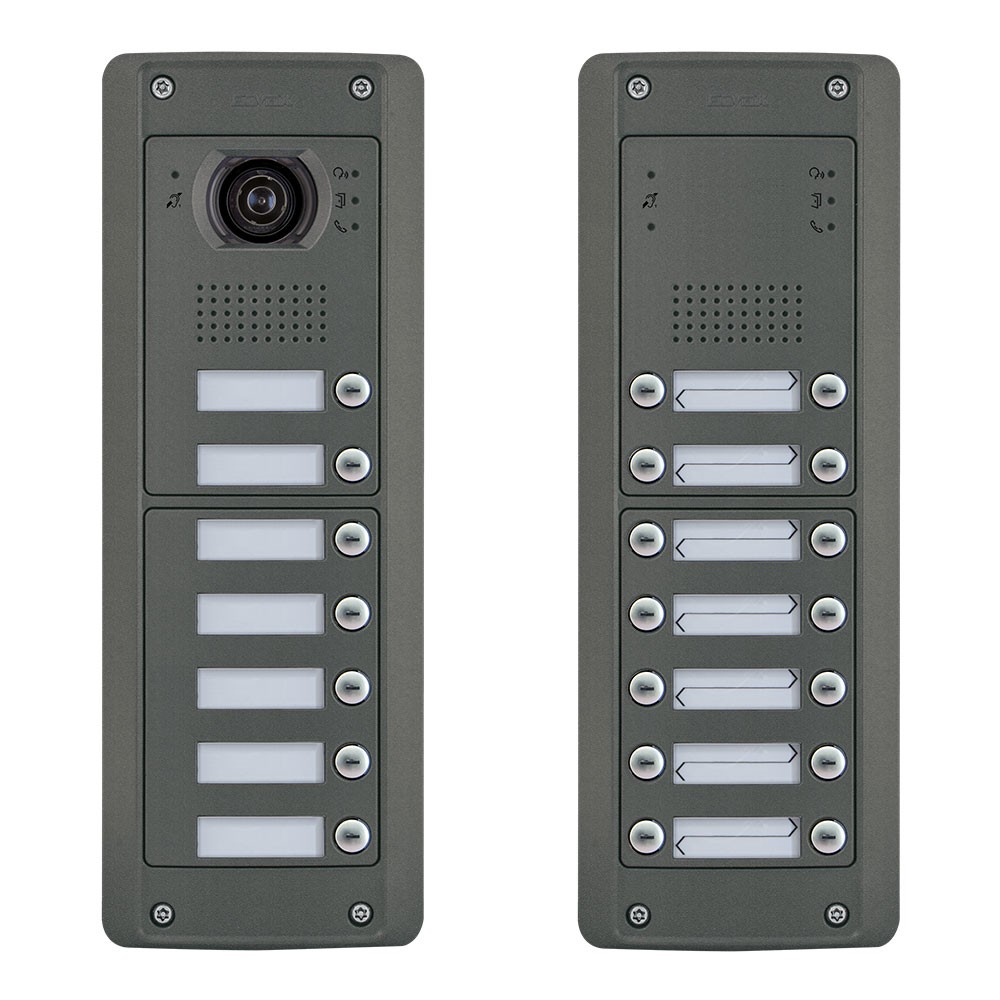

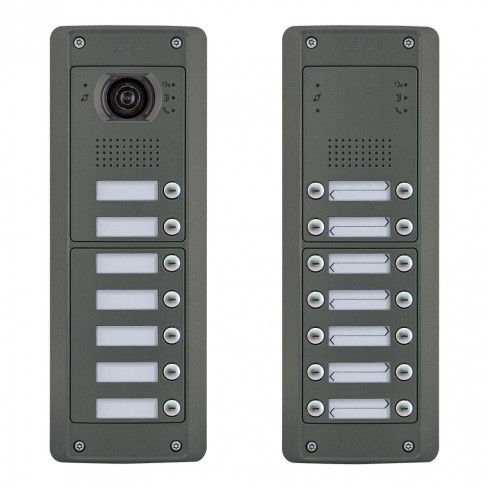

Like Pixel, Pixel Heavy can also be used to create different combinations to suit every need. Its flexible development starting from one, two or three modules vertically, can also be used to create three horizontal rows, with combinations of up to nine modules.

It is modular with Due Fili Plus (2 Wire) and IP audio, audio/video, wide-angle audio/video electronic units, with 3.5" LCD colour display and alphanumeric keyboard. This modularity means that the entrance panel can be expanded to fit up to a maximum of 84 push buttons, satisfying any installation need.

Pixel Heavy can be installed in both special stainless steel tear-proof flush mounting boxes and normal flush mounting boxes in the Pixel series.

The Pixel Heavy series of Door Entry panels are available for 2 Wire systems, IP systems, and now IP Riserless systems.

So what is the IP Riserless Door Entry System from Vimar Elvox?

The Riserless system uses IP technology which enables advanced door entry capabilities. This, therefore, increases performance with audio and video communications becoming potentially endless. The system works by using existing LAN networks without any specific wiring, through using the Video Door App.

  • Simple configuration: Installations from the smallest to the most complex, are made simple by the autodiscovery function for Elvox IP door entry system devices. Installation is always quick and functional which supports the requirements of the professional installers.
  • Remote management by smartphone and tablet: With the Video Door App, it is possible to receive a video call, to control CCTV cameras (if connected), or to even open a door of your home, from wherever you are.
  • Full coverage: With enhanced performance, audio and video signal is guaranteed and protected, no matter what the size of the building.
  • Guaranteed reliability: With the new IP Gateway, it is possible to remotely operate on the parameters of the entrance panels and manage the access control. The system data is replicated on the different devices, which ensures constant system operation.

    Video door entry systems that use the Riserless IP technology, directly forward the video door entry calls from the outer panel to the smartphone via the Video Door App. This is without the need for a monitor in the apartment. This is all achievable because a gateway and licenses have been installed.

  • Up to 1600 calls: Within the same IP system, it is possible to install up to 16 Riserless IP gateways. Each gateway can manage calls from up to 100 apartments and up to 5 mobile devices per apartment, which can simultaneously receive the same call.
  • Call licenses: Loading the licenses into the Riserless gateway allows the audio and video calls from outer panels to mobile devices via the Video Door App.
  • User remote control with smartphone and tablet: The gateway and Video Door app allow the following video door entry functions from mobile devices: receive calls, activate the outer units, or a CCTV camera from a smartphone, activate the outer unit lock, activate auxiliary services, communicate with the porter switchboard if present, send and receive text messages from the porter.
  • Scalability and versatility: The IP video door entry system was designed to respond in the simplest way to the needs of all kinds of buildings: from single homes to large residential complexes.

Additional Information

Manufacturer Vimar - Elvox
Part Numbers N/A


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
