The new Elvox Pixel Series modular entrance panels with a slim & modern design. Elegant and versatile.
The new Pixel entrance panel comes in four colour finishes in the standard version – grey, slate grey, anodized grey and white - and one finish – sable grey - in the Heavy version. The latter, with a die cast aluminium frame and Zamak front panel, not only guarantees the protection rating IP54 of the standard version but is also knock resistant, with protection rating IK10.

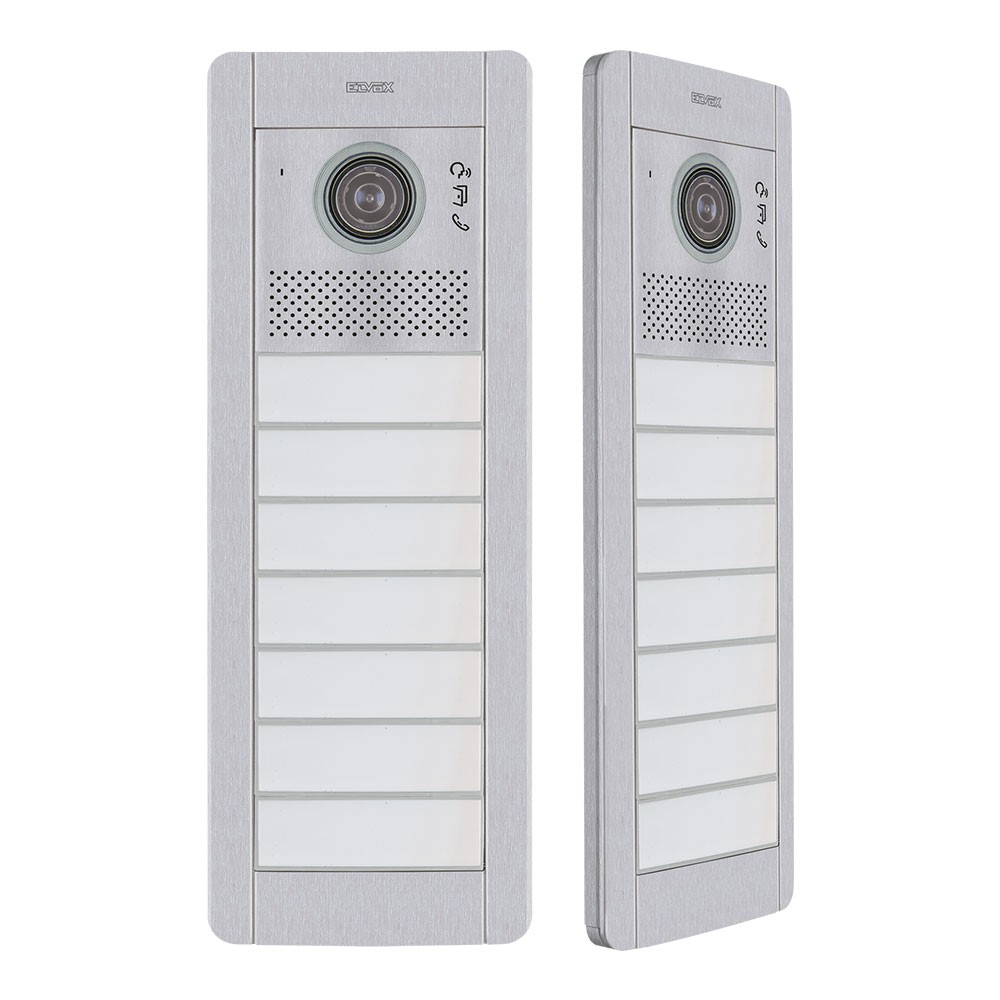

Protruding just 14 mm from the wall and 100 mm wide, Pixel is the ideal solution for elegant installations even in confined spaces.

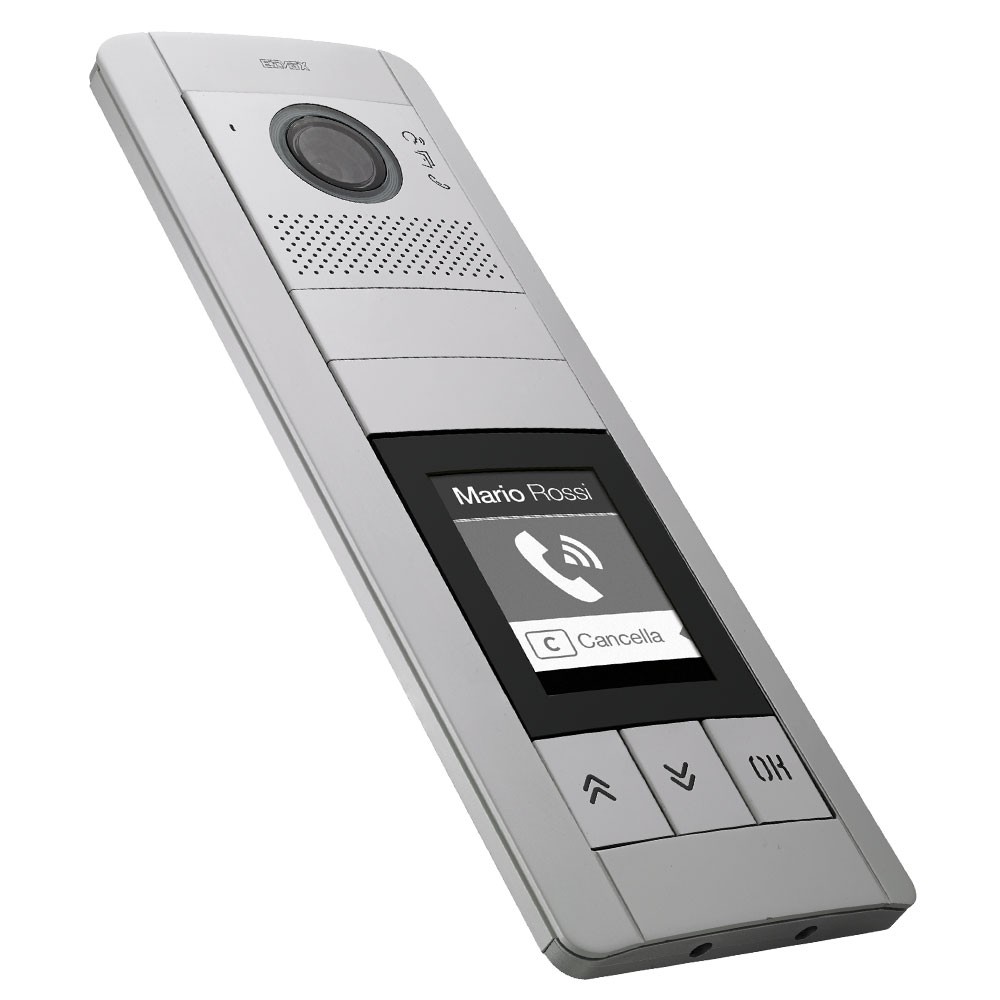

The pixel range comes through louder and clearer in audio or audio/video and the 3.5" colour LCD display which, with an 80° horizontal viewing angle, ensures excellent reading even in backlit conditions.

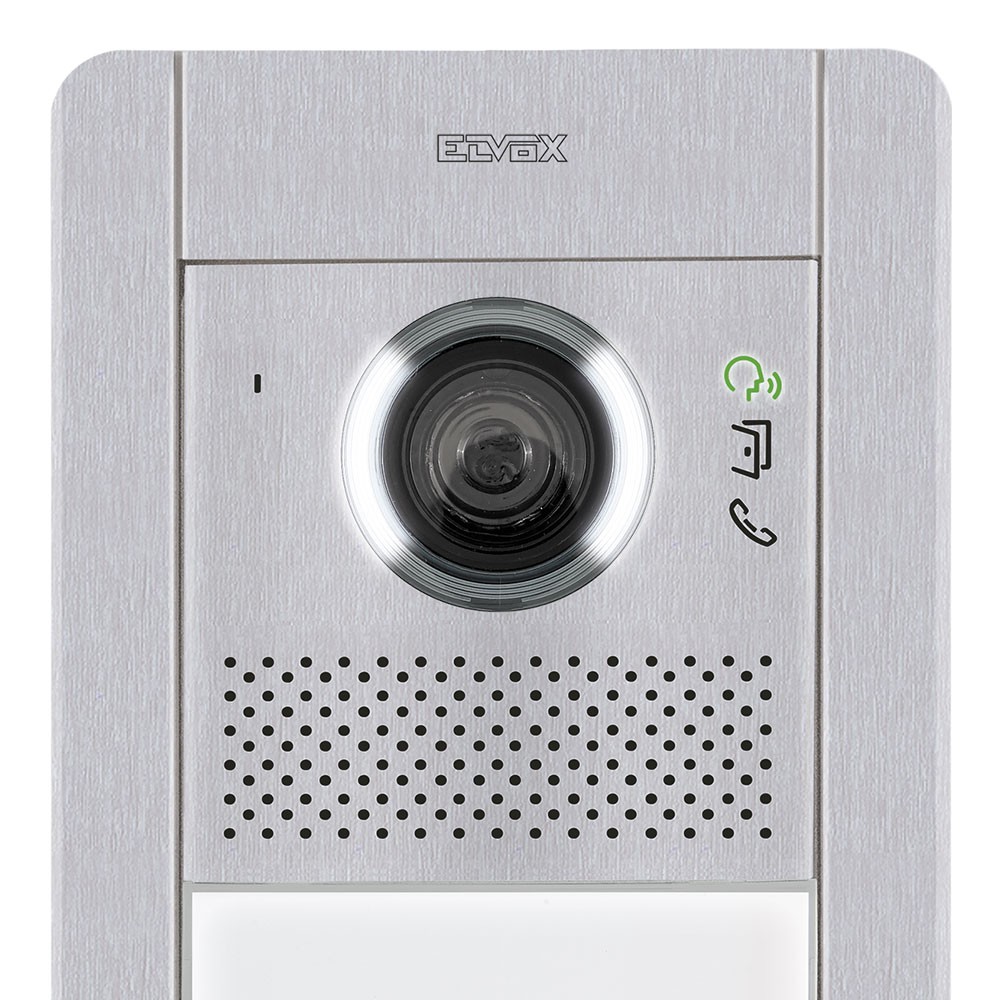

With incorporated hard of hearing function, for fitting up to four buttons in double file, the audio/video module is a turnkey product for installations in small residential settings. It is the heart of the entrance panel, and can be expanded as you wish by adding expansion modules or a display module, to suit your installation requirements. It also has a wide angle lens camera with 525 TVL recording resolution. A lighting LED that self-adjusts according to external brightness makes the person at the door clearly visible, without glare for them or you.

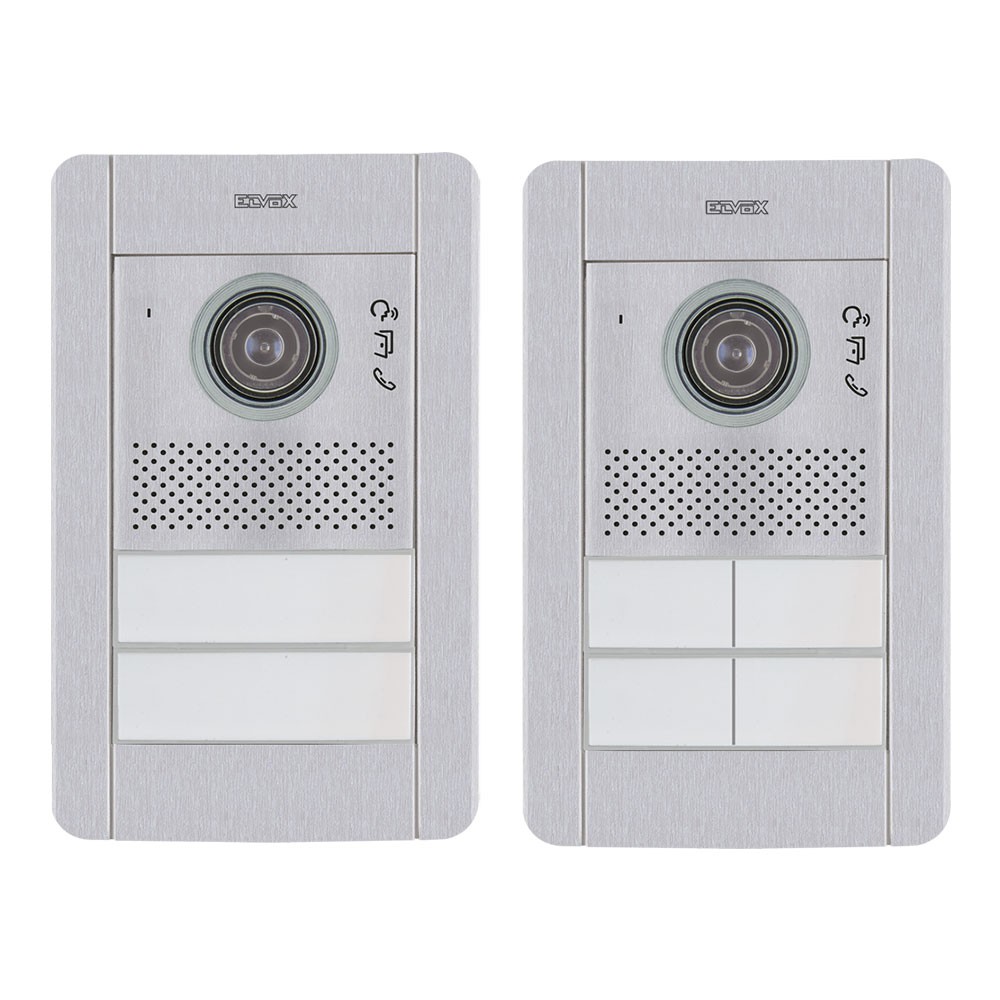

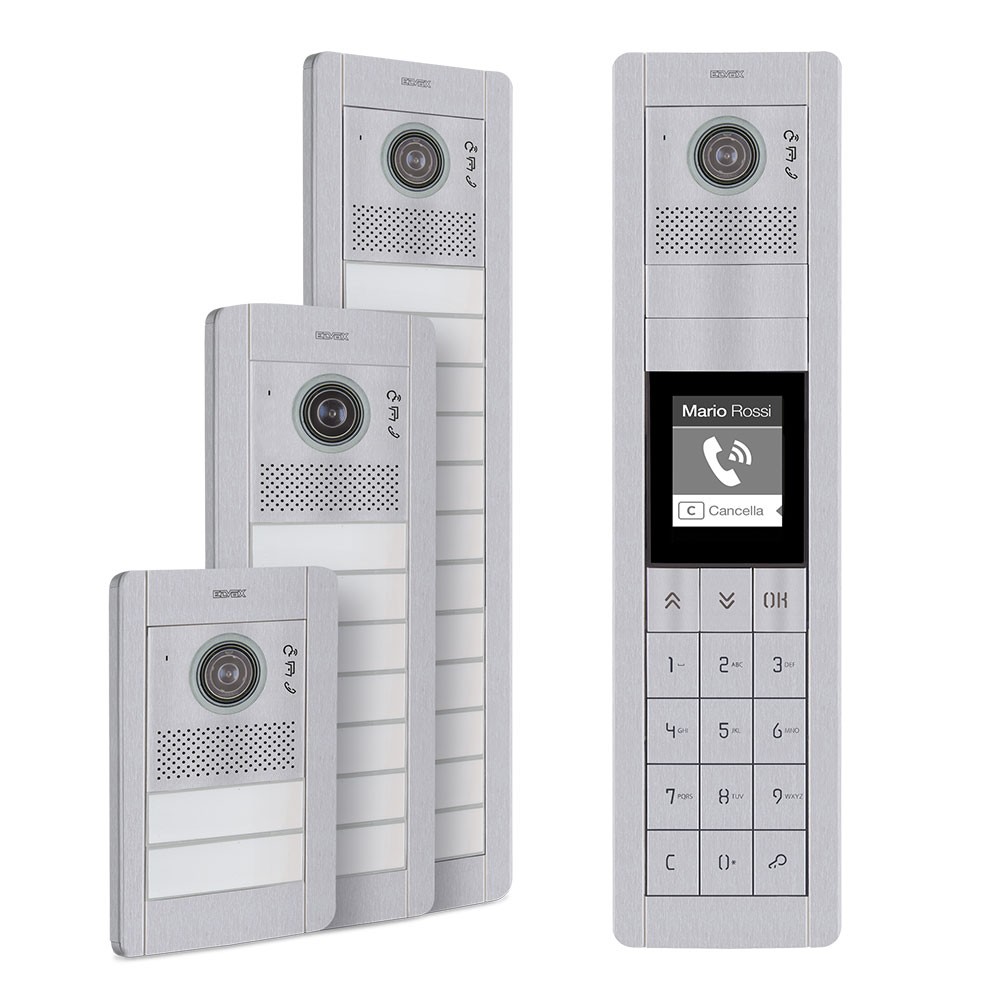

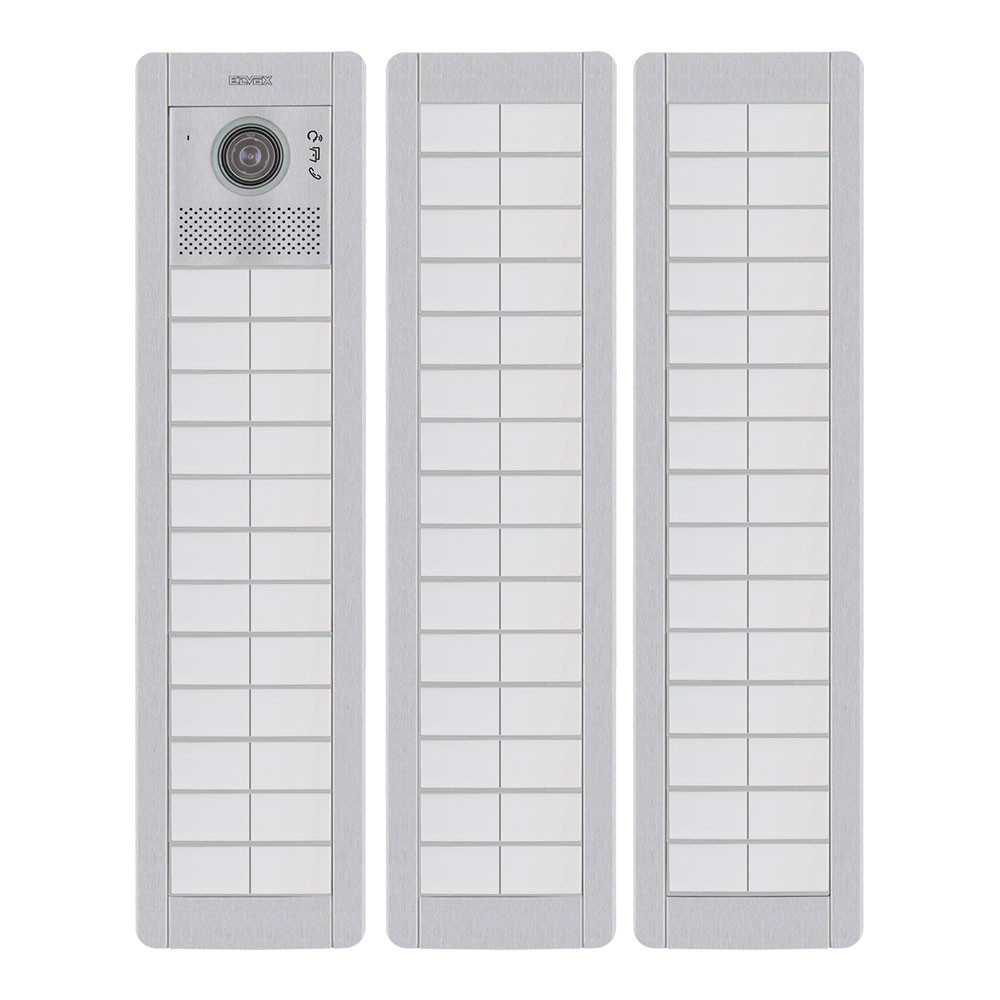

The results are always excellent. The new Elvox entrance panel can be used to create different combinations according to need. Starting from one, two or three vertical modules, you can create up to three rows horizontally, in a composition of nine modules.

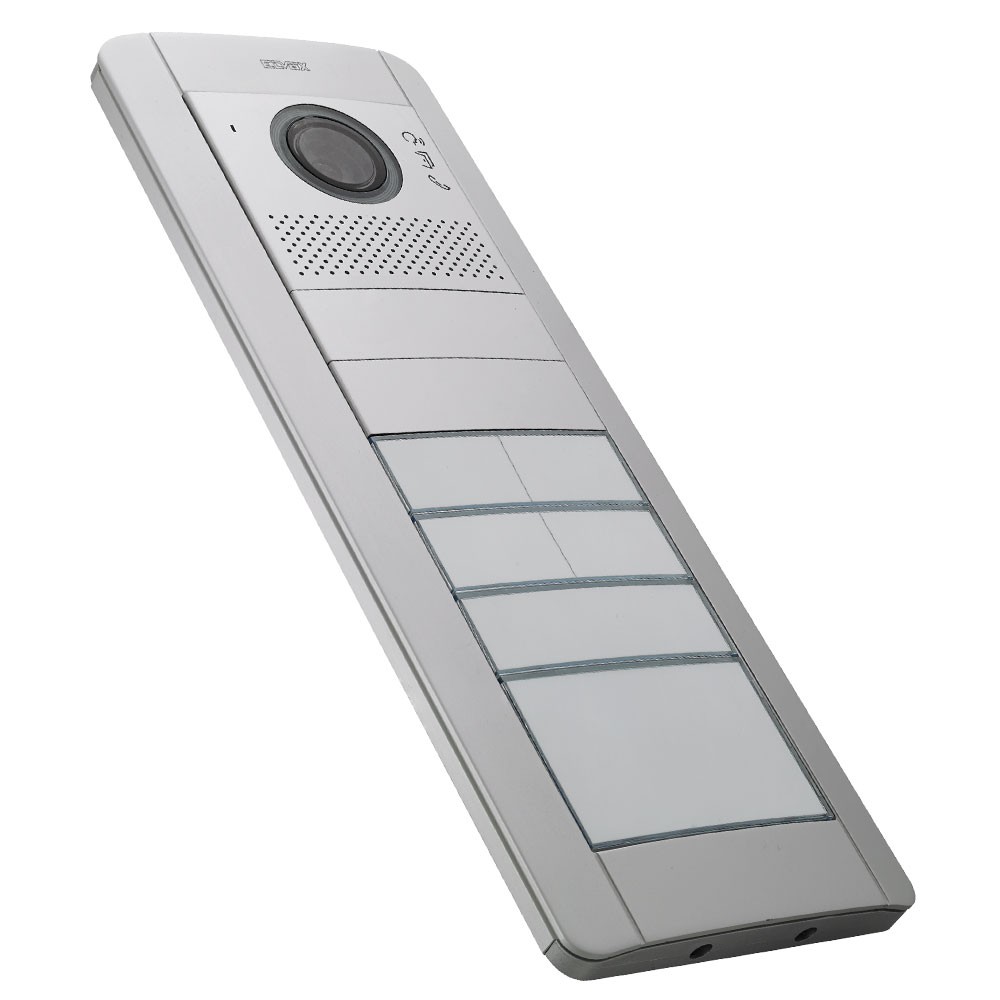

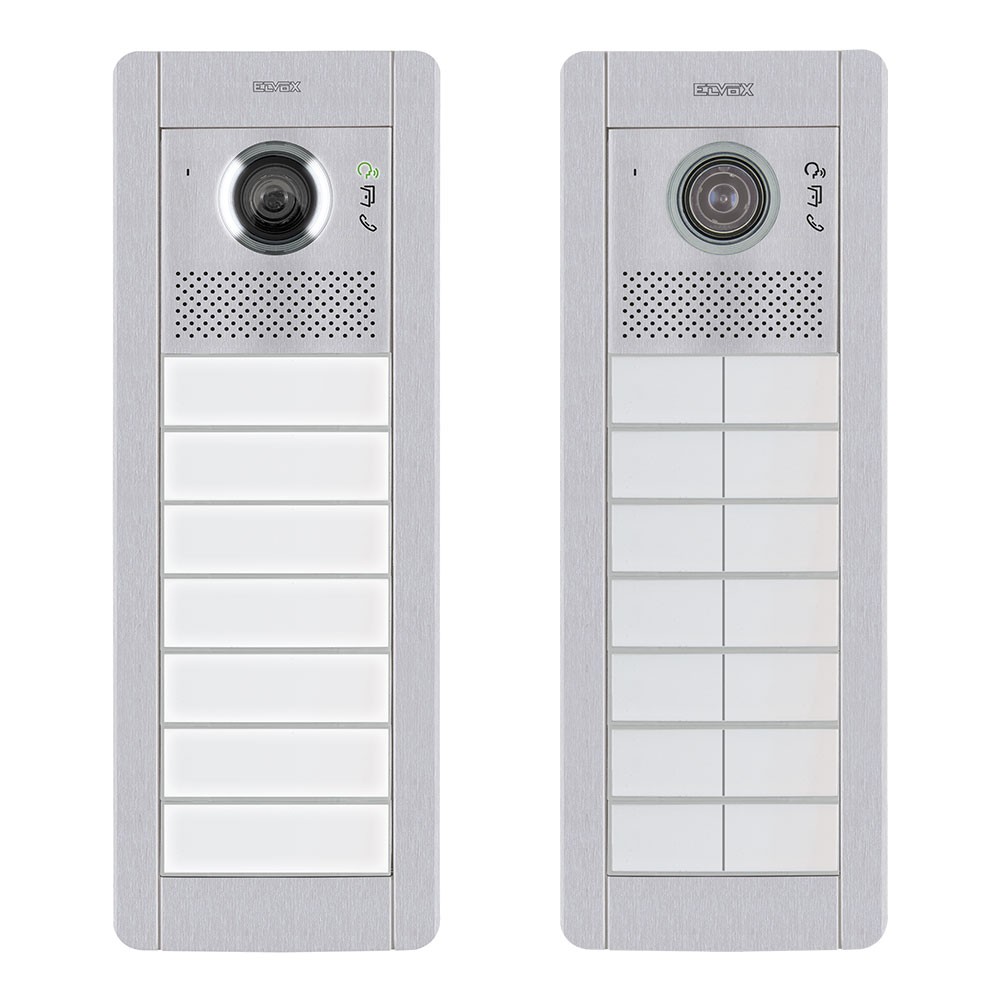

And starting from a single audio/video module, you can expand your entrance panel up to a maximum of 84 buttons, satisfying even the greatest installation needs. With three different types of buttons – double axial, single axial or single rocker - to guarantee a wide range of call solutions.

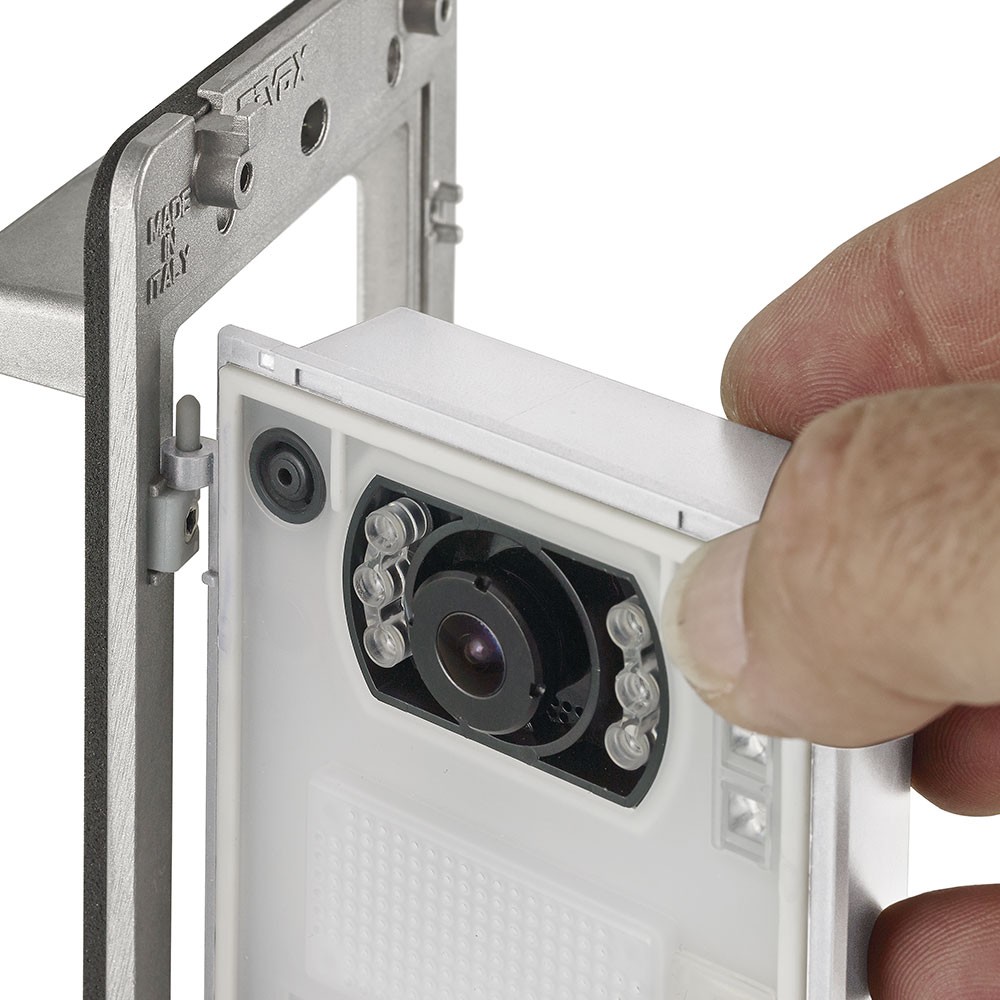

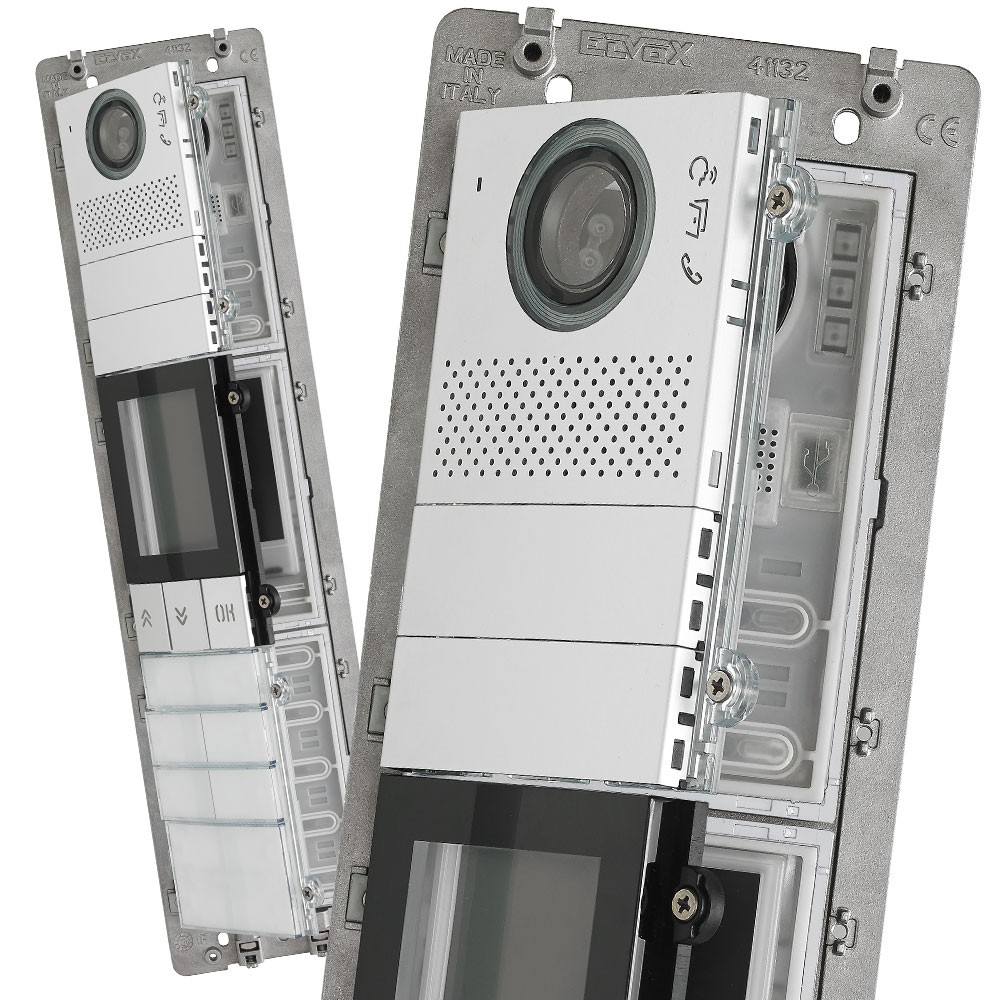

Designed to ensure quick, functional installation, Pixel can be maintained from the front, without having to remove the panel. Special hinges support the modules even when they are open, so you can work with your hands free.
A Mini-USB plug on the front is used to connect a pc for configuration via the Save-Prog software.
With Pixel everything is managed perfectly, right down to the finest detail.
Developed on Due Fili Plus (2 Wire) and IP technology, the new Pixel modular entrance panel is able to manage up to 6400 internal units.
The Pixel series of Door Entry panels are available for 2 Wire systems, IP systems, and now IP Riserless systems.
So what is the IP Riserless Door Entry System from Vimar Elvox?
The Riserless system uses IP technology which enables advanced door entry capabilities. This, therefore, increases performance with audio and video communications becoming potentially endless. The system works by using existing LAN networks without any specific wiring, through using the Video Door App.
- Simple configuration: Installations from the smallest to the most complex, are made simple by the autodiscovery function for Elvox IP door entry system devices. Installation is always quick and functional which supports the requirements of the professional installers.
- Remote management by smartphone and tablet: With the Video Door App, it is possible to receive a video call, to control CCTV cameras (if connected), or to even open a door of your home, from wherever you are.
- Full coverage: With enhanced performance, audio and video signal is guaranteed and protected, no matter what the size of the building.
- Guaranteed reliability: With the new IP Gateway, it is possible to remotely operate on the parameters of the entrance panels and manage the access control. The system data is replicated on the different devices, which ensures constant system operation.
Video door entry systems that use the Riserless IP technology, directly forward the video door entry calls from the outer panel to the smartphone via the Video Door App. This is without the need for a monitor in the apartment. This is all achievable because a gateway and licenses have been installed.
- Up to 1600 calls: Within the same IP system, it is possible to install up to 16 Riserless IP gateways. Each gateway can manage calls from up to 100 apartments and up to 5 mobile devices per apartment, which can simultaneously receive the same call.
- Call licenses: Loading the licenses into the Riserless gateway allows the audio and video calls from outer panels to mobile devices via the Video Door App.
- User remote control with smartphone and tablet: The gateway and Video Door app allow the following video door entry functions from mobile devices: receive calls, activate the outer units, or a CCTV camera from a smartphone, activate the outer unit lock, activate auxiliary services, communicate with the porter switchboard if present, send and receive text messages from the porter.
- Scalability and versatility: The IP video door entry system was designed to respond in the simplest way to the needs of all kinds of buildings: from single homes to large residential complexes.
