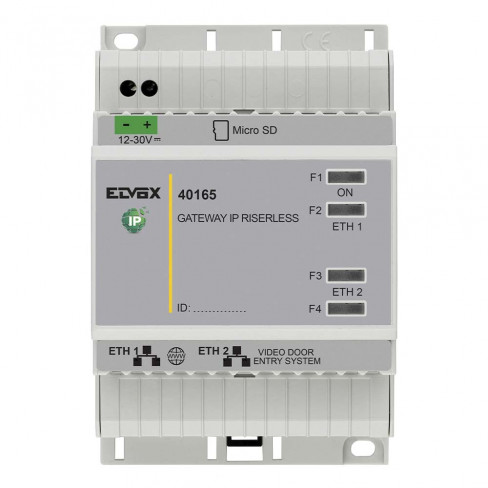

IP Riserless Gateway 40165 - Vimar Elvox Door Entry

Features

  • Riserless IP technology, with call service via the Cloud
  • No dedicated apartment video unit is necessary
  • User remote control with smartphone and tablet
  • Up to 1600 calls
  • Plant manager remote management
  • Versatile and scalable
  • Extremely reliable

Details

IP Riserless Schematic



Video door entry systems with riserless IP technology directly forward video door entry calls from the outer door entry panel unit to your smartphone by the Vimar 'Video Door app', without the need for a physical internal unit in the apartment. This is possible by using the 40165 Gateway and installing a license kit for audio/video calls.


Up to 1600 calls

Within the same IP system, it is possible to install up to 16 riserless IP gateways. Each gateway can manage calls from up to 100 apartments and up to 5 mobile devices (e.g. smartphones) per apartment can simultaneously receive the same call.


Call licenses

Loading licenses into the riserless gateway allows the audio/video calls from outer door entry panel unit to mobile devices via the Vimar 'Video Door app'.

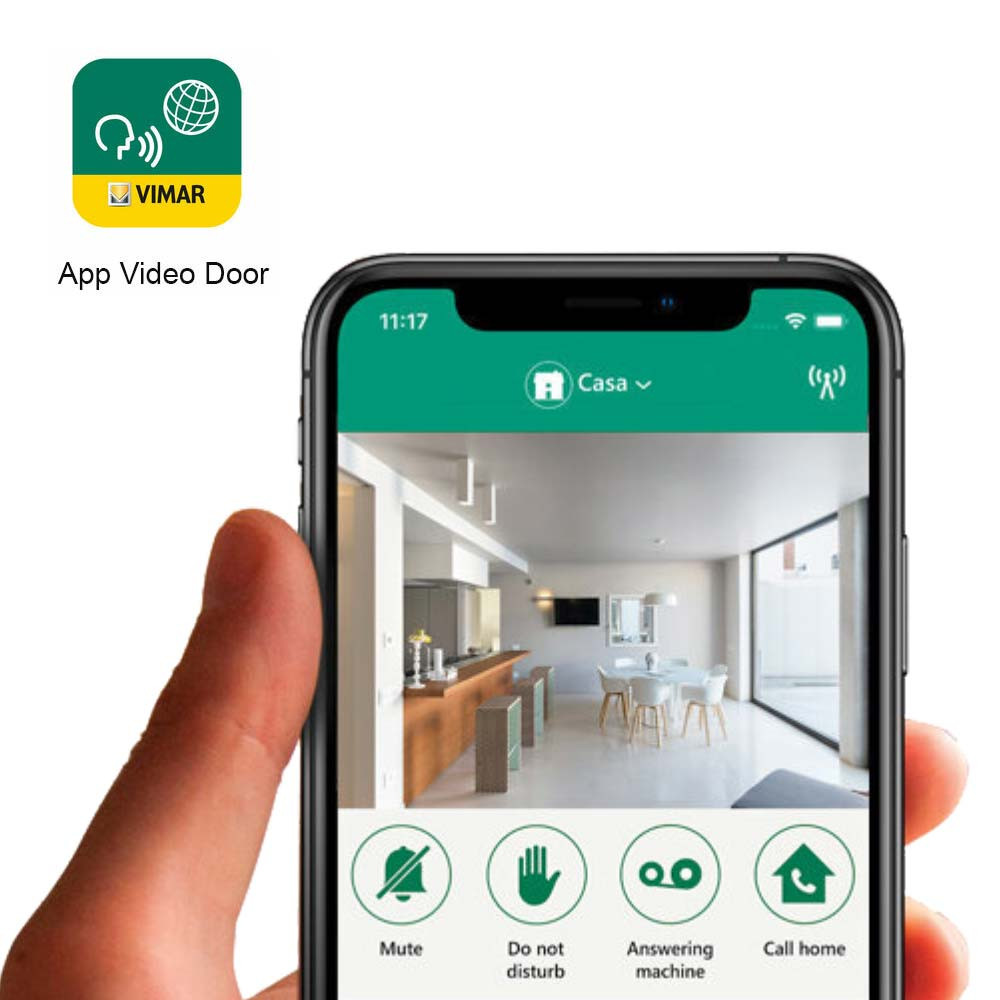

User remote control with smartphone and tablet

The gateway and Vimar 'Video Door app' allows the following video door entry functions from mobile devices:-

  • Receive calls
  • Activate the outer units or a CCTV camera from smartphone
  • Activate the outer unit lock
  • Activate auxiliary services
  • Communicate with the porter switchboard if present
  • Send and receive text messages from the porter


Plant manager remote management

The registrations and access credentials of users and apartments are managed by the system administrator through the 'View Vimar' portal. This portal enables remote management of multiple systems.


Guaranteed reliability

The system data is replicated on the different devices, ensuring constant system operation. Everything is always under control.


Scalability and versatility

The IP video door entry system was designed to respond in the simplest way to the needs of all kinds of buildings; from single homes to large residential complexes.


Note: To use the Vimar Elvox IP Riserless system a licence kit is required.

The Riserless system is currently available with the Pixel, Pixel Heavy and Pixel Up IP door entry panels (see links at bottom of page).
