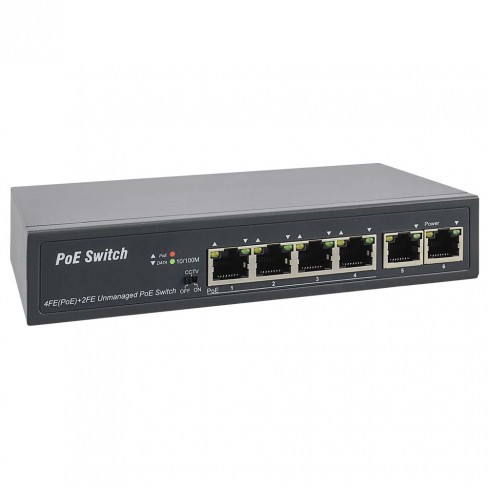

RSS IP-POE4 and IP-POE8 - IP Network Switches

Features

  • For use with the Raytel IP Lite family of products
  • 4 or 8 FE (PoE) Ports* + 2 FE Ports (*16 & 32 way available)
  • 10/100Mbps
  • LED Indicators for power and data
  • Switchable default VLAN and CCTV modes
  • 240V Mains powered with IEC connector
  • Auto learning MAC address table
  • PoE Mode A 1&2 (+) 3&6 (-)
  • 30W Max PoE output

Details

The RSS IP-POE4 and IP-POE8 are unmanaged PoE network switches for use with the RSS IP Lite family of products.

The network switches are available with 4 or 8 PoE ports and 2 non PoE uplink ports*.

The front panel incorporates LED’s to indicate data and power.

A selector switch is provided on both the 4 way and the 8 way switch for additional functionality, the switch should be left in the OFF or DEFAULT positions.

  • System : RSS IP Lite
  • POE Ports : 4 or 8 dependant on model*
  • Non POE Ports : 2 (for up/down link)
  • Dimensions : 4 Port 168(W) x 93(D) x 32mm(H) / 8 Port 220(W) x 150(D) x 44mm(H)
  • Indication : 1 x Orange Power LED / 6(10) x Green Data LED’s / 4(8) x Orange POE Indicator
  • Certifications : Complies with IEEE802.3, 802.3u, 802.3af, 802.3at
  • Temperature Range : 0…40°C
  • Supply Voltage : 240V AC

*16 & 32 way Network Switches available to order.
