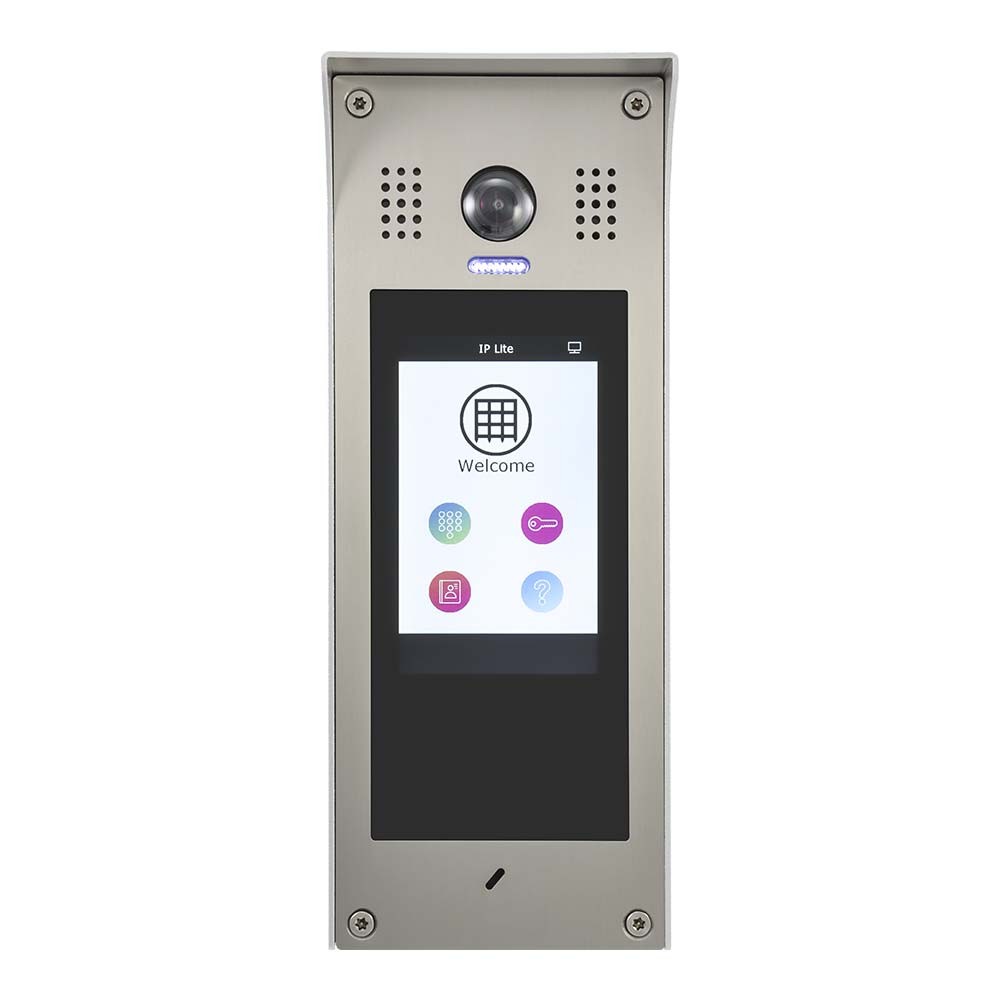

RSS IP-PD Digital Dial IP Video Door Entry Panel

Features

  • For use with the Raytel IP Lite family of products
  • Surface mounting
  • 1 RJ45 connector for power and data (PoE)
  • Built in colour camera
  • Noise cancelling audio
  • Keypad for coded access
  • Built in RFID reader
  • DDA audio annunciations at panel
  • Local connections for lock and exit button
  • IP65 Ingress rating, IK08 Impact rating

Details

The RSS IP-PD is a multifunction door entry panel for use in conjunction with the RSS IP Lite family of products.

The entrance panel incorporates a 5” TFT touch display which provides access to the user directory, direct access keypad and an address book function (if configured). Installer and Manager modes are password protected. Installer mode provides access to all aspects of the system for configuration and initial setup. Manager mode enables the management of keycodes, proximity tokens and the address book.

Audio/visual annunciations are made at the panel to indicate a dwelling is being called, that conversation is established and the lock is released.

  • System : RSS IP Lite
  • Power : PoE (IEEE 802.3af Class 0)
  • LAN Interface : 10 Base T, 100 Base Tx, RJ45
  • Camera : 170 Degree
  • Min Illumination : 5 Lux
  • Display : 5” Multi function touch TFT
  • Finish : Brushed Stainless Steel
  • Ingress Protection : IP65
  • Impact Protection : IK08
  • Operating Temperature : –10…+50°C
  • Dimensions : 281(H) x 110(W) x 44(D)
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
