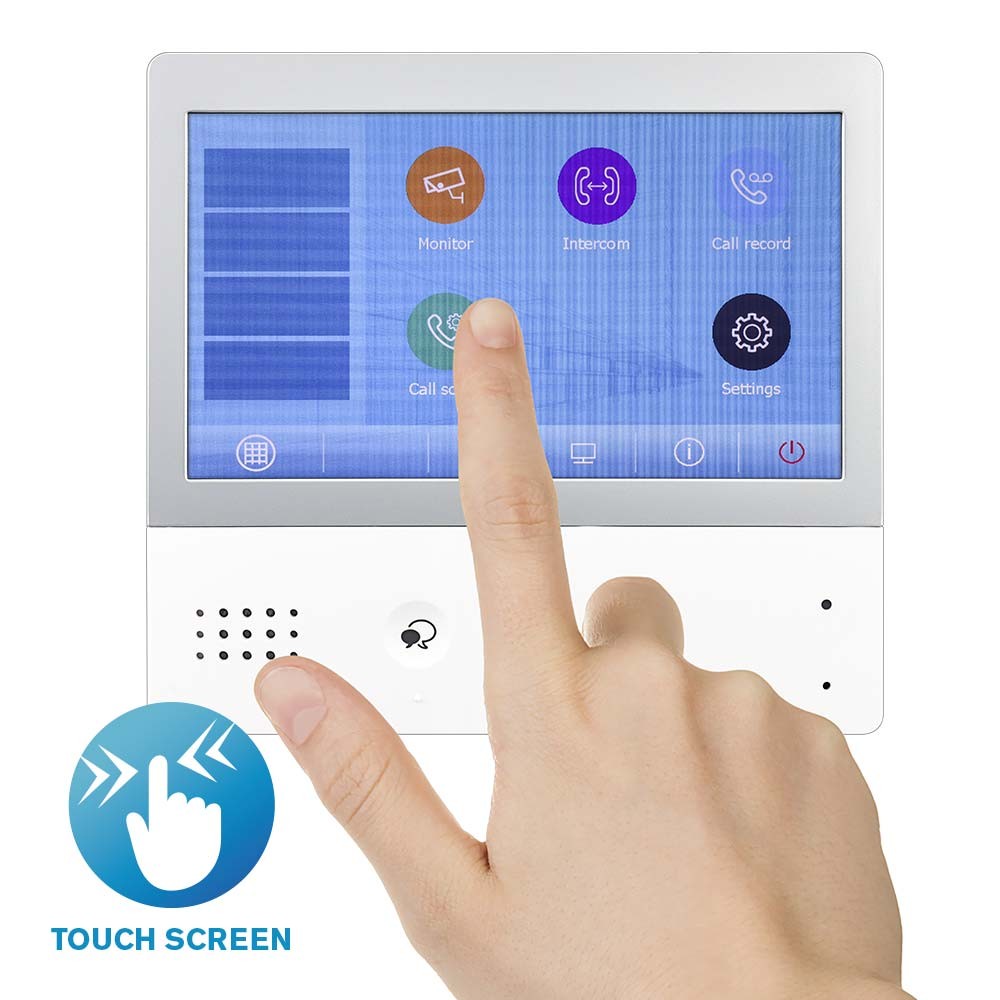

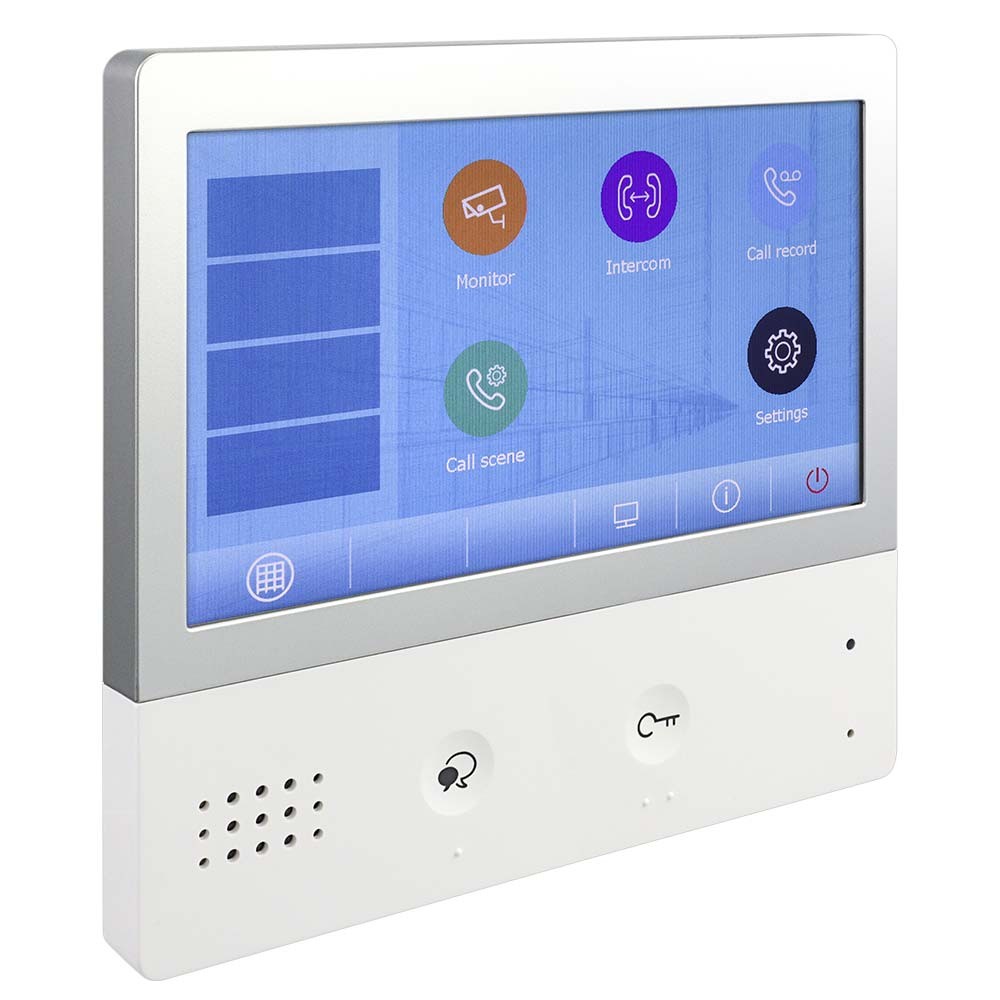

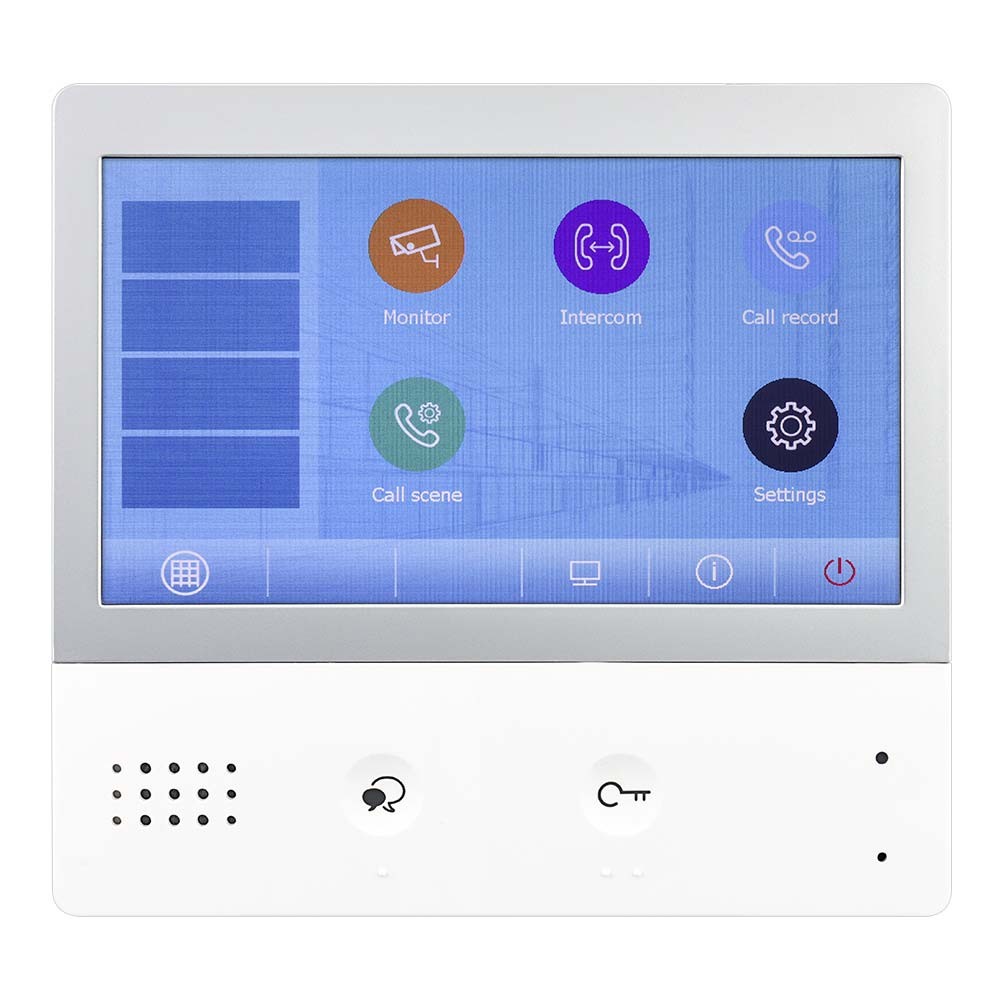

RSS IP-M7 - 7” Touch Screen Colour Monitor


  • For use with the Raytel IP Lite family of products
  • 7” Colour digital TFT Touch Screen display
  • Resolution 800 x 480
  • 1 RJ45 connector for power and data (PoE)
  • White with Silver display surround
  • Low profile Surface mount
  • Dedicated touch buttons for speech and lock
  • Video Self Start facility
  • Missed call information including snapshot of caller
  • Four user selectable favourites/short cuts
  • Power / Do Not Disturb Indicator
  • Intercommunication between enabled devices
  • Call divert to mobile device (if enabled and appropriate internet access is available)**


The RSS IP-M7 is a 7” colour Touch Screen monitor for use in conjunction with RSS IP Lite family of Door Entry products.

Touch Icons for:
  • Self Start Video
  • Intercommunication (if programmed)
  • Call record (missed calls, etc)
  • Call Scene (Do not disturb, divert, etc)
  • Settings (General user settings)
Installer/Manager modes are password protected

** For a single dwelling with one or more monitors and RSS IP Entrance Panel(s) a wired connection to the dwellings private internet will be required.

** For multiple dwellings a shared public, building wide wired internet connection will be required.

  • System : RSS IP Lite
  • Power : PoE (IEEE 802.3af Class 0)
  • LAN Interface : 10 Base T, 100 Base TX, RJ45
  • Display : Full colour TFT 154 x 86 mm
  • Controls : Dedicated touch button for speech and lock release, all other functions via touch button on screen menus
  • Dimensions : 161(H) x 174(W) x 22(D) mm

Additional Information

Manufacturer Raytel


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
