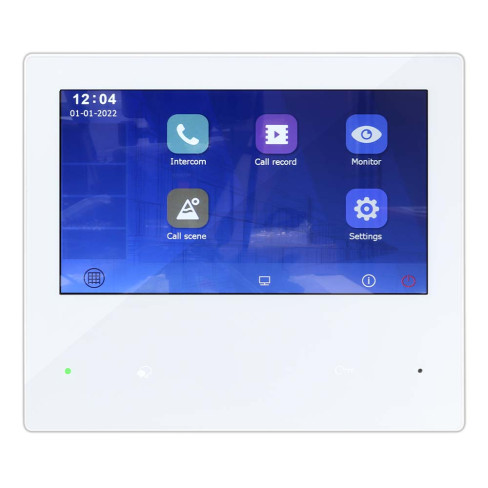

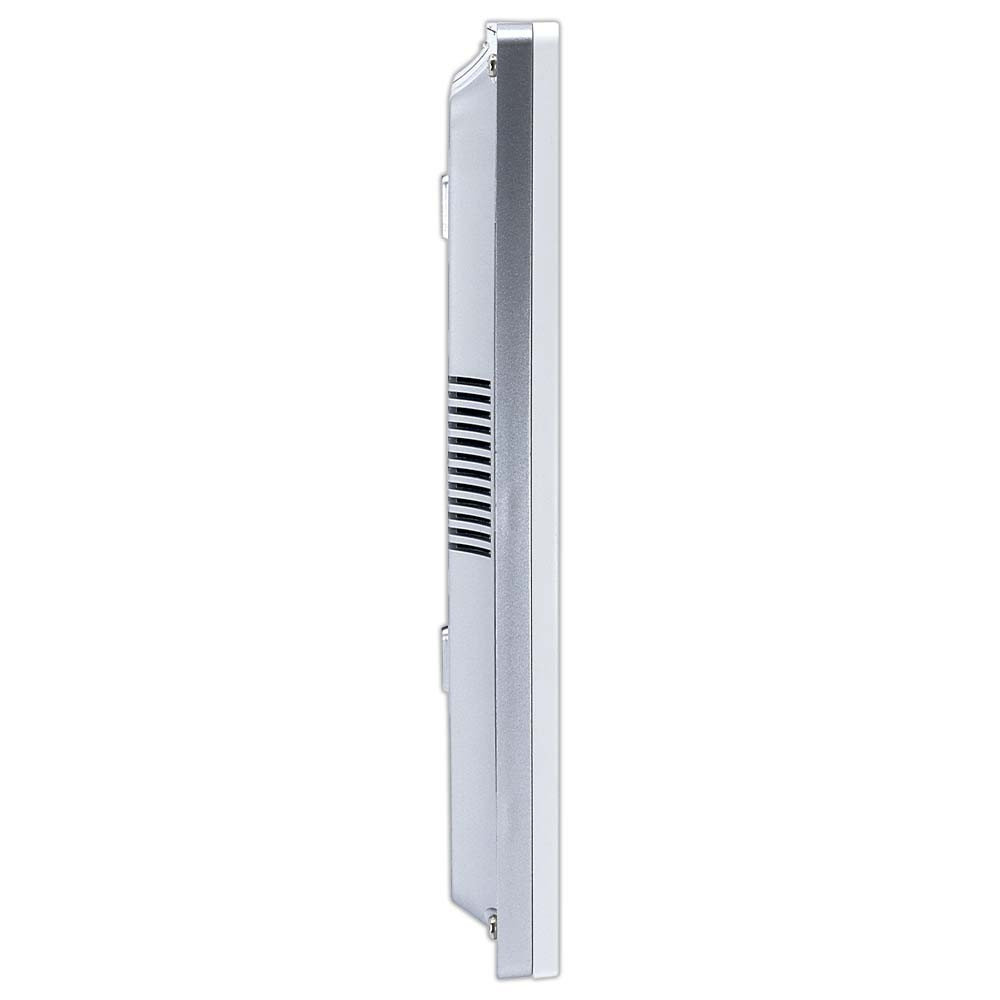

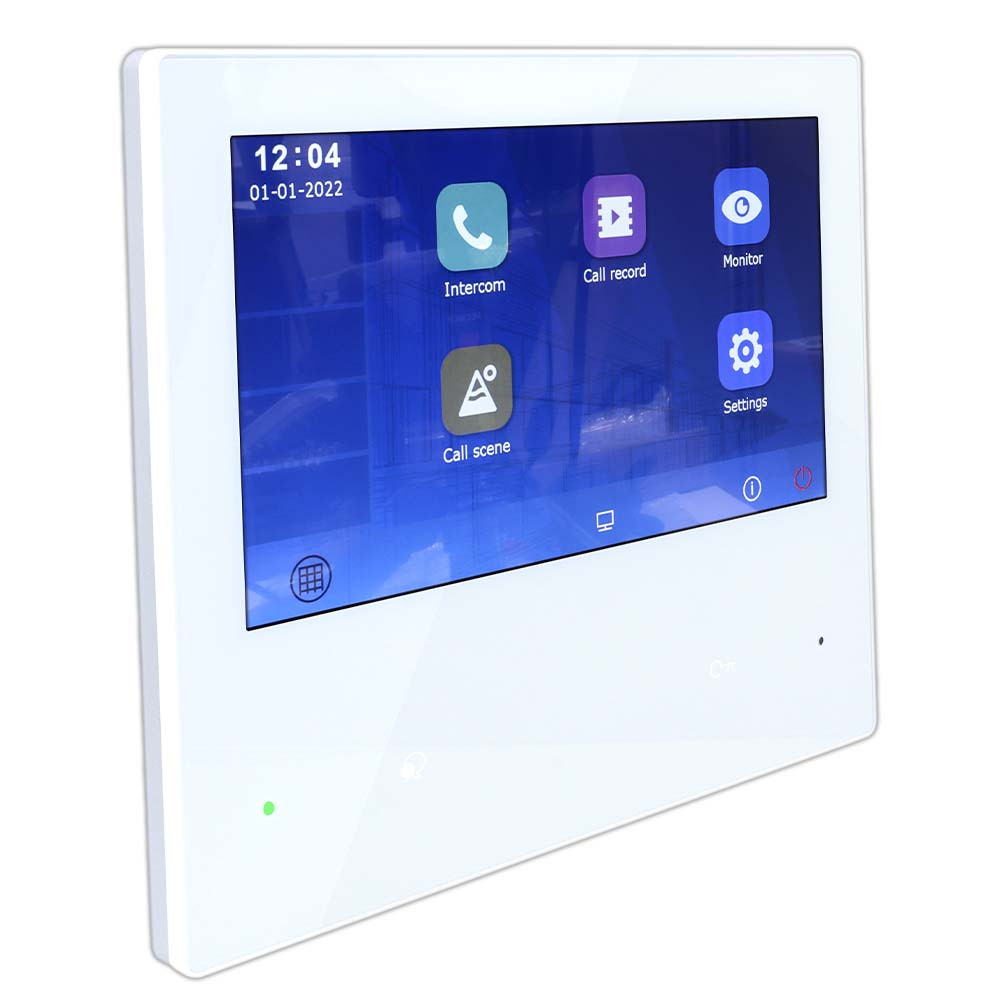

RSS IP-MW7 - 7” Monitor with WFi

Features

  • For use with the Raytel IP Lite family of products
  • 7” Colour digital TFT display
  • Resolution 800 x 480
  • 1x RJ45 connector for power and data (PoE)
  • White with Silver display surround
  • Low profile Surface mount
  • Dedicated touch buttons for speech and lock
  • Video Self Start facility
  • Missed call information including snapshot of caller
  • Four user selectable favourites/short cuts
  • Power / Do Not Disturb Indicator
  • Intercommunication between enabled devices
  • Call divert to mobile device (if enabled and appropriate internet access is available)**

Details

This is a 7” colour monitor for use in conjunction with RSS IP Lite family of products.

Touch buttons for:-
  • Answer call
  • Release lock
Touch icons for:-
  • Self Start Video from Entrance (if programmed)
  • Intercommunication (if programmed)
  • Call records
  • Call Scene (Do not disturb, divert to mobile)
  • Settings (General user settings)

Images from additional IP cameras can be displayed.

Installer/Manager modes are password protected

**Internet access is required for call diversion to mobile devices. This can be provided by local user WiFi or by wired connection from the Entrance Panel to an internet connected router.


  • System : RSS IP Lite
  • Power : PoE (IEEE 802.3af Class 0)
  • LAN Interface : 10 Base T, 100 Base TX, RJ45
  • Display : Full colour TFT 154 x 86 mm
  • Controls : Dedicated touch button for speech and lock release, all other functions via touch button on screen menus
  • Dimensions : 161(H) x 174(W) x 22(D) mm

Additional Information

Manufacturer Raytel
Part Numbers IP-MW7
