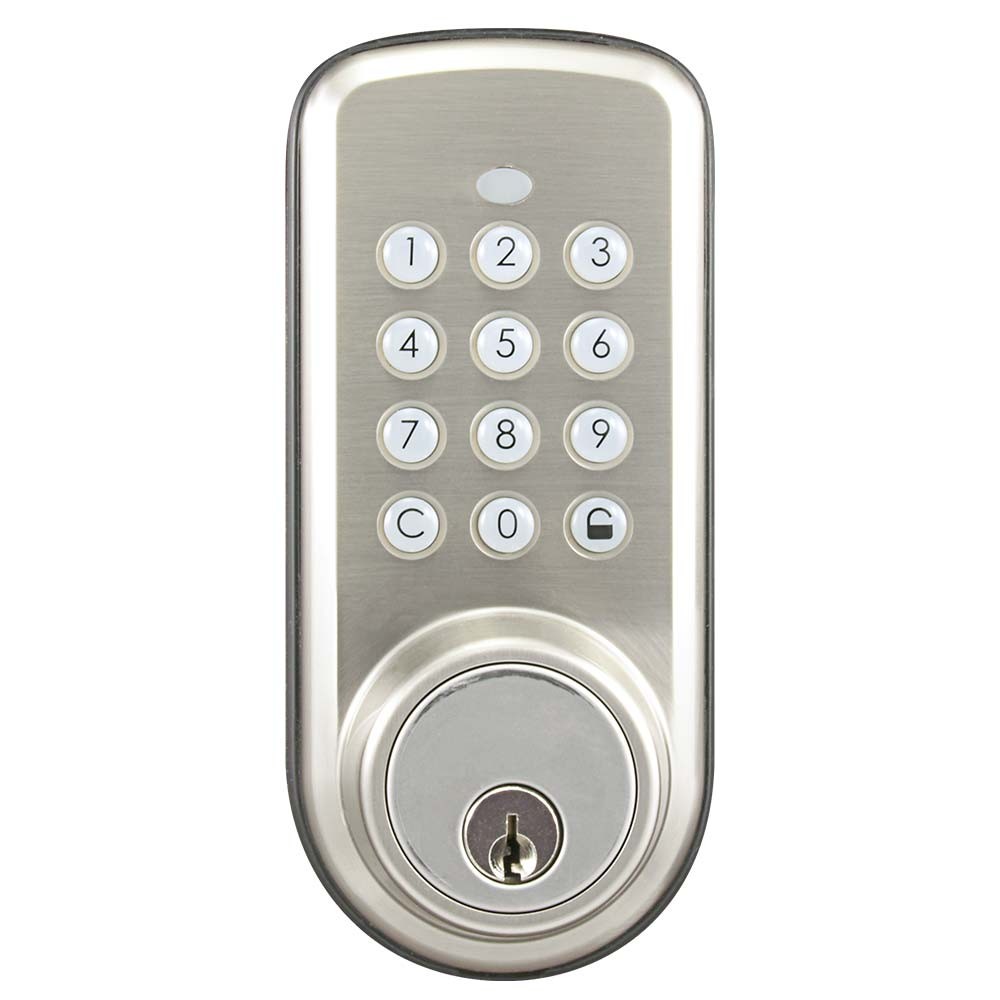

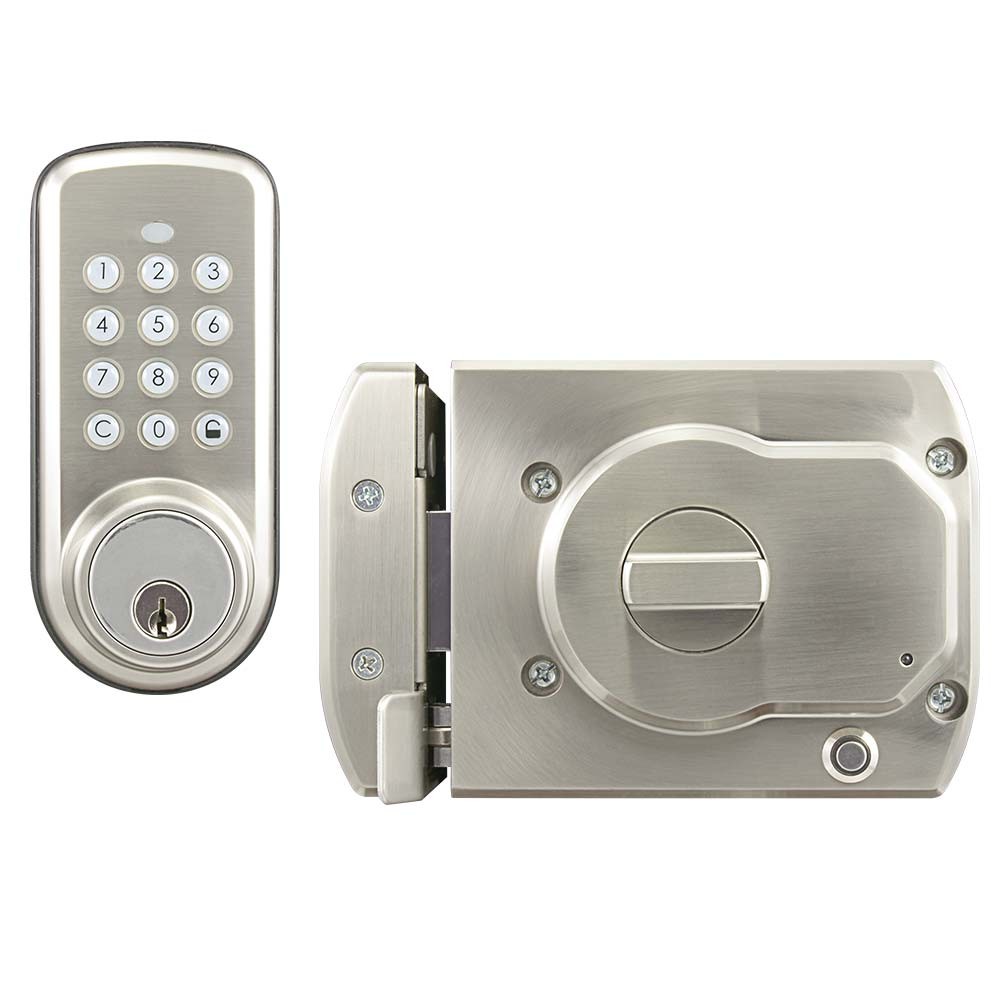

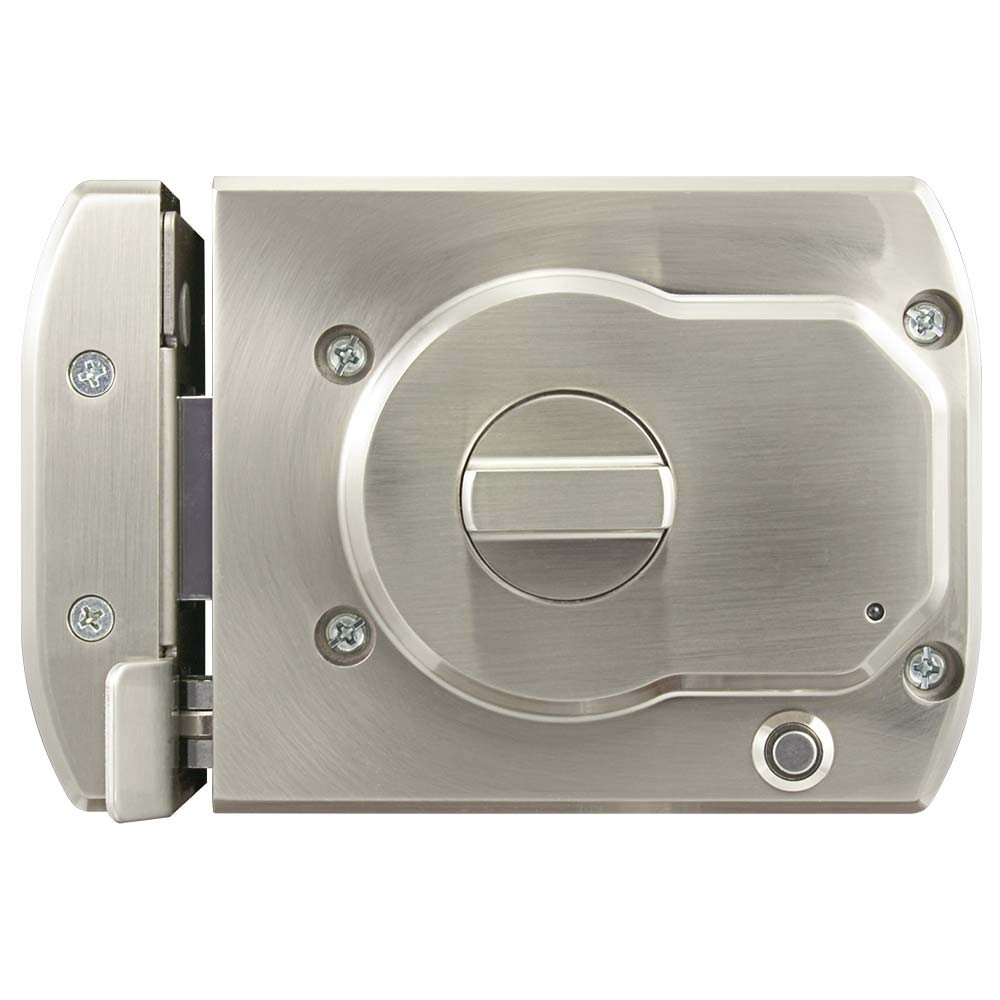

BT-Rimlock-K - Battery Powered Bluetooth Smart Rim Lock with Keypad

Features

  • Your smartphone can now be a 'smart eKey' for door access
  • Simply press the 'unlock' button when your eKey is in range
  • Use the free App to lock & unlock the door
  • Up to 5 active passcodes for non-smartphone applications
  • On touch to lock or enable the Auto-Lock function
  • Automatically lock the door behind you with an adjustable time setting from 0 to 99 seconds
  • Physical Key unlock and Key Fob unlock
  • Keypad buttons glow in the dark for night time visibility
  • Unique ID encryption - the eKey cannot be duplicated or transferred to other devices
  • Low battery notification for battery replacement
  • The admin 'Owner eKey' from the mobile App has full control over all eKeys
  • Up to 33 eKeys can be shared easily via QR Code scan or email
  • A Cloud version App is available for unlimited eKeys through QR Code scan or Cloud
  • All lock activities are recorded and can be traced through the App
  • Remote unlock is available from anywhere with the addition of a BT-Gateway unit

Details

The BT-Rimlock-K is an AA (x 4) battery operated 'smart' electric lock that is very easy to install and mobile App friendly.

This device can provide secure and convenient control of your residential and commercial office / warehouse doors. The BT-Rimlock-K not only allows you to unlock your RIM lock by a conventional metal key; it also provides a free advanced mobile App for secure App Unlock and sharing key and monitoring door activities log functions or simply using the Key Fob (optional item).

EZSmart App allows you to grant or revoke access to a third party’s smartphone by secure QR Code or email. This virtual ekey cannot be duplicated or transferred to other devices. With GPS function and correctly calibrating the EZSmart App, the App can identify indoor and outdoor areas. This will prevent accidentally unlock from "Near-Field unlock function".

The BT-Rimlock-K comes with advanced and easy to install ‘RIM lock replacement kits’ and a powerful free Mobile App (available from Apple AppStore and Google Play).

In addition, you can assign temporary authority for a guest to visit your house without giving them the real physical keys or secure 6 digits keypad passcodes.

  • Connectivity : Bluetooth 4.0, Bluetooth low energy
  • Working Frequency : ISM 2.402…2.480MHz
  • Effective Range : 5…10m (dependant on door thickness)
  • Energy Saving : Automatic power saving mode, low energy consumption
  • Battery Type : 4 x Alkaline AA batteries
  • Battery Life : Approximately 8,000 access times (up to 9 months)
  • Door Thickness : Fits 35…51mm
  • Backset : 60mm and 70mm
  • Latch : Adjustable Latch
  • Cylinder : 5 Pin Keyway
  • Power Consumption : Standby Average Current 40uA, Standby Peak Current 8mA
  • Compatible Devices : Supports Bluetooth 4.0 devices - either IOS 9.3 (or later) or Android 5.0 (and above)
  • Dimensions (H,W,D) / Weight :-
    Exterior: 138.5 x 61 x 27mm / 275g
    Interior: 132.5 x 111 x 50mm / 1420g
    Assembled unit: 215 x 200 x 108mm
  • Working Temperature : -10°C…45°C


BT-Rimlock-K Smart Bluetooth Lock battery replacement
