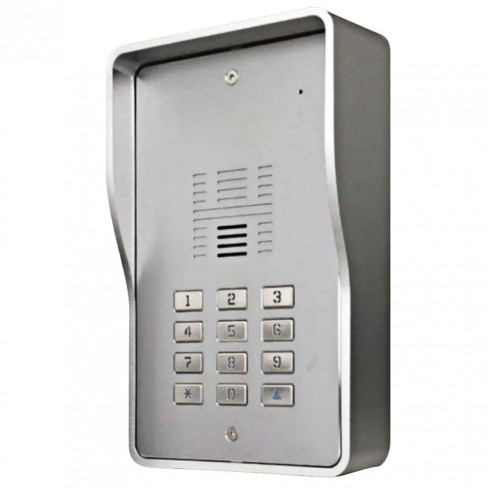

Raytel 200-MULTI - GSM Audio Door Entrance Panel and Access Controller

Features

  • For up to 200 apartments
  • Receive your intercom calls on your phone wherever you are
  • Open a gate or door lock from your phone
  • 384 user PIN codes access control
  • User selectable 1…14 digit PIN codes
  • Calls 3 numbers in sequence, mobiles or landline telephones
  • Up to 1150 user Caller ID access control
  • 2 relay outputs for optional easy control of the gate opener or alarm parts
  • Blue backlit keypad for easy night time operation, DDA friendly
  • Die cast aluminium vandal resistant design
  • Surface or flush mount styles
  • Installation and set-up are simple via (SMS, APP)
  • Check log via SMS/ Email
  • Available with 12V – 24V AC/DC input

Details

The Raytel 200-MULTI is a 3G wireless intercom Door Entrance Panel and Access Control unit.

Use the keypad to press the account number to dial for the specified user, the 3G network will make the call to designated tenant. It can also control the door entrance. You can also use the keypad to enter the password to unlock.

Home or office door entry control is made easy with the 3G digital GSM intercom system. The 3G intercom allows you to welcome, filter and control visitors to the home or office.

Use your 3G intercom system to remotely open or close entrances, (pedestrian gates, driveway gates, rising bollards, traffic barriers, garage doors, etc) Switch on heating, ventilation, air conditioning, pool or fountain pumps that can all be controlled from your land line handset or your mobile phone. You can activate external lighting to make access safer at night. The 3G signal gives you crystal clear digital two way audio communication.

Android & IOS APP available with Free Download

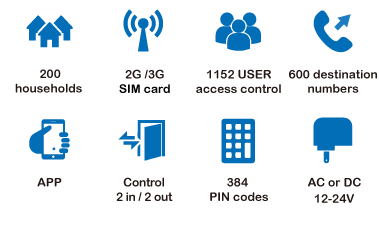

Raytel 200-MULTI Stand Out Features
  • Operating Voltage : 12 to 24 Volt AC/DC
  • Operating Current : Maximum 250 mA, Typically 55mA
  • GSM Frequency : 850/900/1800/1900 MHz
  • 3G Frequency : 850/900/1900/2100MHz
  • Physical size : Face plate: 180 x 109 mm
  • Stainless cabinet : 189(H)*118(W)*65(D) mm
  • Length of antenna : 3 metre cable
  • Humidity : Less than 80% RH
  • Operating Temperature : -20℃ to 50℃

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
