BT-Rimlock - Battery Powered Bluetooth Smart Rim Lock

Features

This product is no longer available - see bottom of page for new product

Your smartphone can now be a 'smart eKey' for door access
Simply press the 'unlock' button when your eKey is in range
Use the free App to lock & unlock the door
Smartphone, Key or Key Fob access options

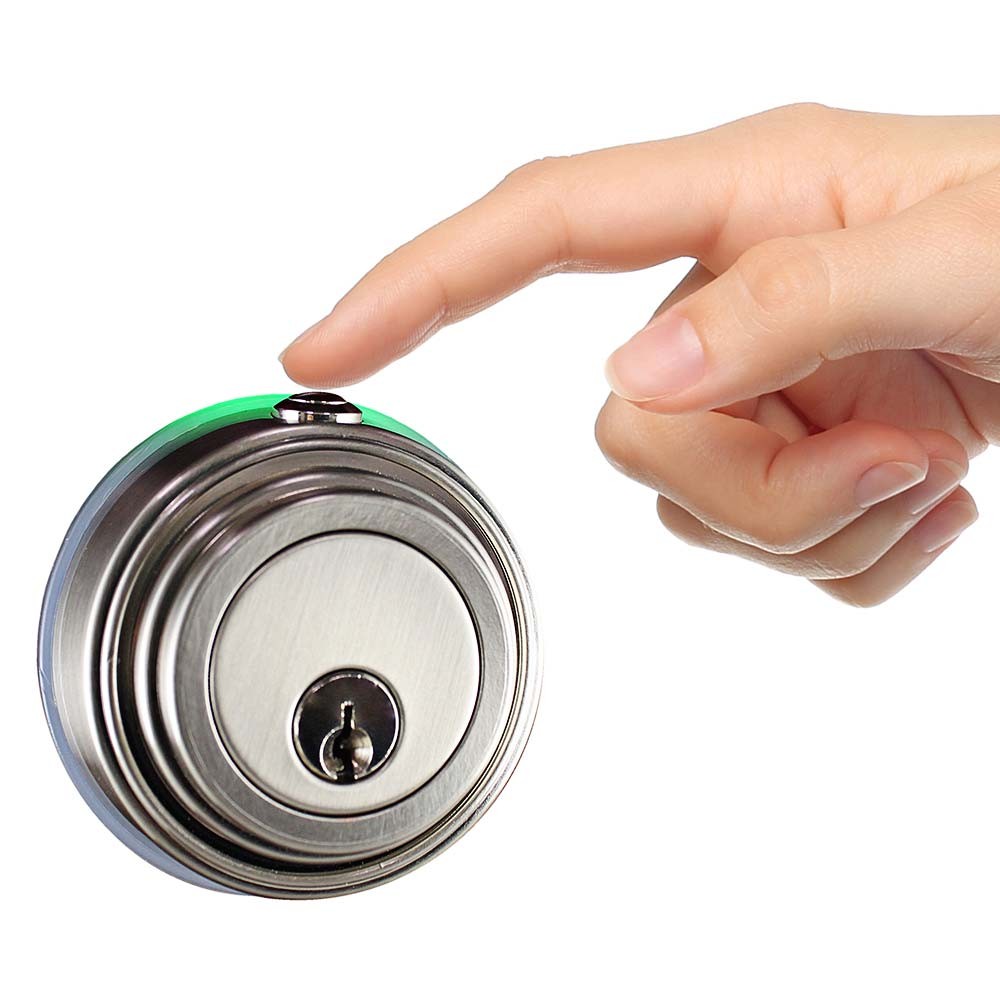

On touch to lock or enable the Auto-Lock function
Automatically lock the door behind you with an adjustable time setting from 0 to 99 seconds

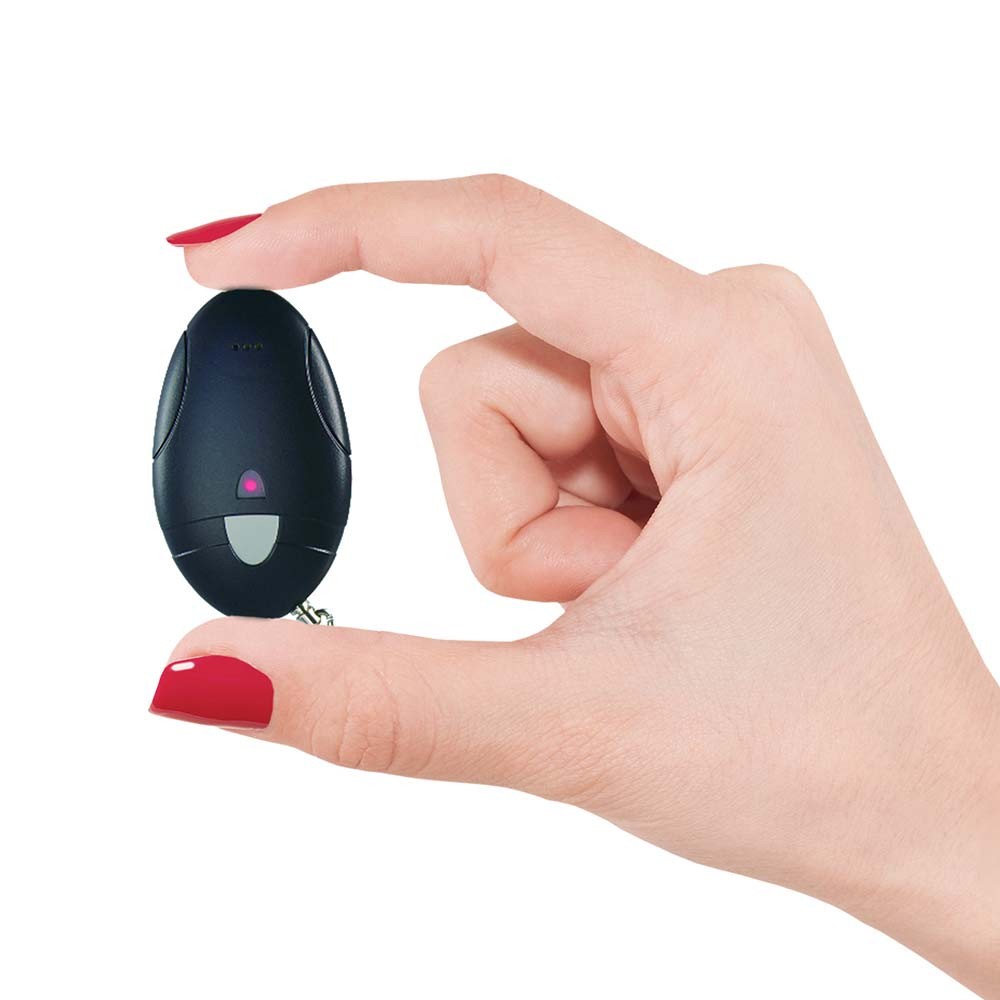

Physical Key unlock and Key Fob unlock available
LED Light Ring indicates operation status and night time visibility
Unique ID encryption - the eKey cannot be duplicated or transferred to other devices
Low battery notification for battery replacement
The admin 'Owner eKey' from the mobile App has full control over all eKeys
Up to 33 eKeys can be shared easily via QR Code scan or email
A Cloud version App is available for unlimited eKeys through QR Code scan or Cloud
All lock activities are recorded and can be traced through the App
Remote unlock is available from anywhere with the addition of a BT-Gateway unit

- | Add to Compare

Details

This product is no longer available - see bottom of page for new product

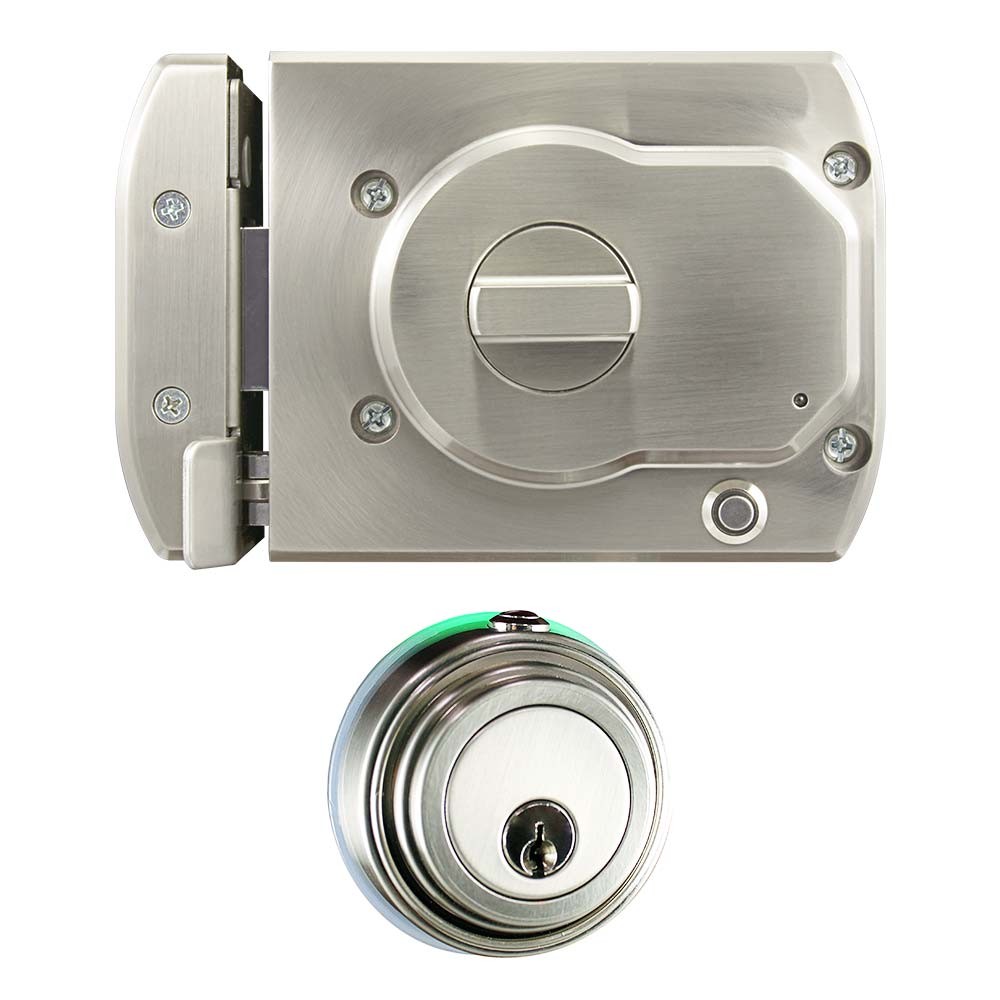

The BT-Rimlock is an AA (x 4) battery operated 'smart' electric lock that is very easy to install and mobile App friendly.

This device can provide secure and convenient control of your residential and commercial office / warehouse doors. The BT-Rimlock not only allows you to unlock your RIM lock by a conventional metal key; it also provides a free advanced mobile App for secure App Unlock and sharing key and monitoring door activities log functions or simply using the Key Fob (optional item).

EZSmart App allows you to grant or revoke access to a third party’s smartphone by secure QR Code or email. This virtual ekey cannot be duplicated or transferred to other devices. With GPS function and correctly calibrating the EZSmart App, the App can identify indoor and outdoor areas. This will prevent accidentally unlock from "Near-Field unlock function".

The BT-Rimlock comes with advanced and easy to install ‘RIM lock replacement kits’ and a powerful free Mobile App (available from Apple AppStore and Google Play).

In addition, you can assign temporary authority for a guest to visit your house via the Mobile App without giving them the real physical keys.

Connectivity : Bluetooth 4.0, Bluetooth low energy
Working Frequency : ISM 2.402…2.480MHz
Effective Range : 5…10m (dependant on door thickness)
Energy Saving : Automatic power saving mode, low energy consumption
Battery Type : 4 x Alkaline AA batteries
Battery Life : Approximately 8,000 access times (up to 9 months)
Door Thickness : Fits 35…51mm
Backset : 60mm and 70mm
Latch : Adjustable Latch
Cylinder : 5 Pin Keyway
Power Consumption : Standby Average Current 40uA, Standby Peak Current 8mA
Compatible Devices : Supports Bluetooth 4.0 devices - either IOS 9.3 (or later) or Android 5.0 (and above)
Dimensions (H,W,D) / Weight :-

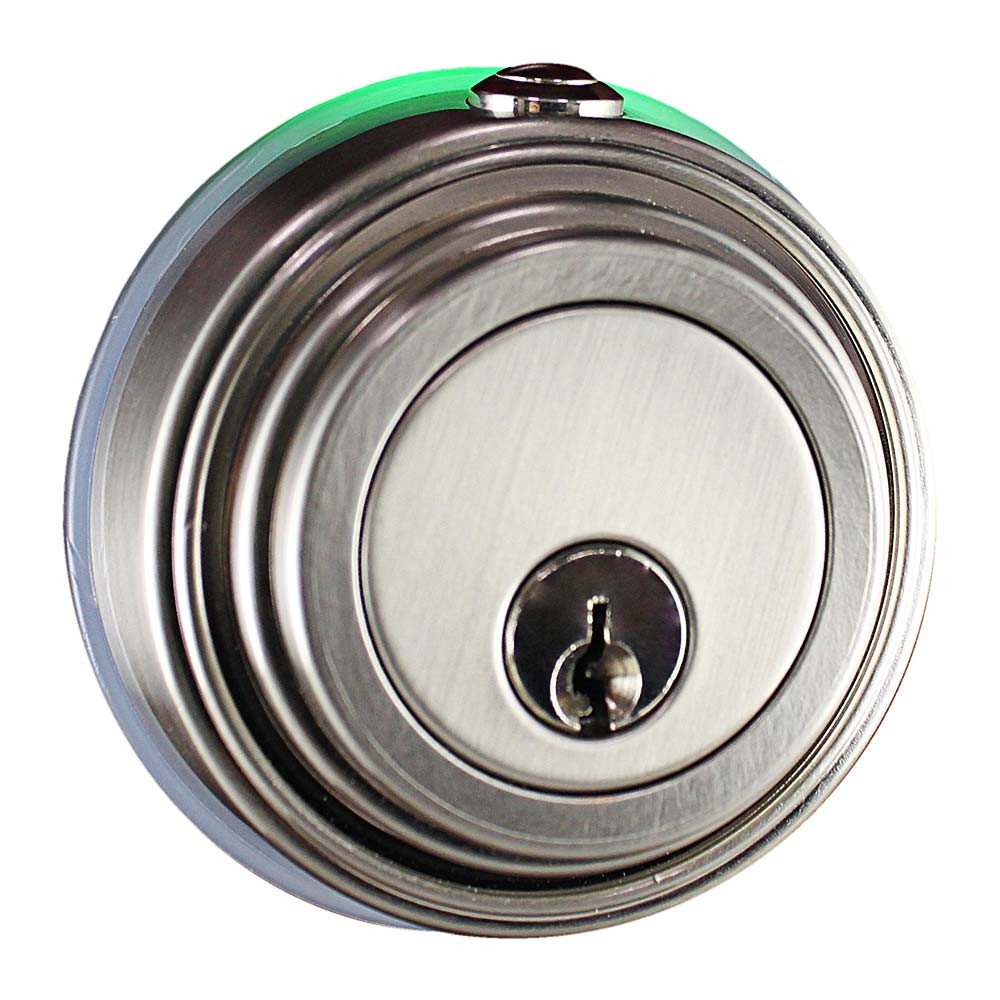

Exterior: Ø66 x 25mm / 195g

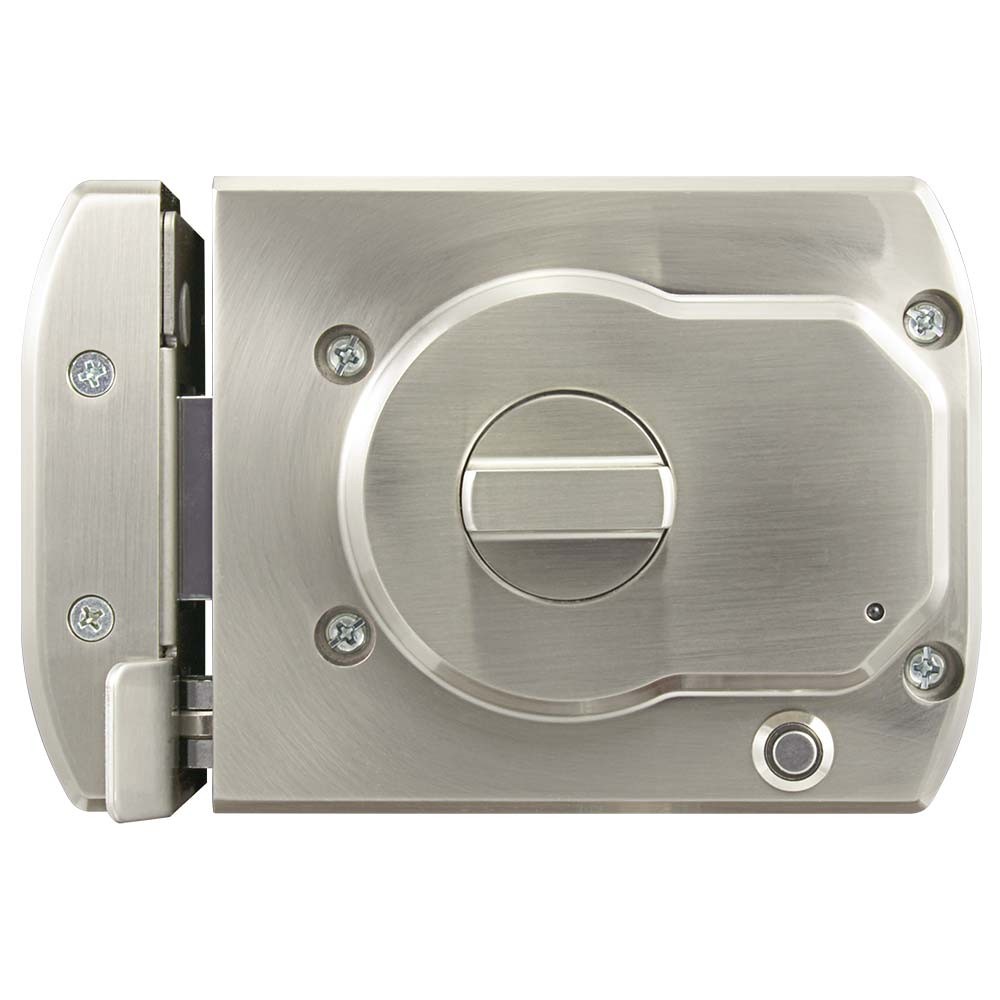

Interior: 132.5 x 111 x 50mm / 1420g
Assembled unit: 215 x 200 x 108mm
Working Temperature : -10°C…45°C

BT-Rimlock-K Smart Bluetooth Lock battery replacement

Additional Information

Manufacturer	Other
Part Numbers	N/A
