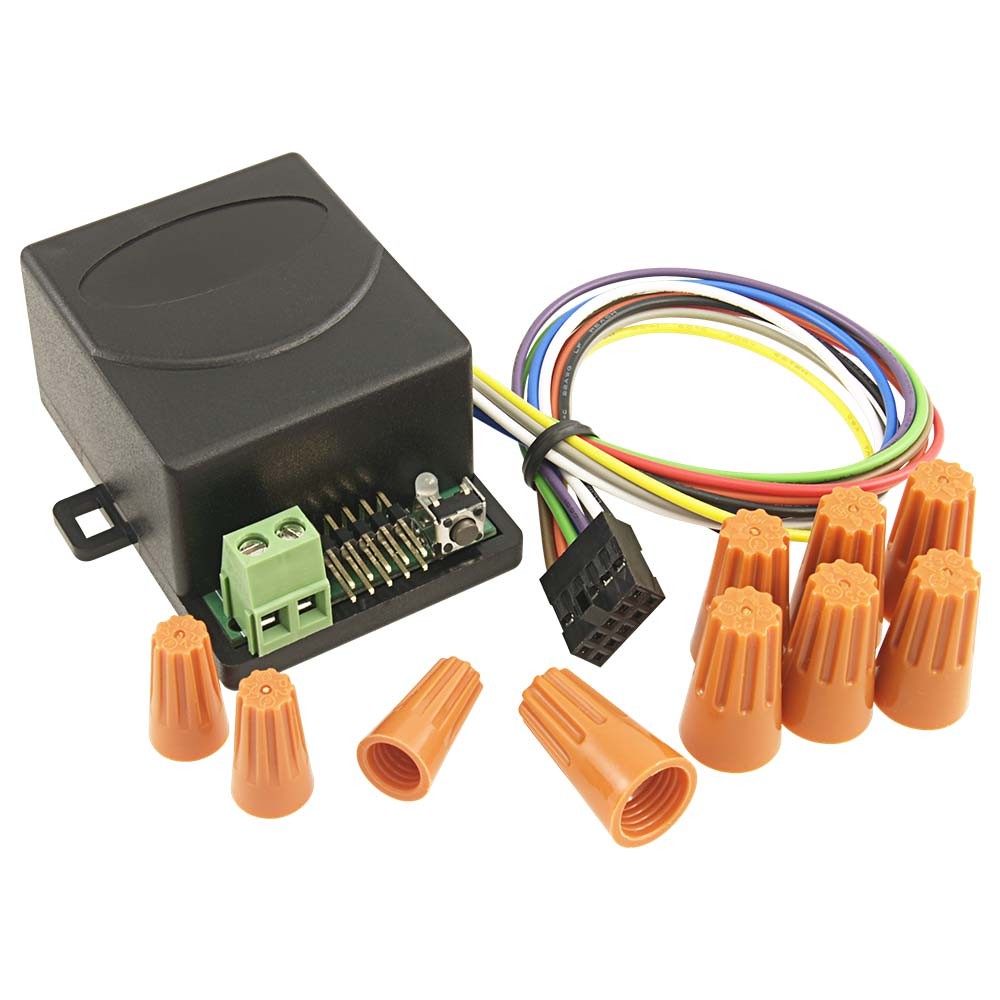

BT-GateMod - Bluetooth Device for Gate Access Control System

This product is no longer available - see bottom of page for new product

The BT-GateMod is a Bluetooth Device for the conversion of new or existing gate or door applications to remote control with a host of additional security features.

This device can provide secure and convenient control of your residential or commercial gates or doors. A free advanced mobile App is available for secure App Unlock, sharing eKeys, monitoring door activities and log functions or simply use the Key Fob (optional item).

EZSmart App allows you to grant or revoke access to a third party’s smartphone by secure QR Code or email. This virtual ekey cannot be duplicated or transferred to other devices. With GPS function and correctly calibrating the EZSmart App, the App can identify indoor and outdoor areas. This will prevent accidentally unlock from "Near-Field unlock function".

The BT-Rimlock comes with advanced and easy to install ‘RIM lock replacement kits’ and a powerful free Mobile App (available from Apple AppStore and Google Play).

In addition, you can assign temporary authority for a guest to access your property via the Mobile App without giving them the real physical keys.

• Connectivity : Bluetooth 4.0, Bluetooth low energy
• Working Frequency : ISM 2.402…2.480MHz
• Effective Range : 10…20m
• Energy Saving : Automatic power saving mode, low energy consumption
• Operation Voltage : 12…24V AC/DC
• Operation Current : Start 8mA, Standby 4mA
• Compatible Devices : Supports Bluetooth 4.0 devices - either IOS 9.3 (or later) or Android 5.0 (and above)
• Dimensions (H,W,D) / Weight : 62 x 44 x 30mm / 30g
• Working Temperature : -10°C…45°C
• Signal Pin Assignment :-
  1. VAC + : Input
  2. VAC – : Input
  3. Ground
  4. V + : Input 5. DO : output (V+/V–)
  6. DI-PB : Exit Door button input
  7. Sin : Door Position sensor input
  8. NO : Extra Relay output port (dry contact)
  9. NC : Extra Relay output port (dry contact)
  10. COM : Extra Relay output port (dry contact)
