More Views

BT-RimWired - Bluetooth Smart Rimlock


  • Your smartphone can now be a 'smart eKey' for door access
  • Simply approach the door to unlock it when your eKey is in range
  • Use the free App to lock & unlock the door
  • Smartphone, Key or Key Fob access options
  • Indoor / Outdoor detection
  • Automatically lock the door behind you with an adjustable time setting from 0 to 99 seconds
  • Physical Key unlock and Key Fob unlock available
  • Unique ID encryption - the eKey cannot be duplicated or transferred to other devices
  • The admin 'Owner eKey' from the mobile App has full control over all eKeys
  • Up to 33 eKeys can be shared easily via QR Code scan or email
  • A Cloud version App is available for unlimited eKeys through QR Code scan or Cloud
  • All lock activities are recorded and can be traced through the App
  • Remote unlock is available from anywhere with the addition of a BT-Gateway unit

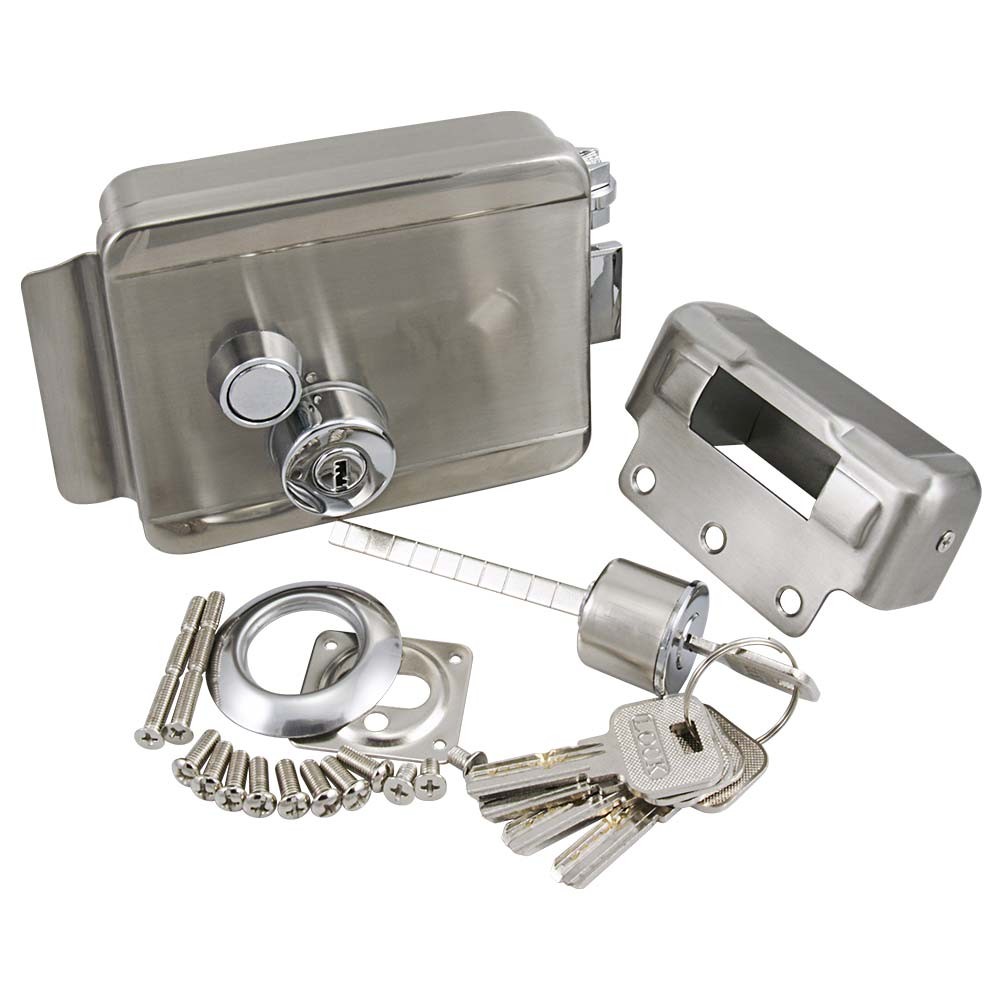

BT-RimWired Bluetooth Smart Rimlock The BT-RimWired Bluetooth Smart Rimlock is a secure, convenient and durable Rimlock for any entrance door.

This device can provide secure and convenient control of your residential and commercial office / warehouse doors. The BT-RimWired not only allows you to unlock your RIM lock by a conventional metal key; it also provides a free advanced mobile App for secure App Unlock and sharing key and monitoring door activities log functions or simply using the Key Fob (optional item).

EZSmart App allows you to grant or revoke access to a third party’s smartphone by secure QR Code or email. This virtual ekey cannot be duplicated or transferred to other devices. With GPS function and correctly calibrating the EZSmart App, the App can identify indoor and outdoor areas. This will prevent accidentally unlock from "Near-Field unlock function".

In addition, you can assign temporary authority for a guest to visit your house via the Mobile App without giving them the real physical keys.

  • Connectivity : Bluetooth 4.0, Bluetooth low energy
  • Working Frequency : ISM 2.402…2.480MHz
  • Effective Range : 5…10m (dependant on door thickness and material)
  • Energy Saving : Automatic power saving mode, low energy consumption
  • Voltage Range : +12V DC ±20%
  • Current : 1A
  • Door Thickness : Fits 35…51mm
  • Backset : 60mm and 70mm
  • Latch : Adjustable Latch
  • Power Consumption : Standby Average Current 40uA, Standby Peak Current 8mA
  • Compatible Devices : Supports Bluetooth 4.0 devices - either IOS 9.3 (or later) or Android 5.0 (and above)
  • Dimensions (H,W,D) / Weight :-
    Interior: 125 x 98 x 36mm / 1300g
    Assembled unit: 170 x 180 x 87mm / 1420g
  • Working Temperature : -10°C…45°C


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
