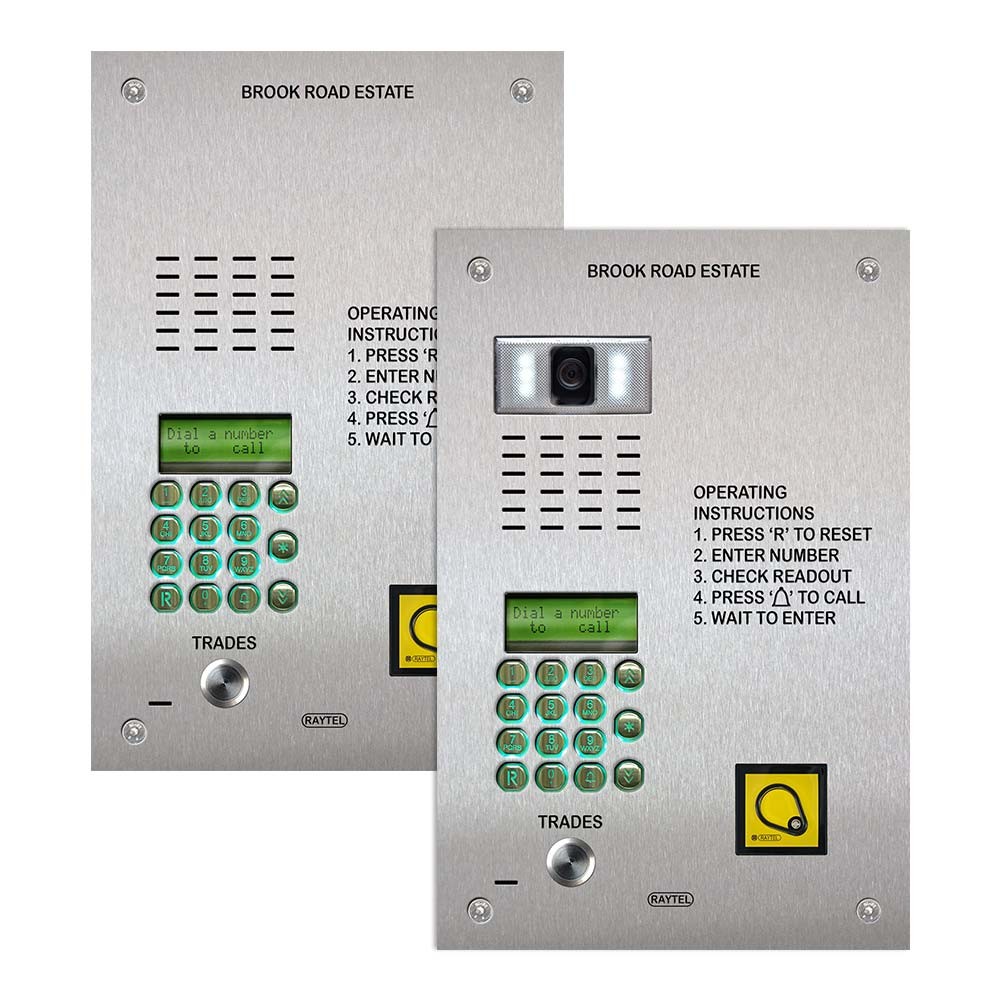

Raytel Spartan D-Type - Vandal Resistant Audio / Video Door Entrance Panels - 2-Wire

Features

  • Vandal resistant external audio and video entrance panels
  • Stainless Steel 316 Marine Grade
  • Flush mounting, surface mounting and flange box options available
  • Digital Dial illuminated call buttons
  • Optional Proximity reader (AR-747HS-RAY)
  • Scrolling Phone directory
  • Built-in LCD Display with illumination
  • Optional Trades or Concierge Call buttons
  • DDA status LED’s available on request

Details

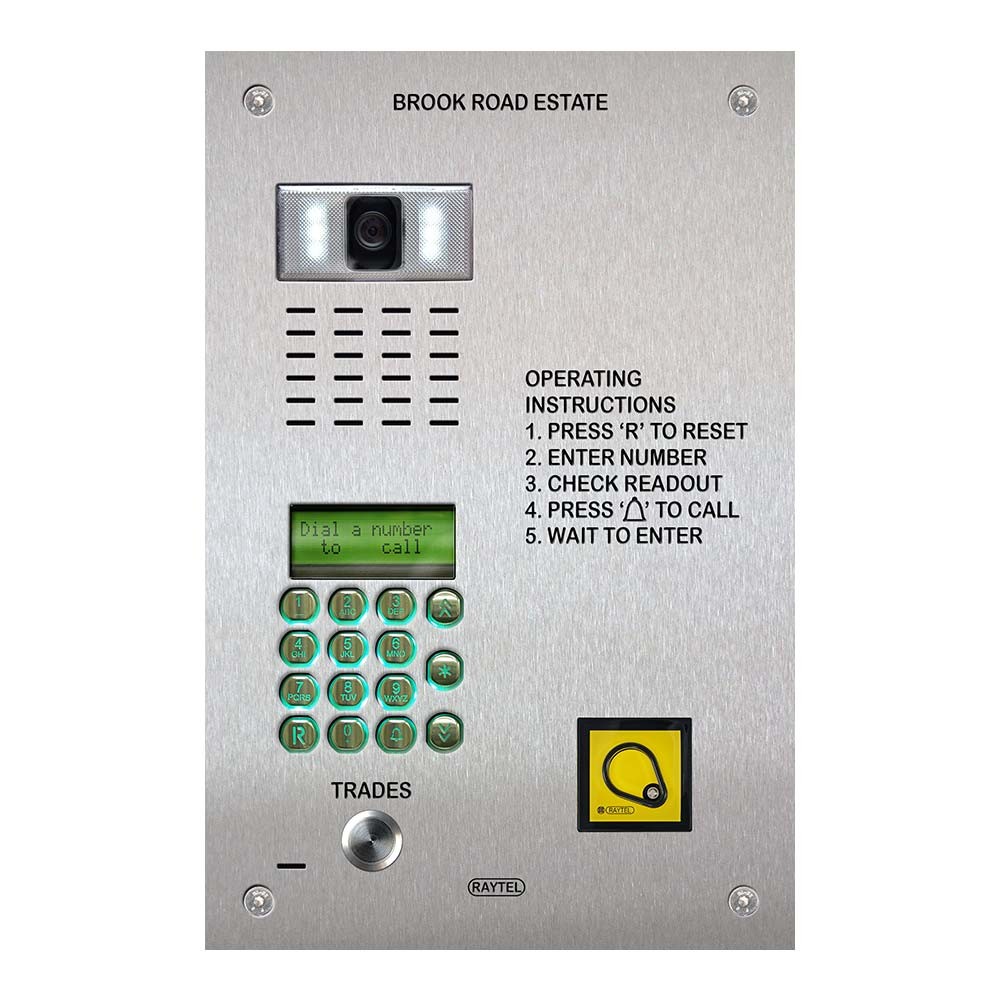

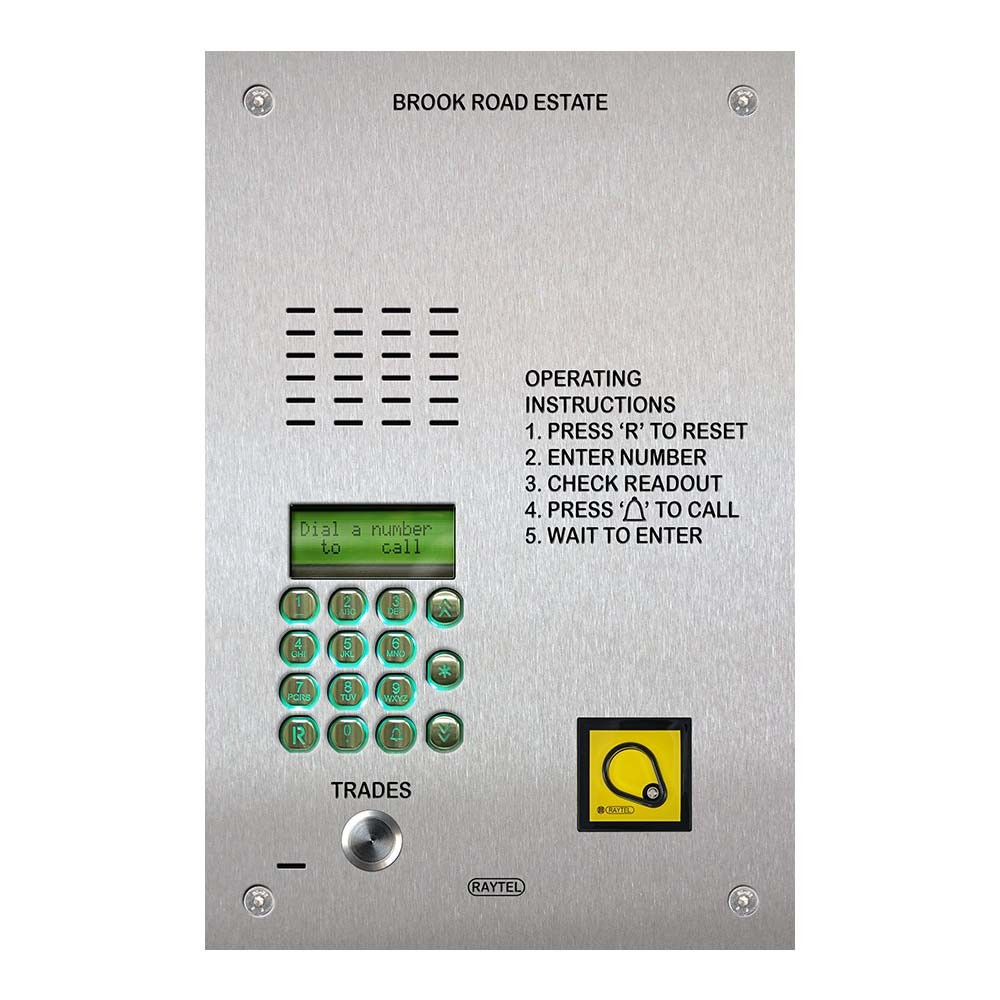

This Panel is available as SDA13A4/Y Audio and SDV13A7/Y Video versions.

The 13A4 and 13A7 Entrance Panel electronics are fully programmable via the keypad and display. An integral searchable directory allows for up to 2 names per internal unit.

Up to 1,000 individual lock codes can be enabled via the keypad to enable coded entry. The coded entry can also be time-constrained if required.

Full duplex speech is provided with volume level controls for audio in and audio out.

The Entrance Panel can be used to programme the identity of associated handsets or monitors for use with the Entrance Panel.

The Entrance Panel has 3 numbering configurations to enable natural, 4 digit and 8 digit numbering of dwellings.

The keypad and display are illuminated.

Specifications
  • System : 2 Wire
  • Finish : Brushed Stainless Steel
  • Speech Unit : Type 13A4
  • Speech : Full duplex
  • Dimensions : 320mm x 210mm
  • Back Box : 300mm x 190mm x 50mm
  • Call Buttons : Digital Dial Keypad
  • Lock Output : 12V DC
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
