AEB6 - Press-to-Exit Button

Features

Vandal resistant flush mounting (Surface mounting with additional backbox AEBBOX)
Domed exit button
Fits standard single socket backbox (supplied)
IP67 rated (from front only)
1 x Normally Open, 1 x normally closed isolated contacts

- | Add to Compare

Details

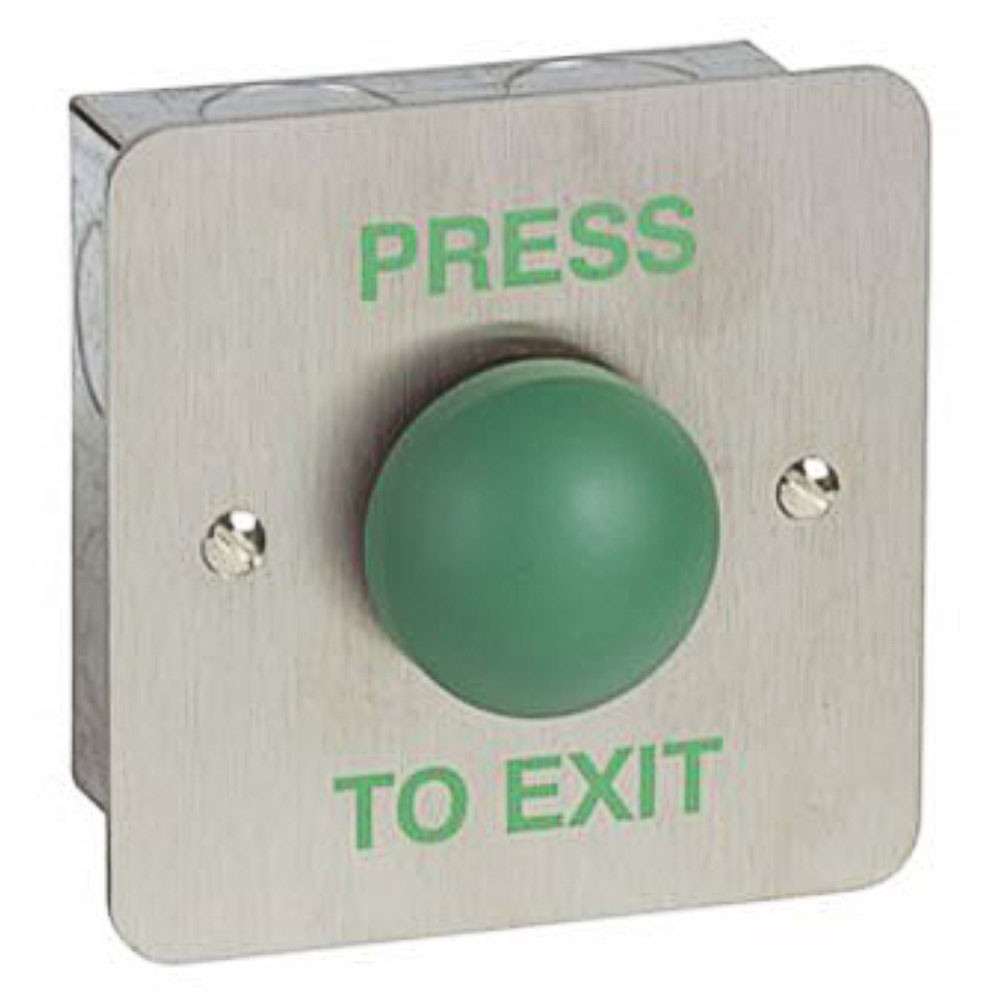

The AEB6 is a flush-mounted vandal-resistant Press-to-Exit button that is ideal for frequent use in situations where a degree of vandal resistance is required. Its large green-domed button (35mm diameter x 25mm deep) provides easy visual identification and ease of use.

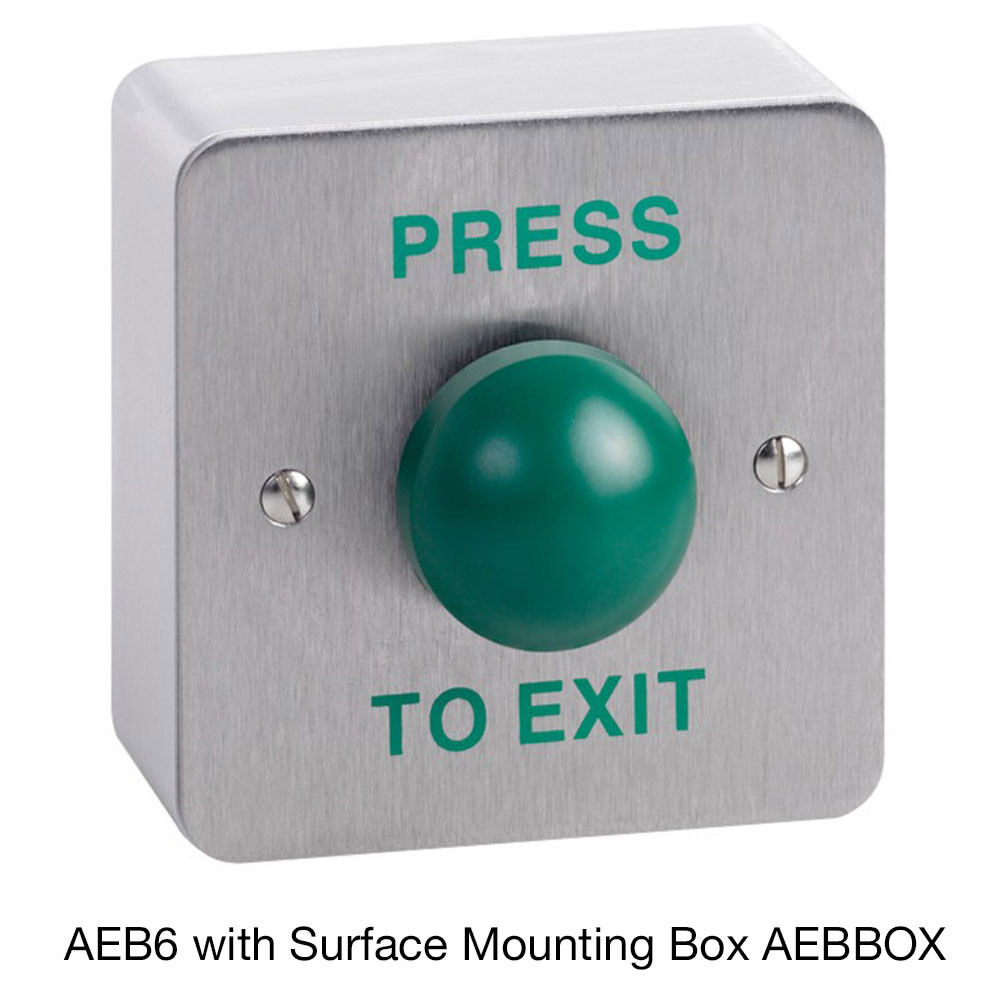

This AEB6 can be converted to a Surface Mounted button using the separately supplied backbox, type AEBBOX.

Finish Brushed Stainless Steel
Dimensions 84 x 84mm button protrudes 25mm from plate
Back Box 35mm depth
Contacts 1 x N/O, 1 x N/C (2A at12/24VDC)
Momentary operation
Indoor use only
Low voltage use only
For Surface Mounting use AEBBOX (sold separately)

Additional Information

Manufacturer	Other
Part Numbers	AEB6

Downloads

Files

AEB6 Data Sheet (83KB

Product Name / Options	Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation.	Email us for a Quote

Registration

More Views

AEB6 - Press-to-Exit Button

Features

Details

Additional Information

Downloads

Files

You may also be interested in the following product(s)

Soyal AR-888PBI Capacitive Press-to-Exit Button

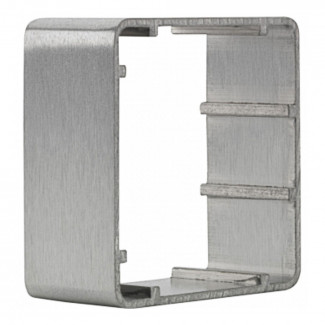

AEBBOX Surface Mounting Housing for AEB6 Press-to-Exit Button
