Raytel K99 Series - Single Door Access Controller


  • K99 - Vandal resistant Surface mount external Keypad (IP65)
  • K99i – Keypad module is only for mounting in Raytel Door Entry Panels
  • Brushed Stainless Steel / Zinc Alloy housing
  • Illuminated buttons with ‘Tactile’ 5 button
  • 12-24V AC/DC Supply
  • 99 user codes in 2 groups
  • Independent Lock and Auxilliary outputs - Timed or latching
  • Egress/Request to Exit Input
  • Door Monitoring function
  • Tamper output (Alarm)
  • Door forced open indication (Alarm)

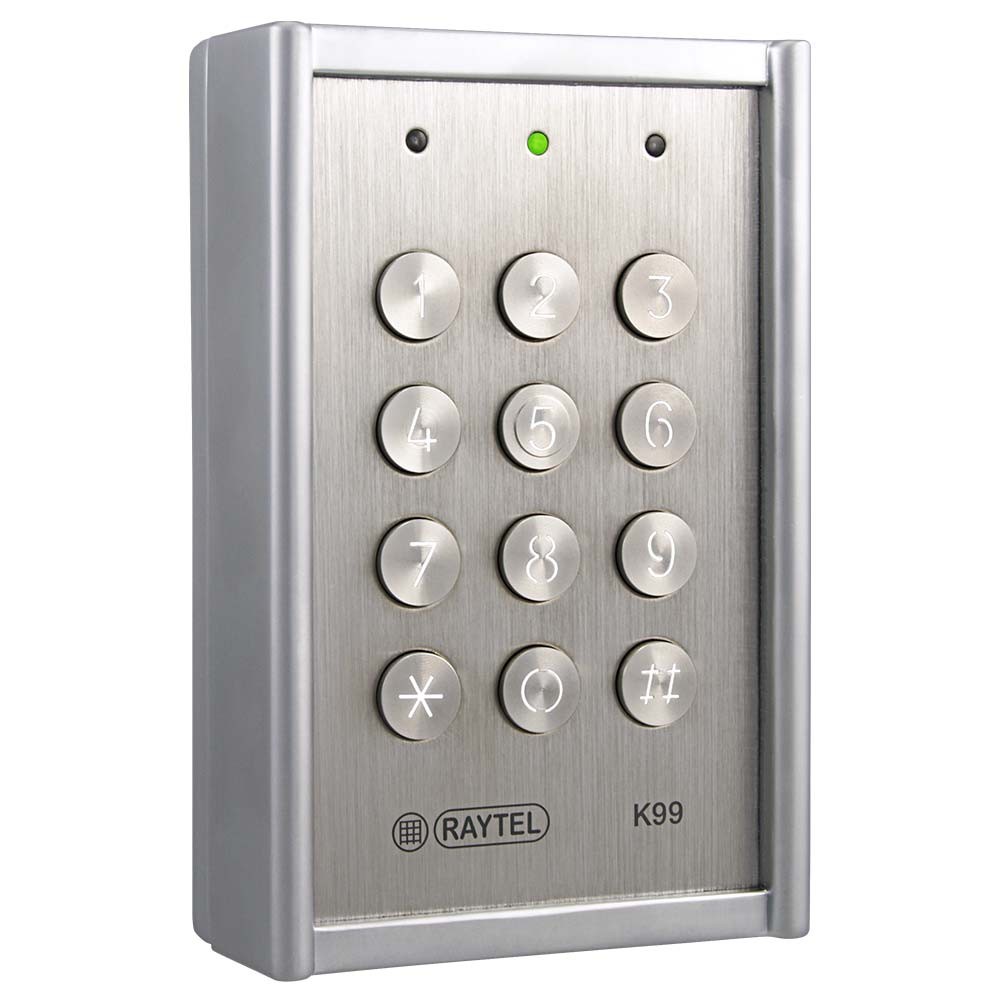

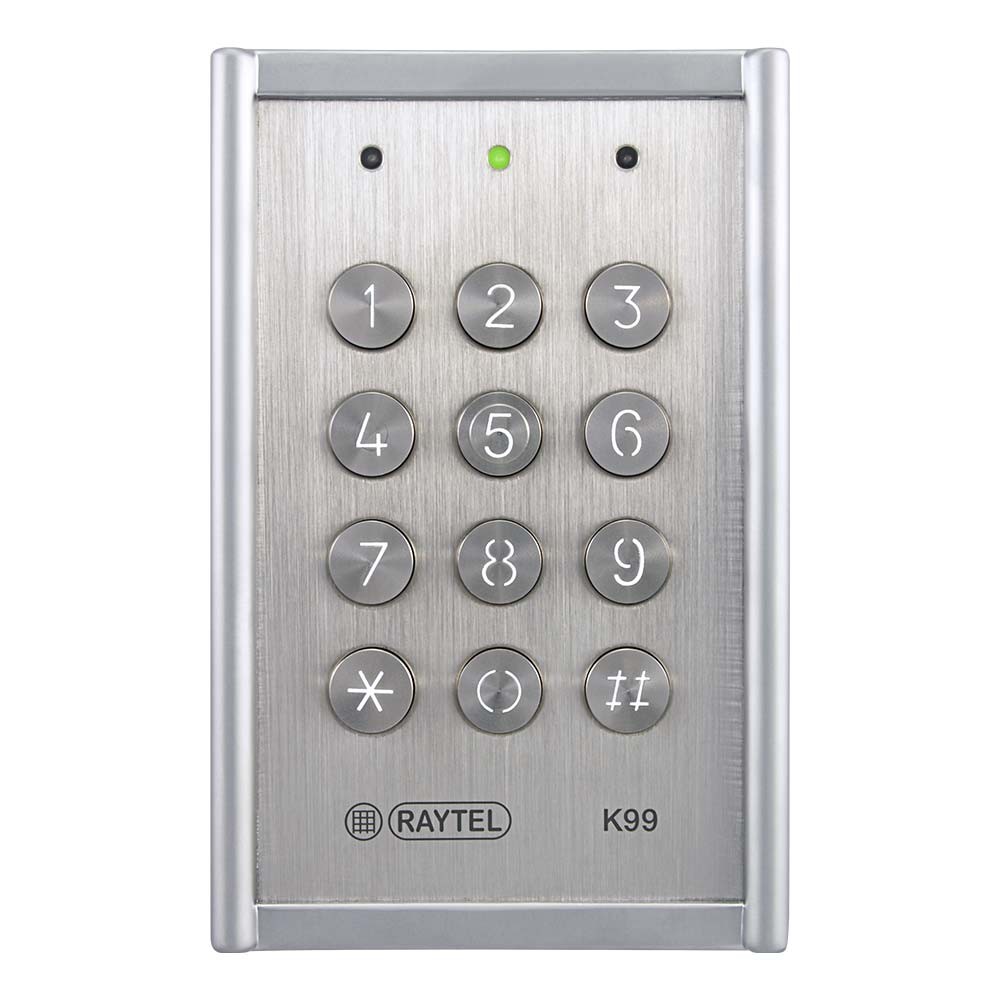

The K99 is an external surface mounting Stainless Steel keypad with illuminated buttons and rugged housing with an IP65 rating.

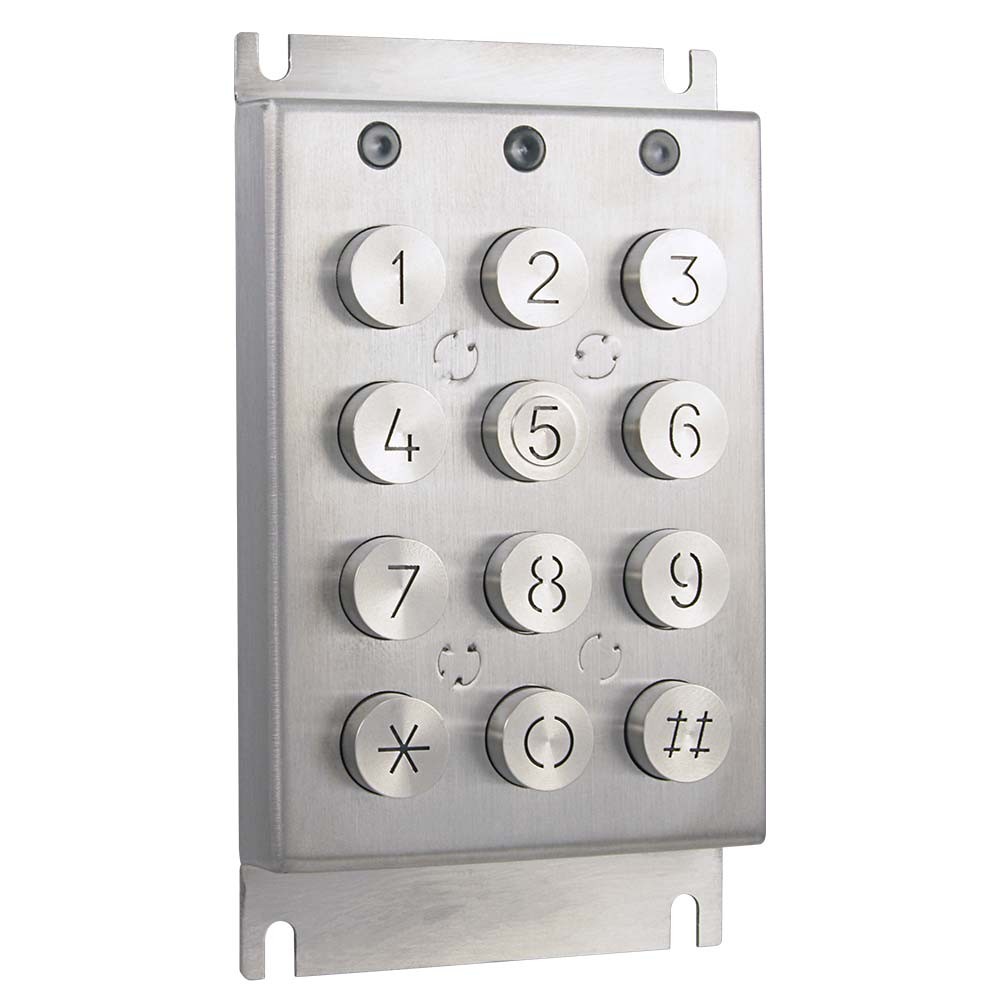

The K99i internal module is for mounting in Raytel Door Entry Panels.

These units can store up to 99 different codes. Programmable for 4-8 digits in 2 groups. There are 2 independent output relays. Both can be timed or latching.

Relay 1 is the default lock output relay operated via programmed user codes (codes 1-19).
Relay 2 is an auxiliary relay which can be configured as an additional output operated by a second set of user codes (codes 20-99) or it can be used for a number of additional functions such as an alarm output or a doorbell output.

For additional security, the Master access code for the keypad can be changed. The unit can operate both AC/DC power supply making it one of the most versatile keypads we have had in our range. The non-volatile memory ensures all codes are saved in the event of a power failure.

The K99 is suitable for most commercial and residential developments.

Additional Information

Manufacturer Raytel
Part Numbers N/A


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
