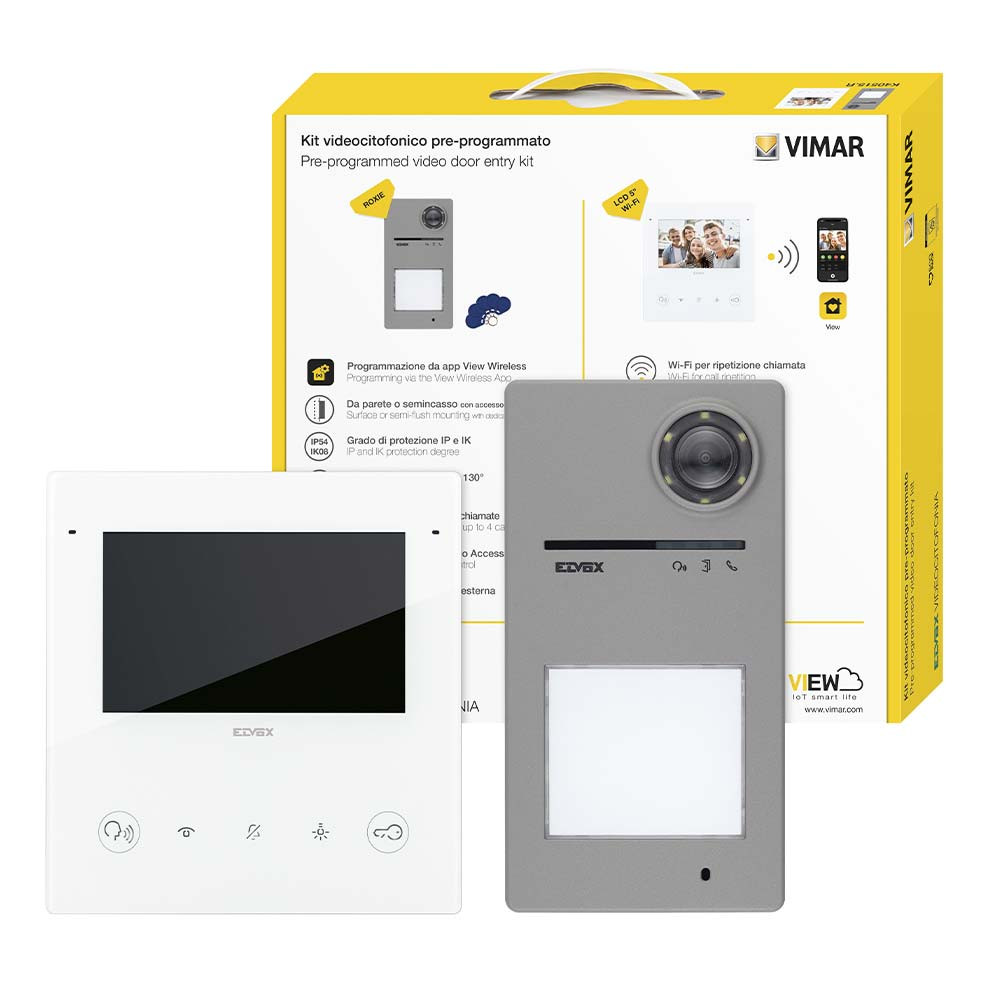

Elvox K40515.R Roxie Video Door Entry Kit - 1 Door Colour

Features

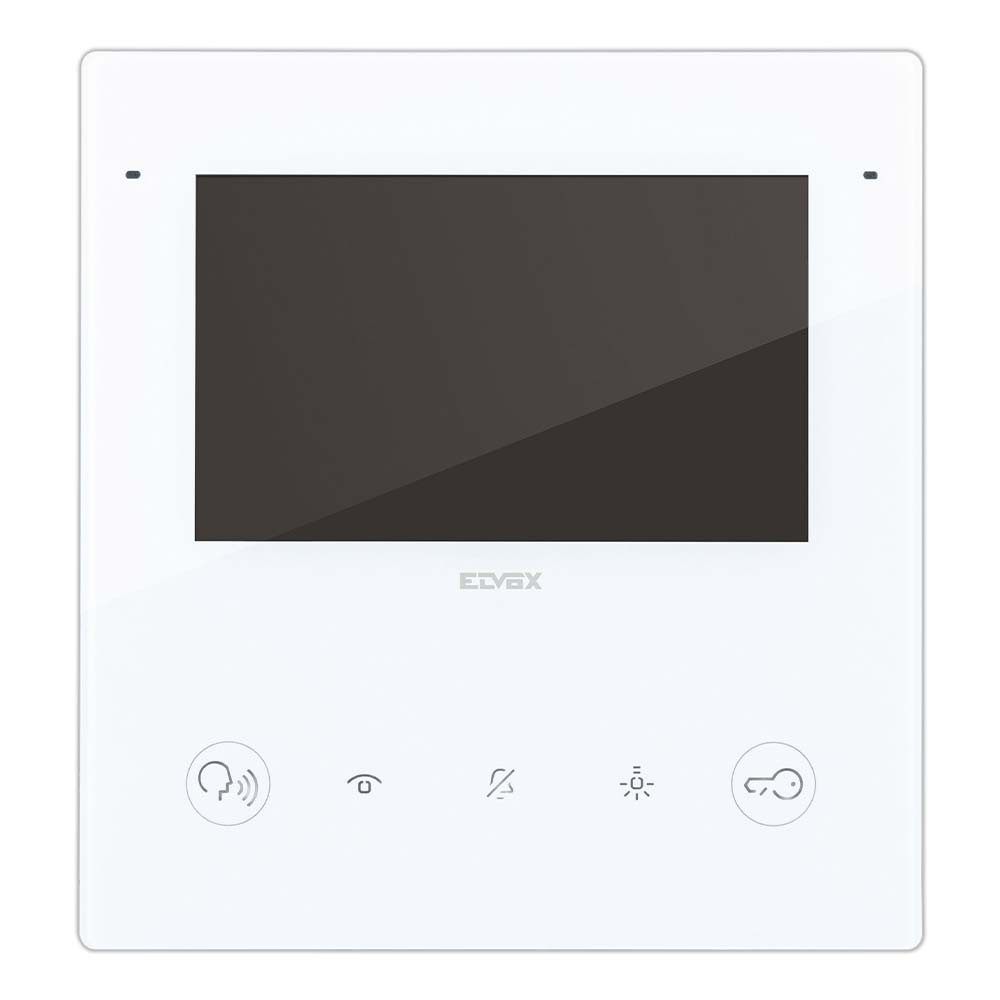

  • 1 x 40515 Tab5SUP Video monitor

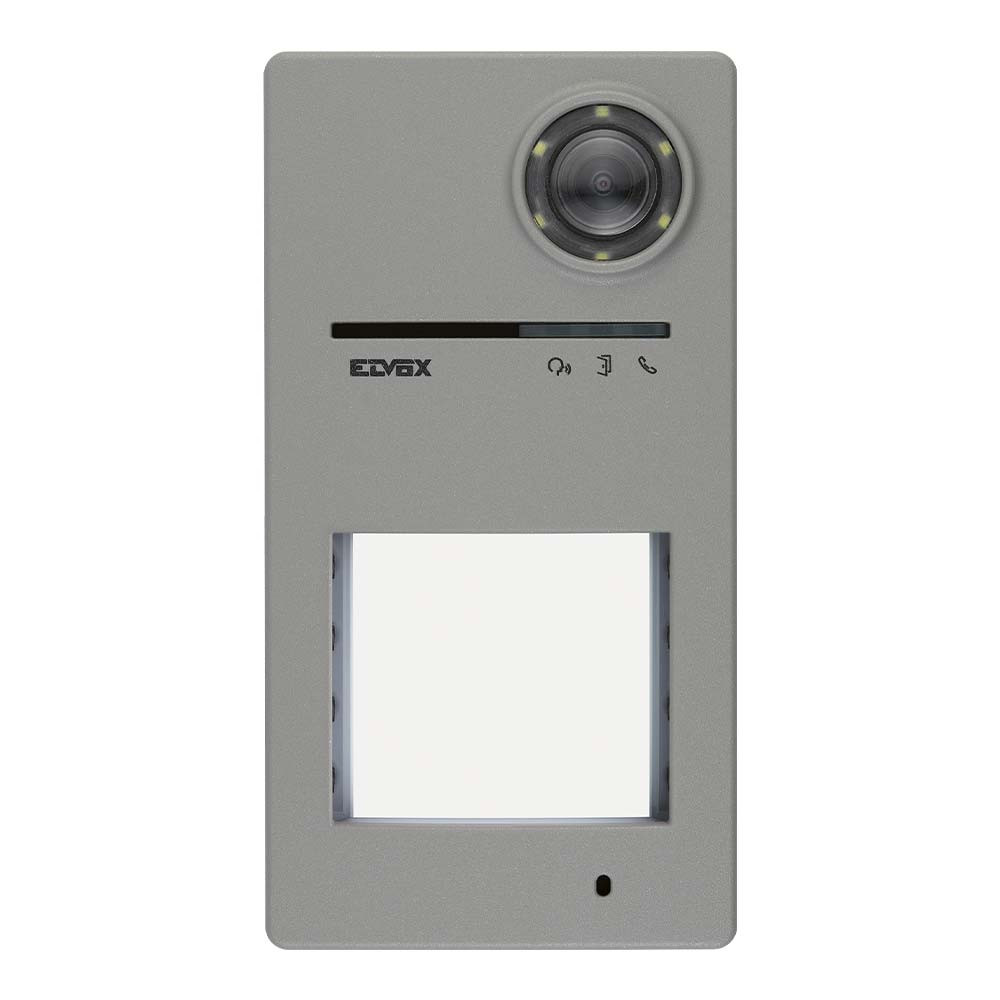

  • 1 x 40170 Roxie Entrance Panel assembly

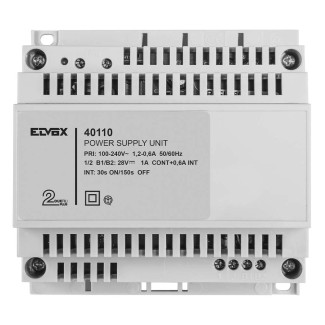

  • 1 x 40110 Power supply
  • Monitor can forward calls to mobile devices via the Vimar view App.
  • Surface mounted entrance panel with options for rain guard and semi-flush mounting
  • Surface mounted monitor with optional semi flush mounting
  • Call forwarding to mobile device from monitor
  • Audio annunciation at entrance panel
  • LED indication of call status at entrance panel

Details

This 2 wire kit combines the stylish Roxie Entrance Panel with the Tab5SUP monitor.

The entrance panel assembly has visual indicators and voice annunciation for ease of use.

The Entrance panel can call 1, 2 or 4 individual dwellings via simple re-configuration and a change of button cover.

The monitor has the ability to connect to local WiFi and in conjunction with the Vimar View App. can forward video calls to mobile devices. Once the Vimar View App. is installed on mobile devices the door entry system can be managed either via forwarded calls or by remote management via the App.

See links at bottom of page for additional information.

  • System : Vimar 2 Wire plus
  • Monitor : Capacitive touch keypad and screen with back lit symbols
  • Entrance Panel : Surface/semi flush mounted, back lit call button(s) IP54 Ingress protection, IK08 shock resistance
  • Power supply : Din rail or surface mount (mains connection required)
  • Dimensions :-
    Monitor : 148mm wide, 158mm high, 24.4mm deep (surface mount) 13.1mm deep (flush mount – using 40590 box)
    Entrance Panel : 100mm wide, 190mm high, 32.5mm deep
    Power supply : 96mm high, 142mm wide, 70mm deep

Additional Information

Manufacturer Vimar - Elvox
Part Numbers 40170, 40515, 40110
