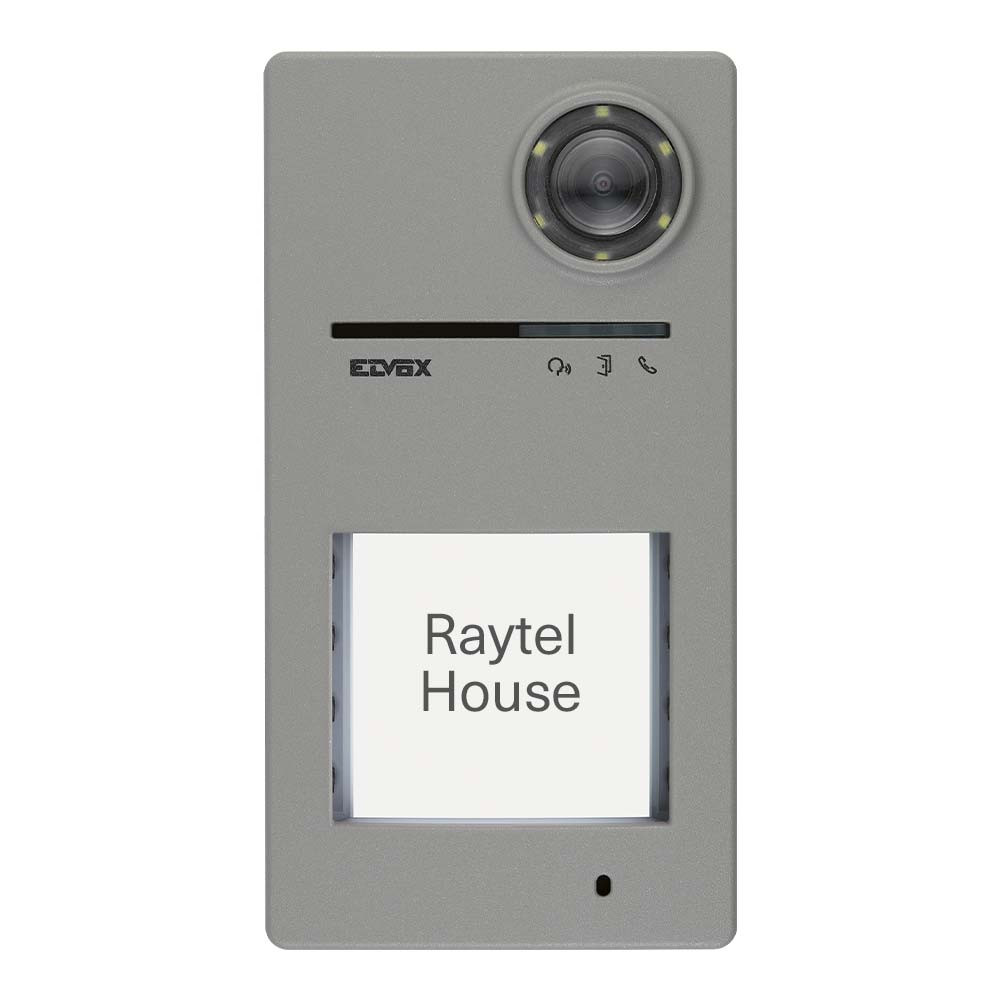

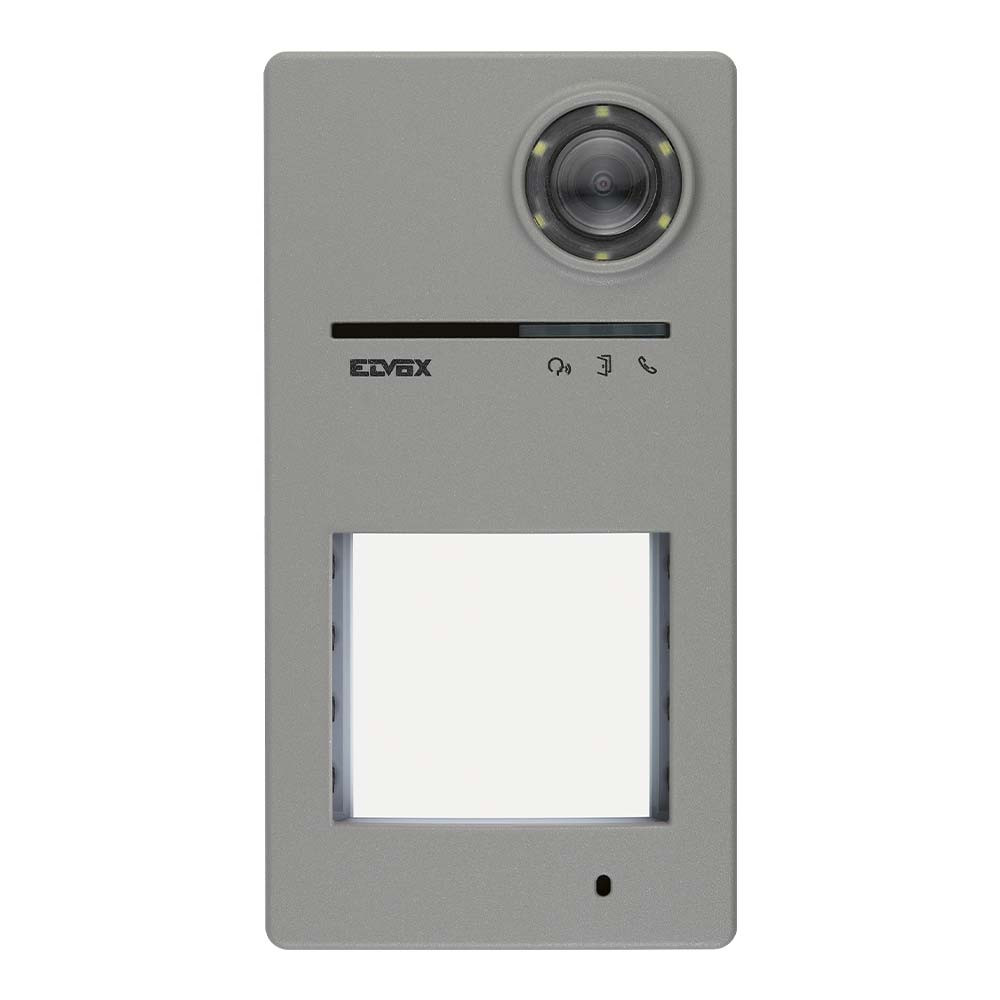

Vimar Elvox 40170 Roxie Entrance Panel - 2 Wire

Features

  • Wide angle video camera
  • Surface mounted
  • Audio annunciation
  • LED indication of call status
  • IP54 ingress protection
  • IK08 shock resistance
  • Built-in transponder for access control
  • Additional clean contact output
  • System programming and configuration via Saveprog software or Vimar View wireless app or buttons on panel or Dip Switches in panel
  • Remote access control with Vimar View key App.
  • 1, 2 or 4 call buttons (button covers ordered separately)

Details

The Roxie 2 wire Entrance Panel is compatible with all current Vimar 2-Wire plus equipment.
The panel has LED indication of the call status and can be configured to provide audio announcements.
Proximity tokens (purchased separately if required) are programmed via the View Wireless App.

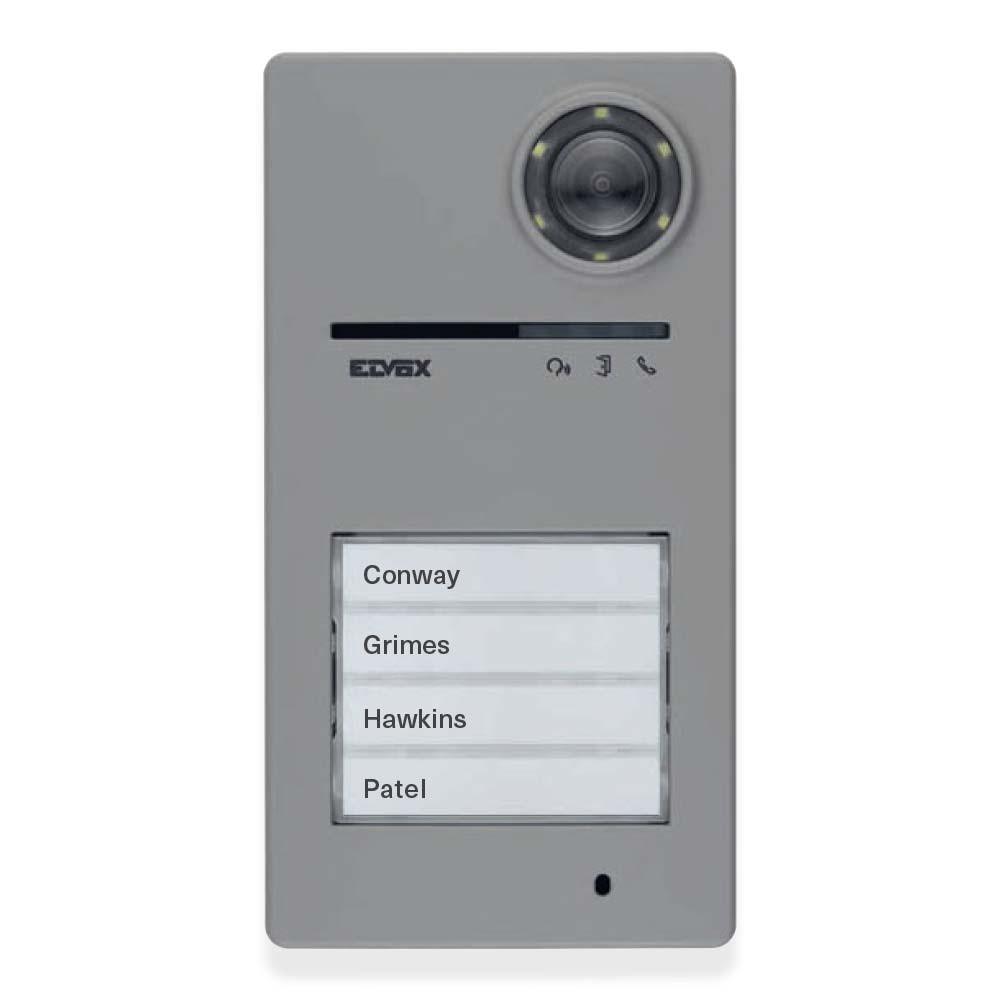

The panel can be configured to call 1, 2 or 4 devices/dwellings by specifying the number of call buttons (40171 – 1 call button, 40172 – 2 call buttons, 40174 – 4 call buttons) which are purchased separately.
Remote access can be managed via the View Key App.

Additional mounting options are available which include a Rain hood and semi flush mounting frames.

  • System Vimar 2 Wire plus
  • Finish Zamak with Grey RAL9007 finish
  • Camera 130 degree wide angle horizontal view, 82 degrees vertical view
  • Audio Full duplex audio, with audio annunciation (if configured)
  • Lock Output 12V DC on S+ and S-, an additional clean contact output is available triggered from an additional button on the monitor
  • Proximity Built in Mifare RFID proximity reader
  • Mounting Surface mount with options for Rain guard and semi flush mounting frames
  • Dimensions 100mm wide x 190mm high x 32.5mm deep

Additional Information

Manufacturer Vimar - Elvox
Part Numbers 40170

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
