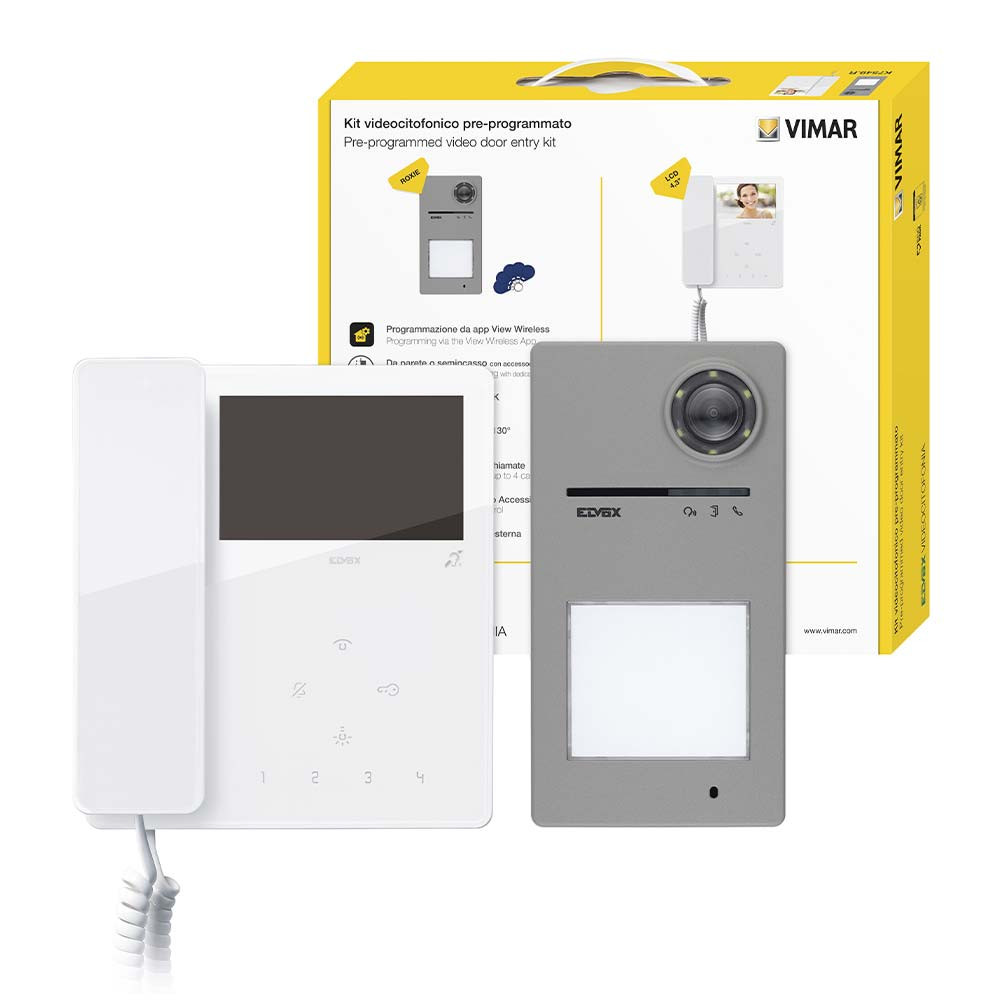

Elvox K7549.R Roxie Video Door Entry Kit - 1 Door Colour - 2 Wire

This 2 wire kit combines the stylish Roxie Entrance Panel with the 7549 monitor.

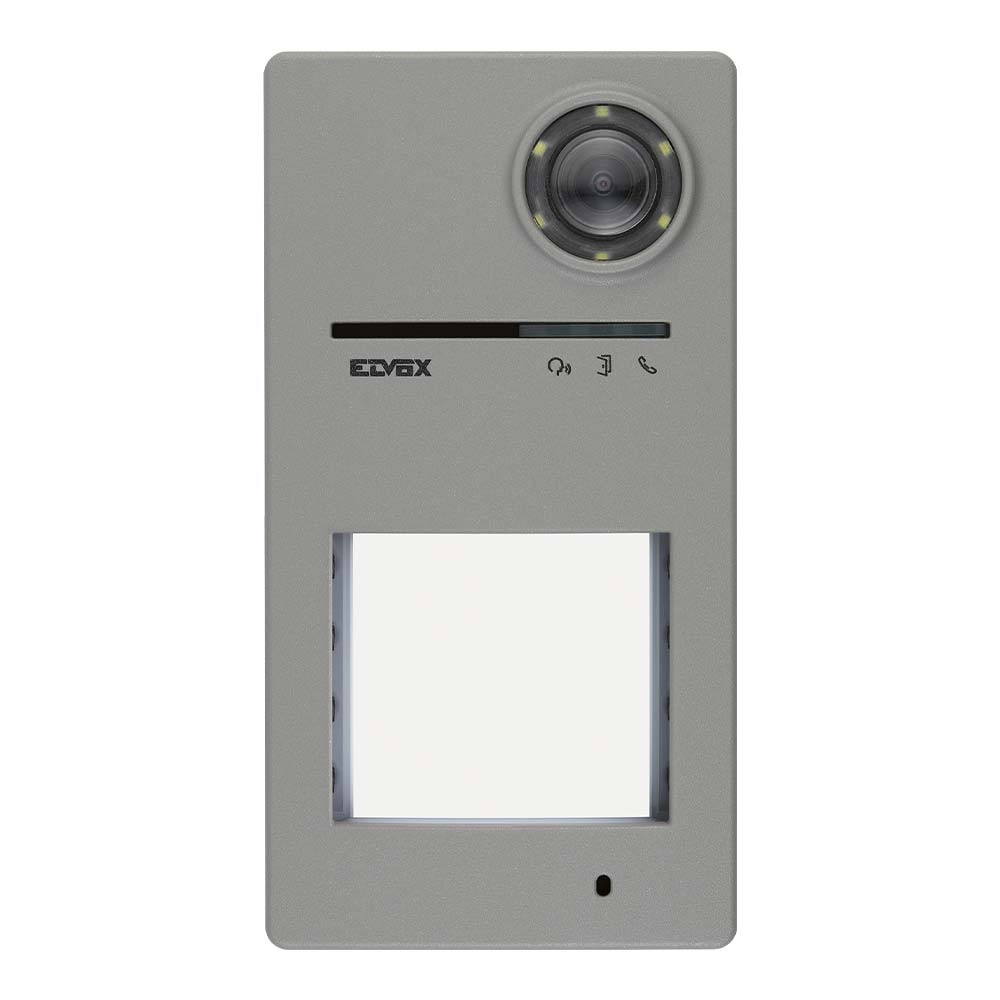

The Entrance Panel assembly has visual indicators and voice annunciation for ease of use.

The entrance Panel can be configured to call 1,2 or 4 individual dwellings via simple reconfiguration and a change of the button cover.

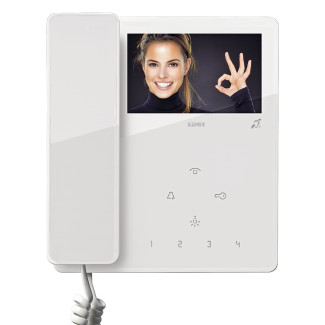

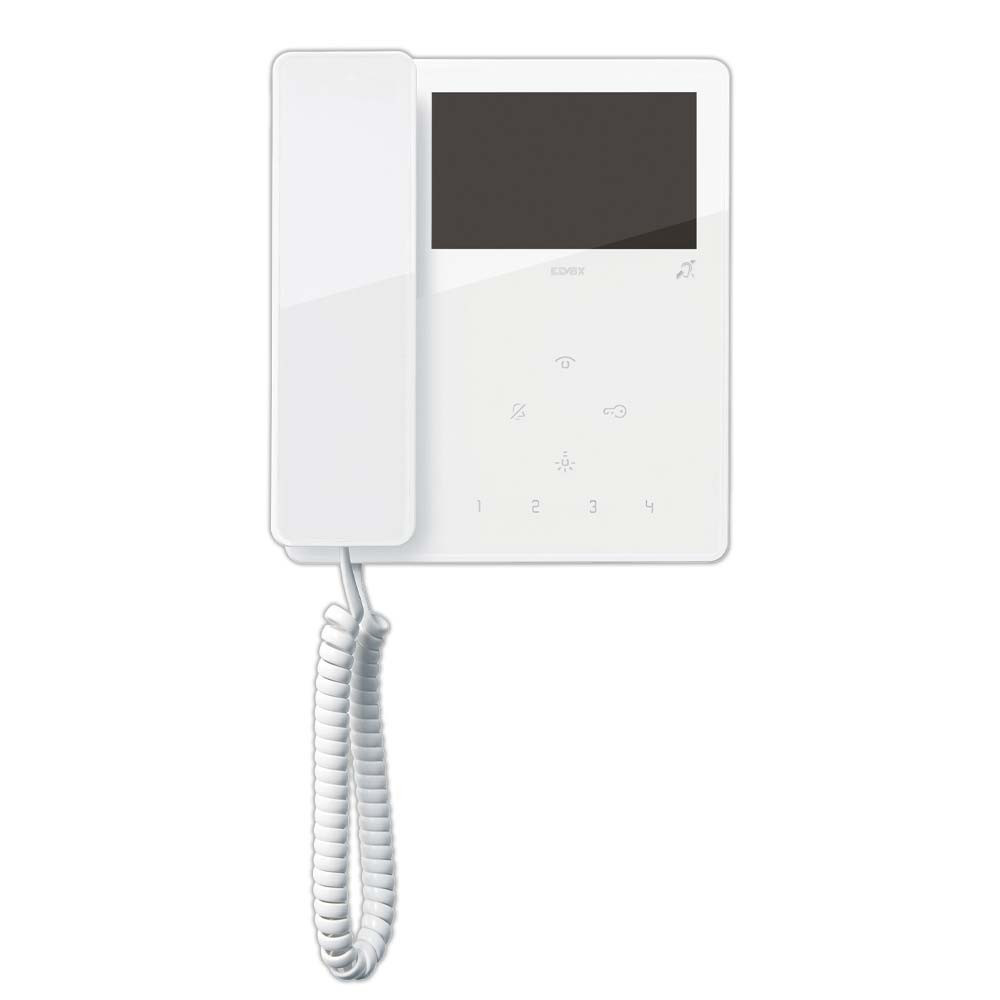

The monitor is ABS with a mirror gloss finish. The monitor has a 4.3” LCD display and touch sensitive keys. Ring tone selection, volume levels and privacy functions are incorporated into the monitor. Additional functions can be programmed via software and an interface.

See links at bottom of page for additional information.

• System : Vimar 2 Wire Video
• Monitor : Capacitive buttons for : Door release, Self activation, 4 additional programmable buttons, User control of Brightness, volume and muting.
• Entrance Panel: Surface/Semi flush mounted, back lit call button(s), IP54 ingress protection, IK08 shock resistance.
• Power Supply : Din rail or surface mount (mains connection required)
• Dimensions
  Monitor : 160mm wide, 180mm high, 45mm deep.
  Entrance Panel : 100mm wide, 190mm high, 32.5mm deep
  Power supply : 96mm high, 142mm wide, 70mm deep
