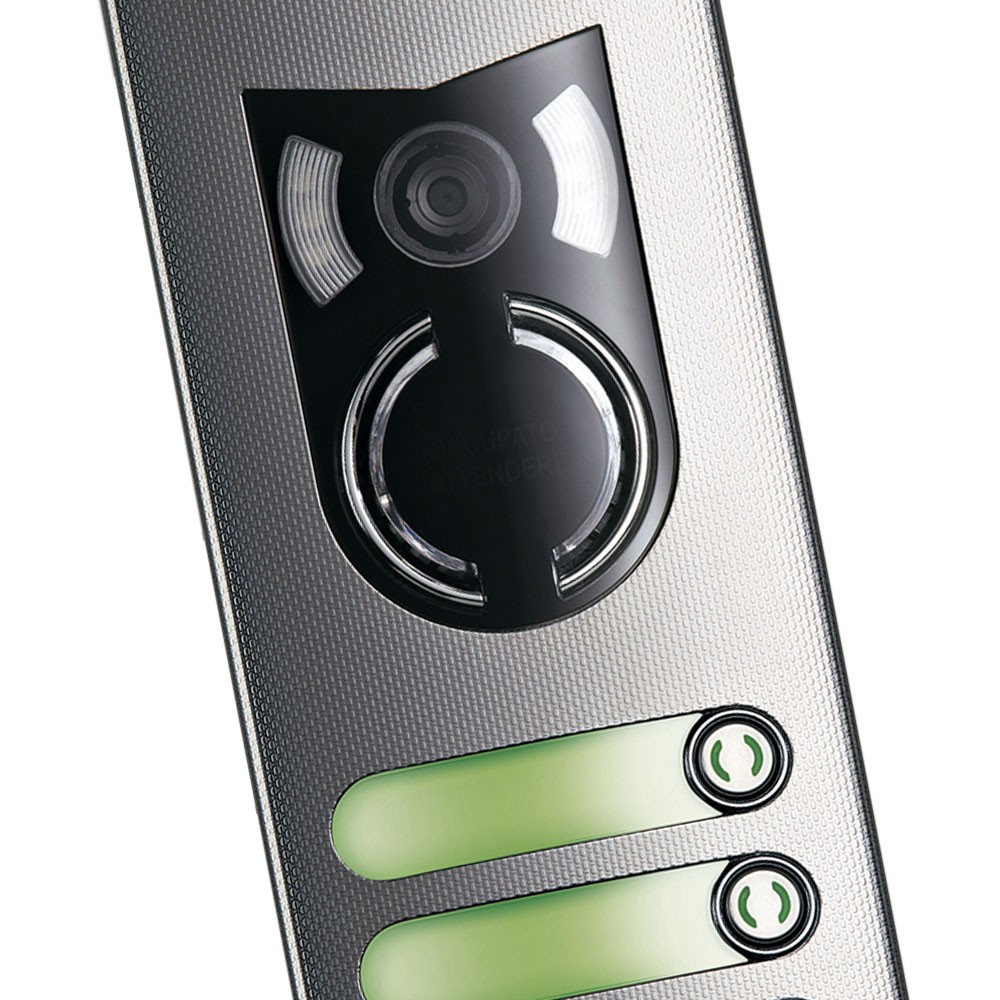

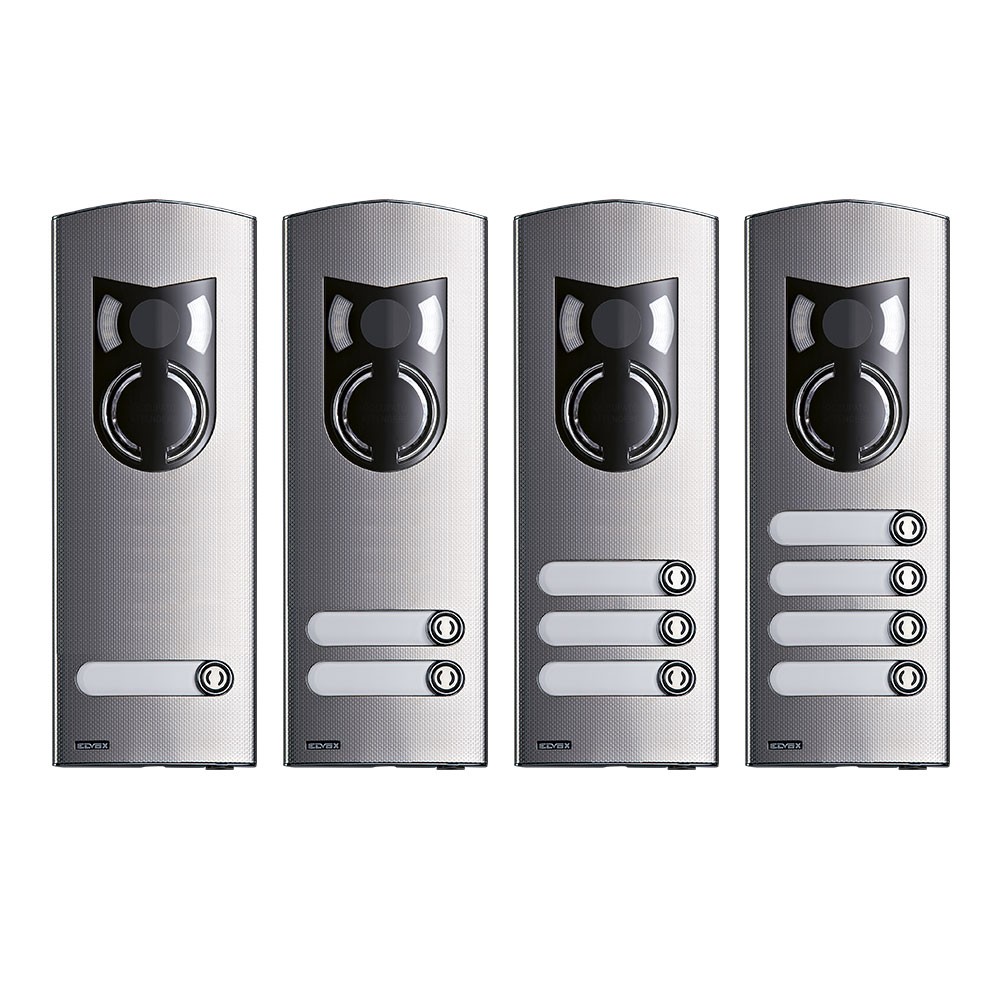

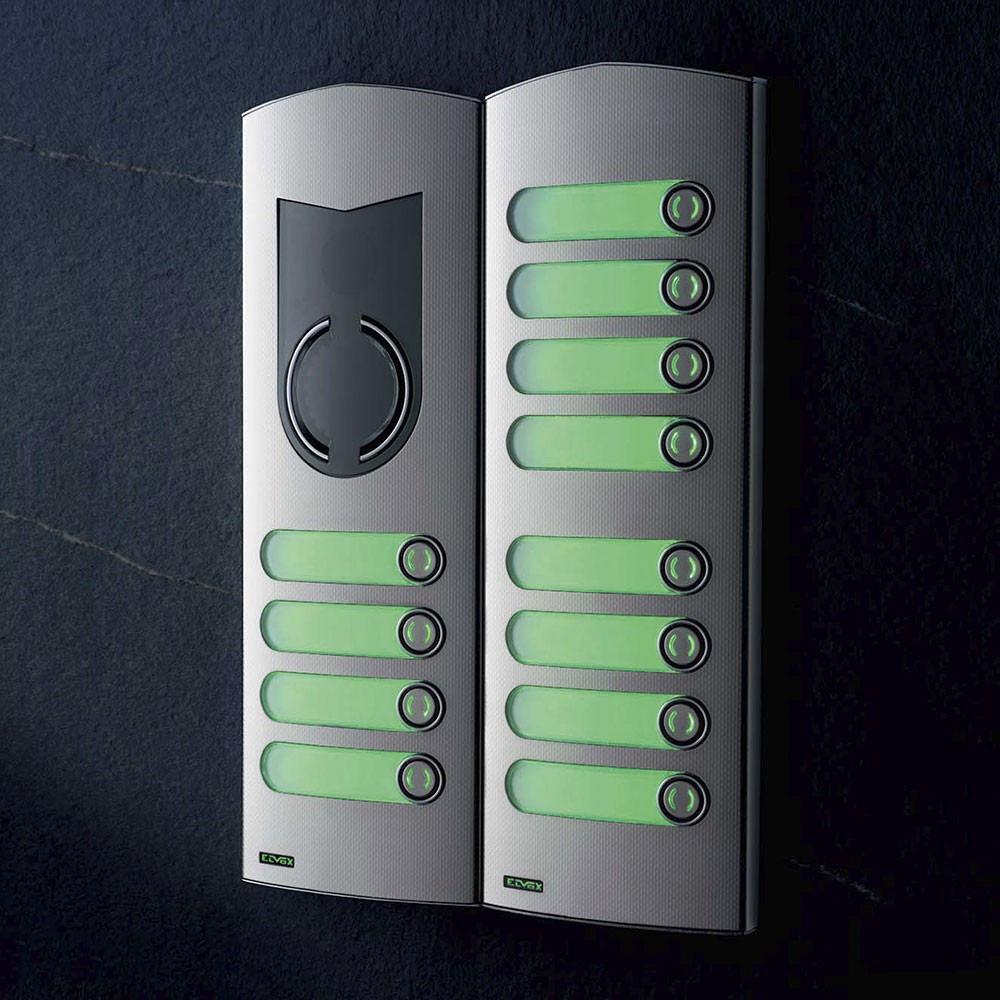

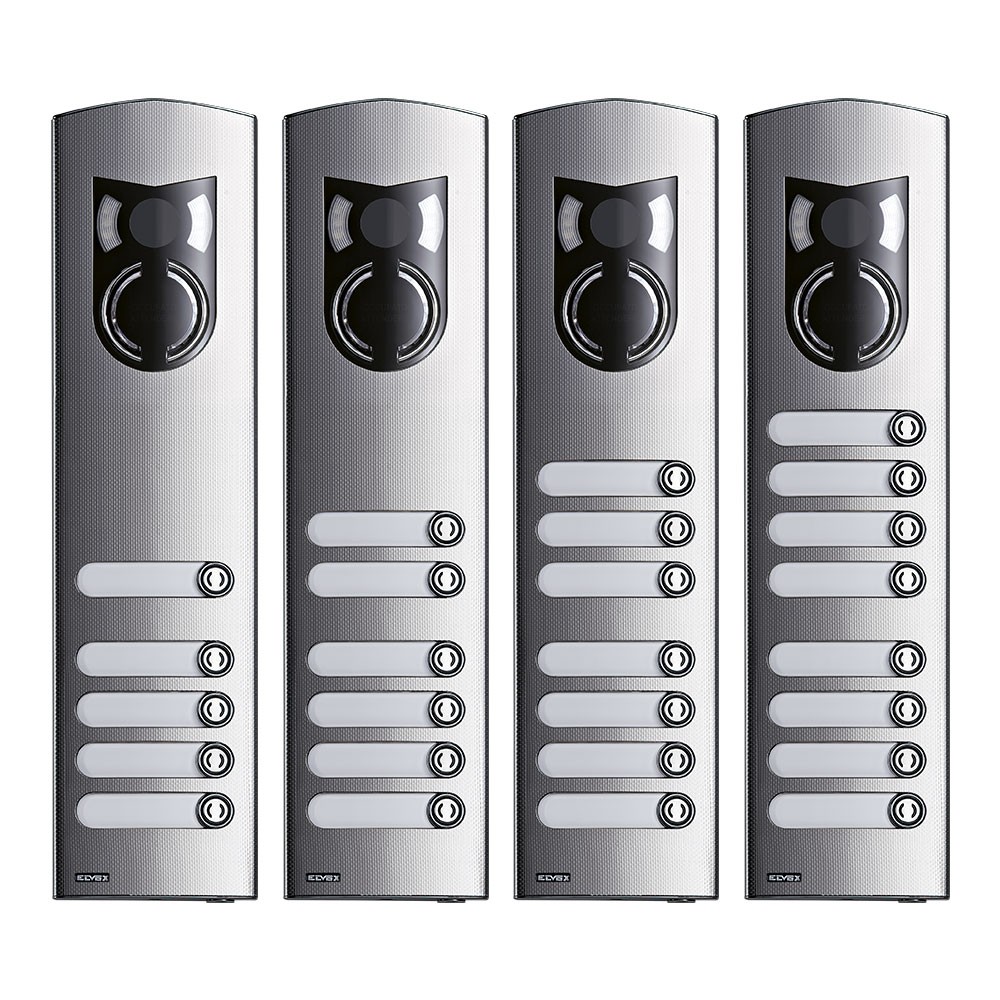

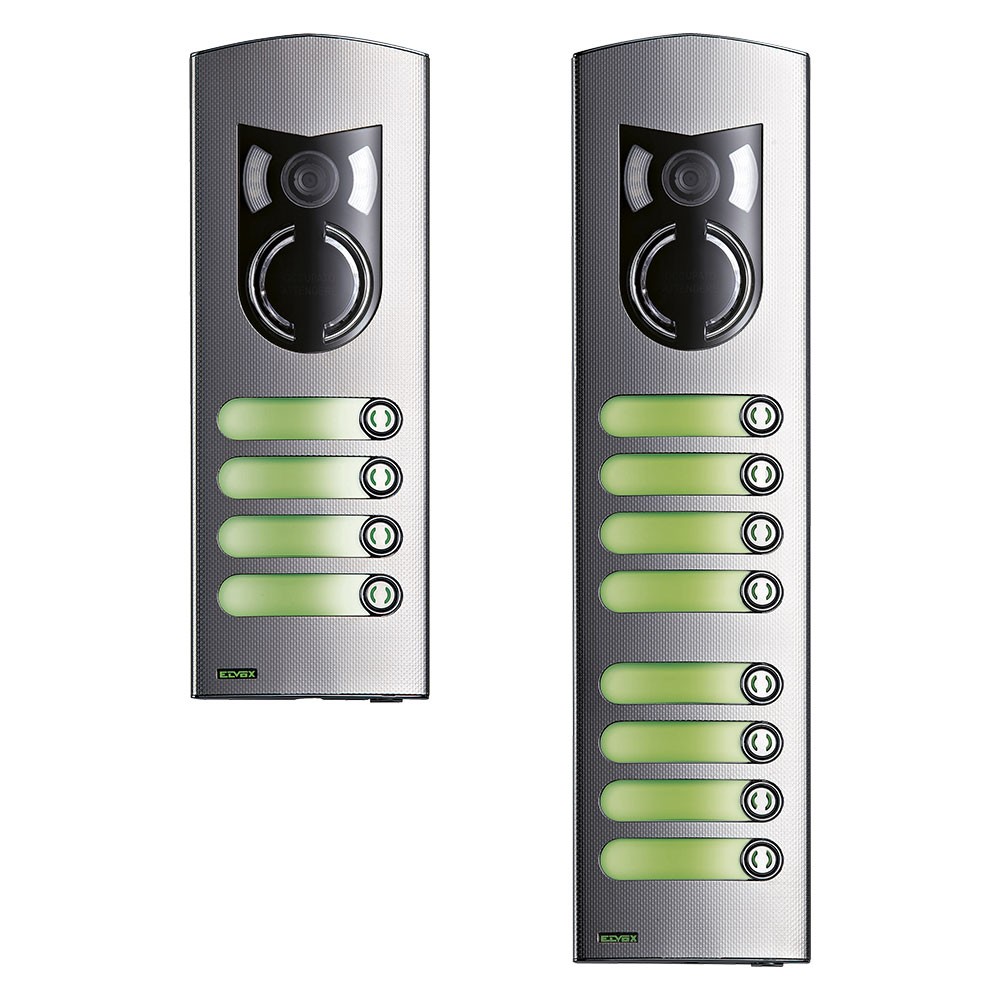

Elvox 1200 Series Audio / Video Door Entrance Panels


  • Hardwearing embossed stainless steel design 316 grade (V4A), 8/10 thick

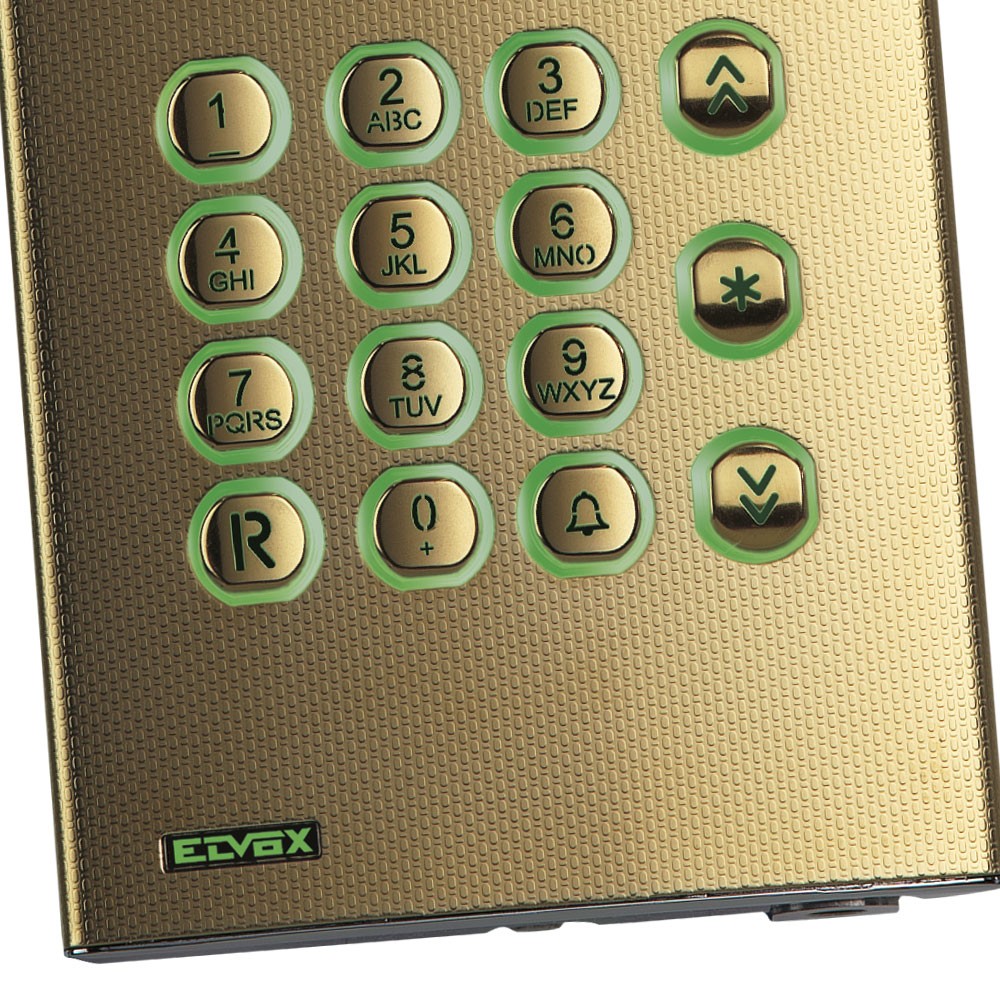

  • Digital Dial - Two-wire and Digi-bus systems
  • Functional Dial - Two-wire, Digi-bus, Sound System and A.C. Call systems
  • Tough polycarbonate name card windows with steel cap buttons with excellent backlighting
  • Universal Audio or Audio/ Video speech grill camera window design
  • Duplex (two way) speech - For natural communication and easy recognition of visitors
  • High security VIMAR Elvox design front plate fixings with custom security key provided
  • Panel rated IP44

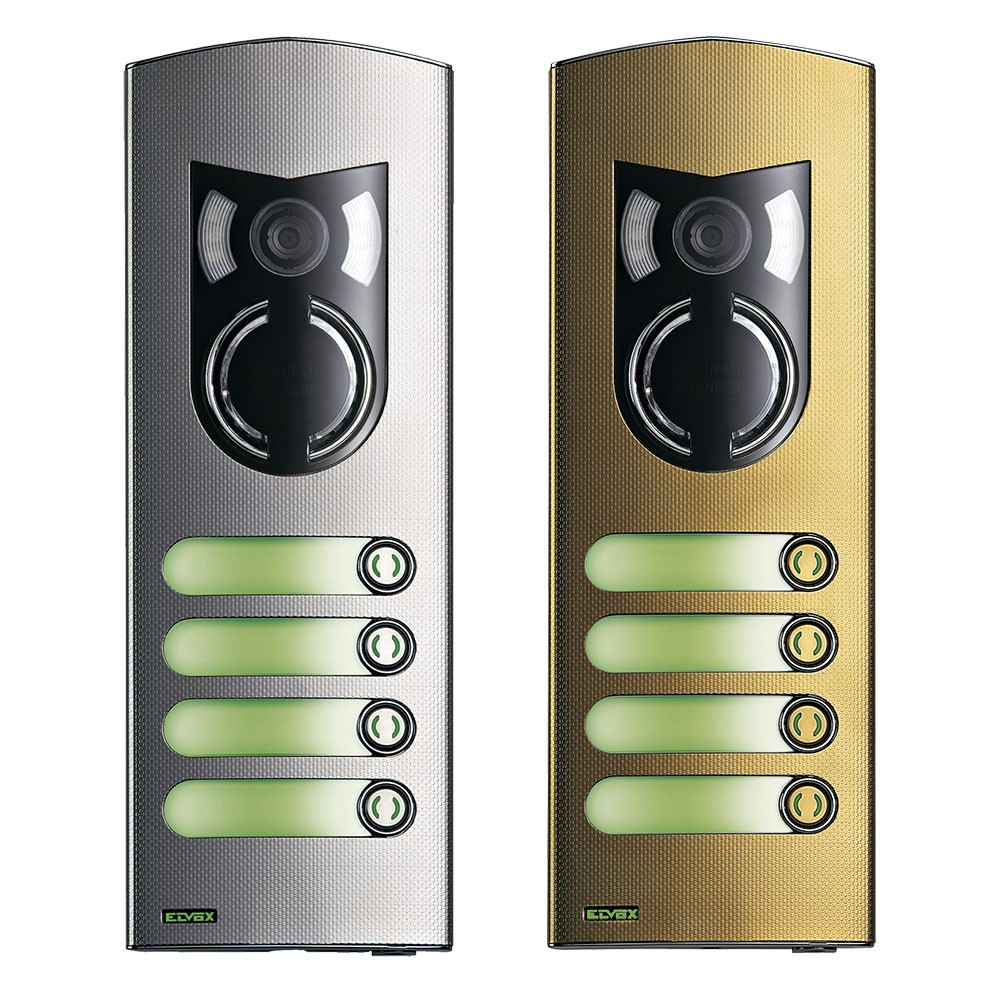

  • PVD- treated, Gold-effect version also available


Excellent materials and stylish design guarantee the Elvox 1200 series a future at the forefront of the audio and video door entry system market.

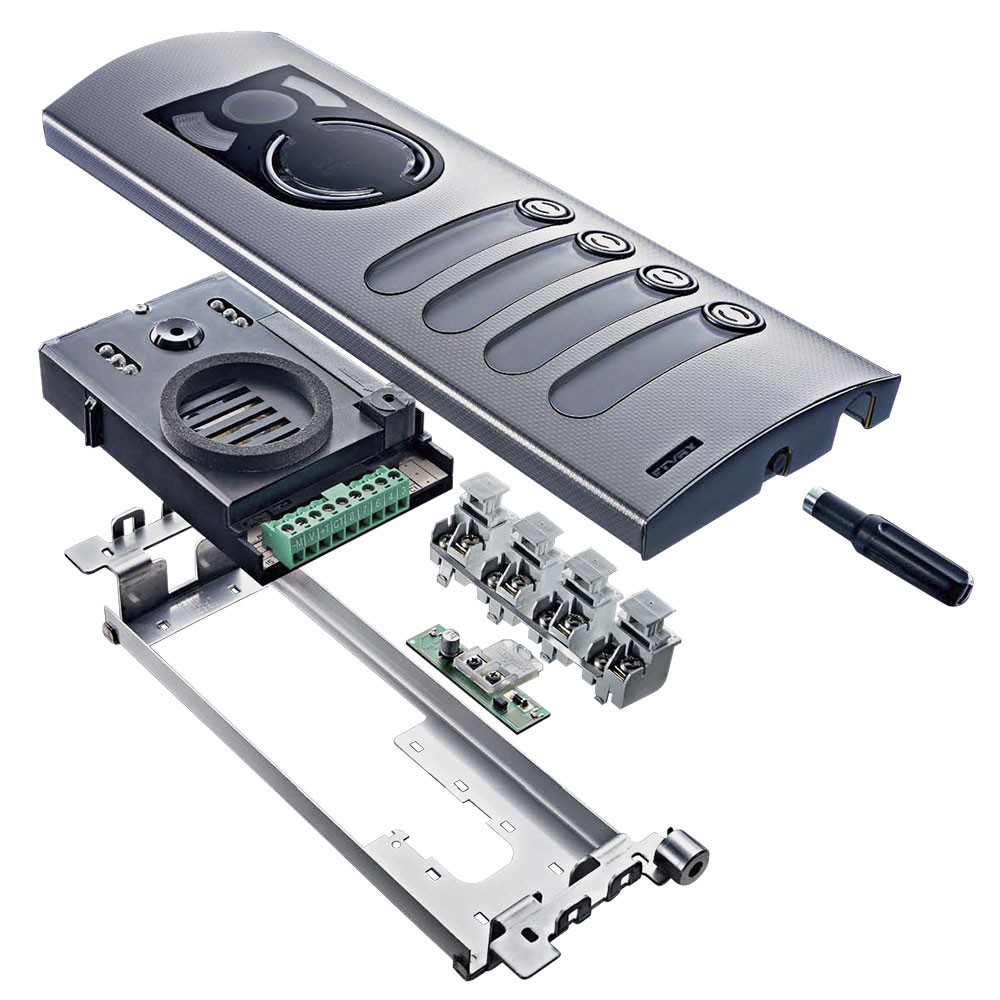

The entrance panel has a stainless steel front with two, die-cast aluminium header pieces to fasten the front to the frame using a special VIMAR ELVOX screw. The frame is also stainless steel.

The call buttons are attached to the front plate of the entrance panel with a clear polycarbonate, tamper-proof support. The clear, polycarbonate buttons are protected by a stainless steel cover. Two slots in the button cover provide excellent backlighting.

The digital dial entrance panel is compatible with VIMAR Elvox digital systems. The audio and video versions are identical externally to create a single solution for both applications.

  • Surface box with hood, 2 module size - 1E21
  • Surface box with hood, 3 module size - 1E31
  • Hood for flush panels, 2 module size - 1P21
  • Hood for flush panels, 3 module size - 1P31
  • 2 module flush box - 9092/9192
  • 3 module flush box - 9093/9193
  • Refer to ‘pdf ‘ download for assembly of panels and system components
  • The entrance panels are also available with a gold effect treatment (colour code .../43, e.g. 1201/43)

Additional Information

Manufacturer Vimar - Elvox


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
