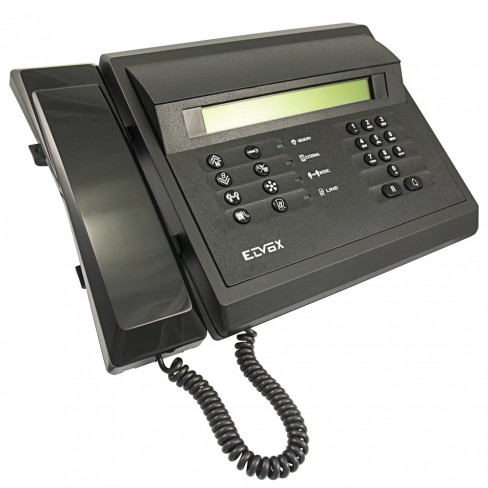

Elvox 945F Porter Switchboard for Apartment Block Systems


  • Dedicated power supply provided by 6923
  • Internal-External operating mode
  • ABS thermoplastic housing
  • Alphanumeric LCD display showing communication messages to and from the system
  • Handset for communications with entrance panels and audio/video internal units
  • Keypad for making calls, managing functions and configuring the switchboard (communication parameters, alphanumeric directory, clock and alarms)
  • 2 metres of cable with socket and removable plug
  • Option of connecting an additional monitor (6029 or 6029/C), for calls from main entrance panels
  • Option of connecting and controlling 3 relays (0170/001) from the switchboard, for dedicated lock or auxiliary services
  • Operating temperature 0…40°C
  • Desk-top installation
  • Dimensions : 310 x 120 x 235mm


The main function of the 945F Porter Switchboard is to control calls coming from main entrance panels and from audio/video door entry units. If unmanned external mode allows calls to divert directly to flats. Equipped with alphanumeric display, electronic index and an internal clock for management of appointments and events. Auxiliary services and advanced programming of audio and video door entry units can be activated from the switchboard.

Suitable for Commercial & Residential developments up to 200 users.
