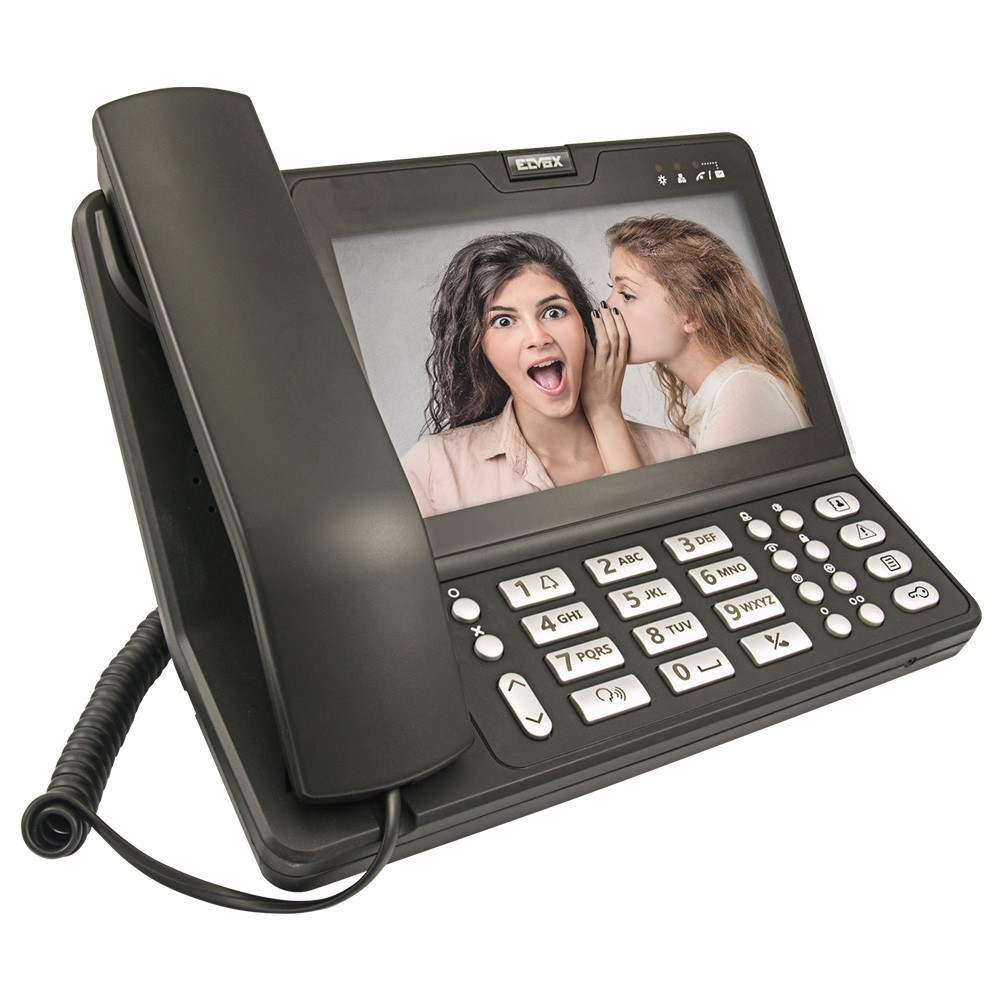

Elvox 40510 Porter Switchboard for Apartment Block Systems - 2 Wire Audio Video


  • Dedicated power supply with additional power supply
  • Mini-USB for configuration and firmware updating
  • Internal-External operating mode
  • ABS thermoplastic casing
  • 7” 16:9 LCD colour display, resolution 800 x 480 pixel, 16 M colours
  • Handset for communications with entrance panels and interphones/ monitors
  • Open voice function
  • Possibility to use with earphones or other external audio units
  • Keyboard for making calls, managing functions and configuring the switchboard (communication parameters, internal contacts list, list of missed calls and alarms)
  • Control of external door locks, stair lights and system relays
  • Call diversions according to programmed time bands
  • The CCTV cameras can be set for surveillance cycles
  • Bus cable connection on the rear of the appliance
  • Operating temperature 0…40°C
  • Desktop installation
  • Dimensions : 240 x 240 x 150 mm


The 40510 Porter Switchboard for Due Fili Plus systems; controls calls coming from main entrance panels, interphones and monitors. The switchboard can be used to call internal units and connect them (intercom function). With 7" LCD colour display with internal contacts list. Auxiliary services can be enabled from the switchboard, with the possibility to programme related zones to manage internal units.

This switchboard is capable of connecting over 1000 users.

Suitable for all Commercial and High Rise Residential needs.

Additional Information

Manufacturer Vimar - Elvox
