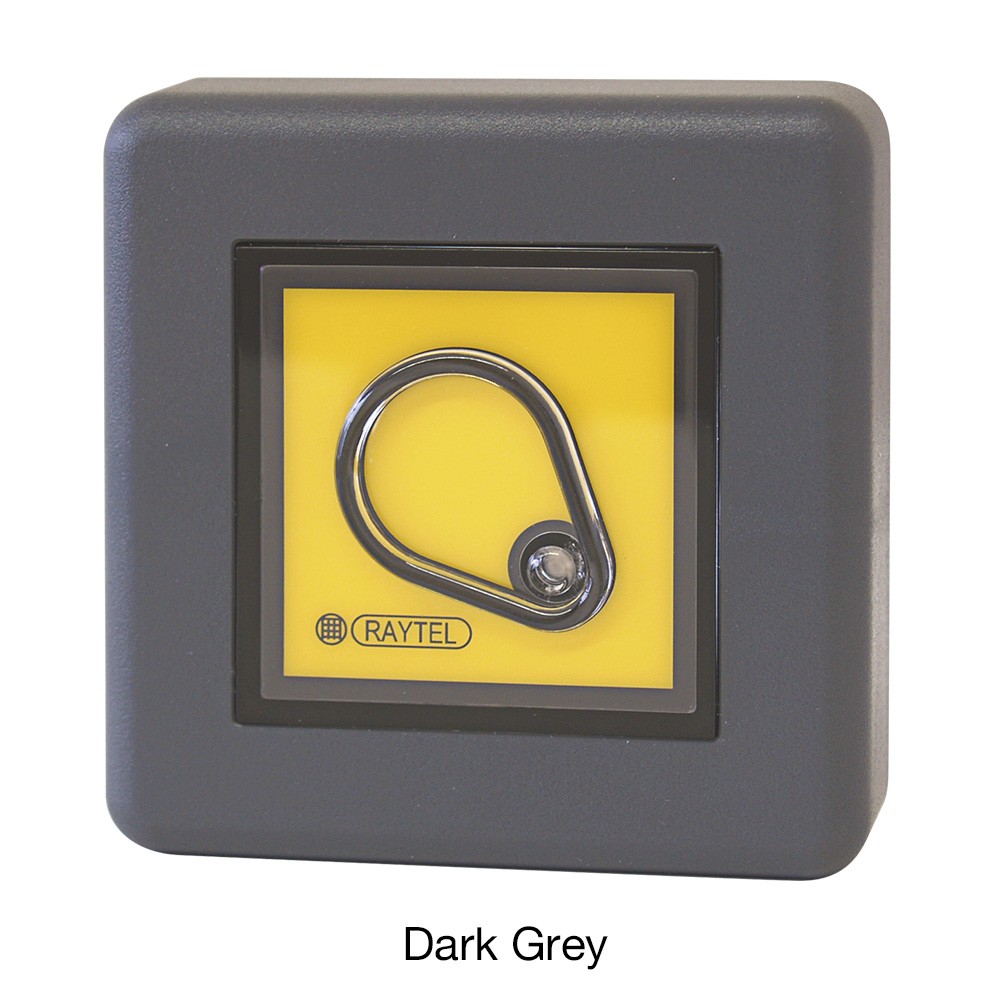

Raytel AR-737HB-RAY Proximity Access Reader

Features

This product is no longer available - see bottom of page for new product

  • High Visibility Front
  • Raised Token Logo
  • RS485 communication Interface
  • Up to 1000metre Cable Run
  • Waterproof
  • Stainless steel Vandal Resistant Housing available
  • Bi- colour LED and Sounder
  • EM4001/EM4012 compliant tokens
  • Power Requirement <1.5w
  • Operating Temperature : -20°+75C
  • Dimensions : 65x65x18.5mm with clip-on cover
  • 60x60x18.5mm without cover
  • Material : ABS
  • Standard Colour : Pearl grey with yellow and black front
  • Output for local lock relay
Options
  • Two AR-737HB-AR readers for entry control of two doors with exit buttons for egress
  • Two AR-737HB-RAY or one AR-737H(internal) plus one AR-737HB-RAY externally to give entry/exit control for one door with anti-passback facility
  • Up to 16 readers connected to Master Controller AR-716E
  • Up to 254 readers connected directly to Host PC
  • Output for local lock relay
  • Standard version of AR-737HB-RAY for surface mounting
  • Flush and surface versions of vandal-resistant, stainless steel case

Details

This product is no longer available - see bottom of page for new product

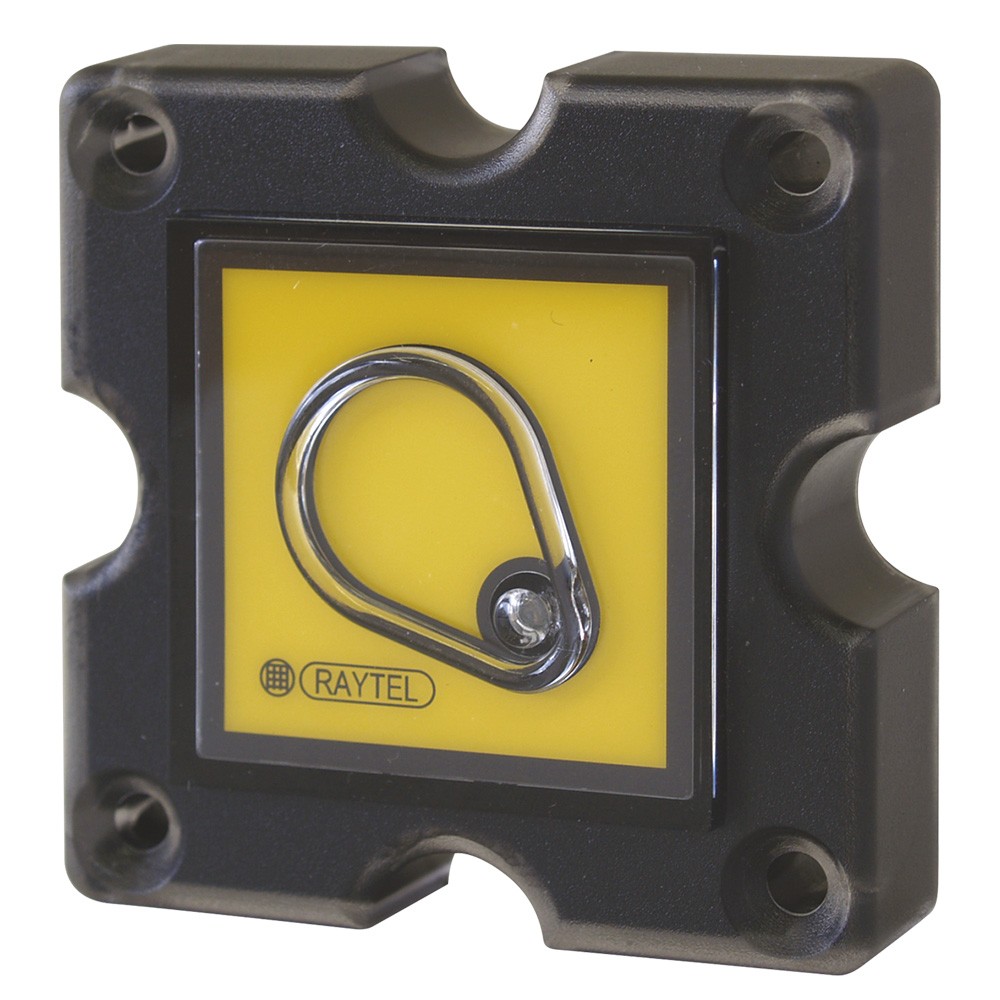

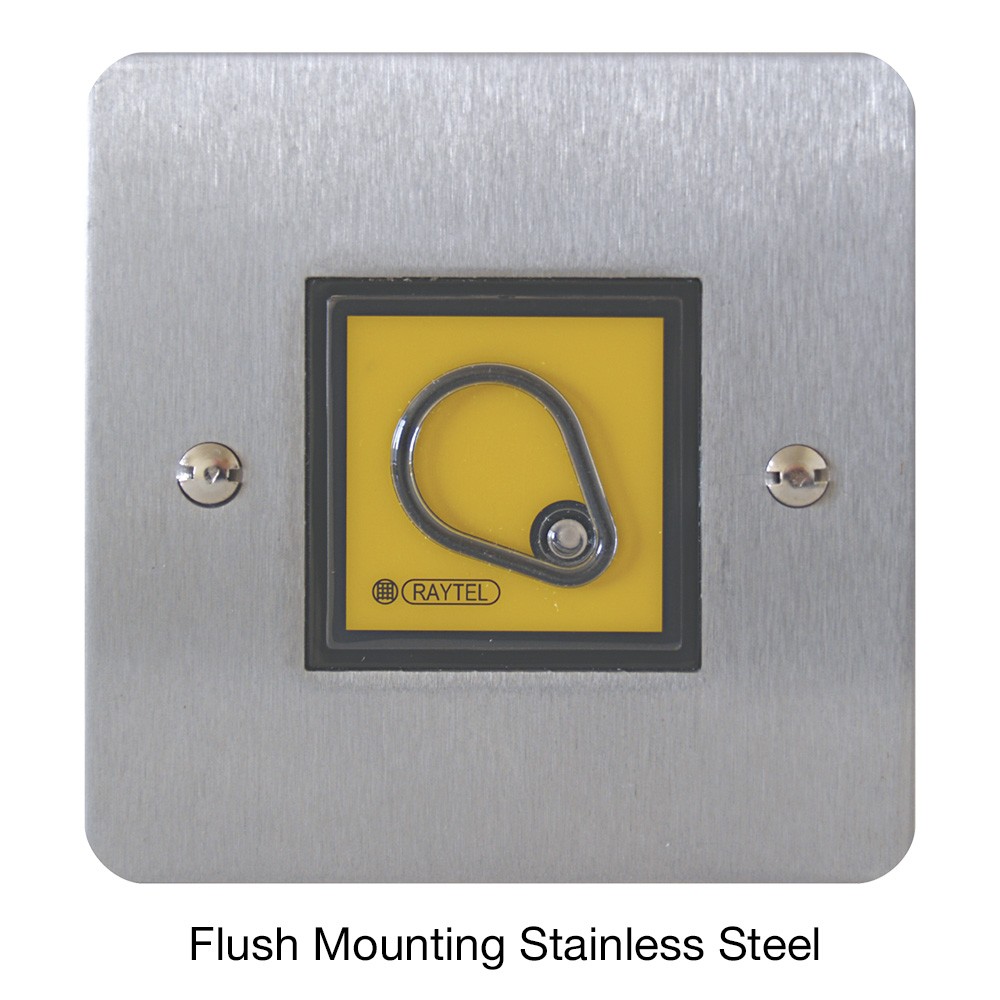

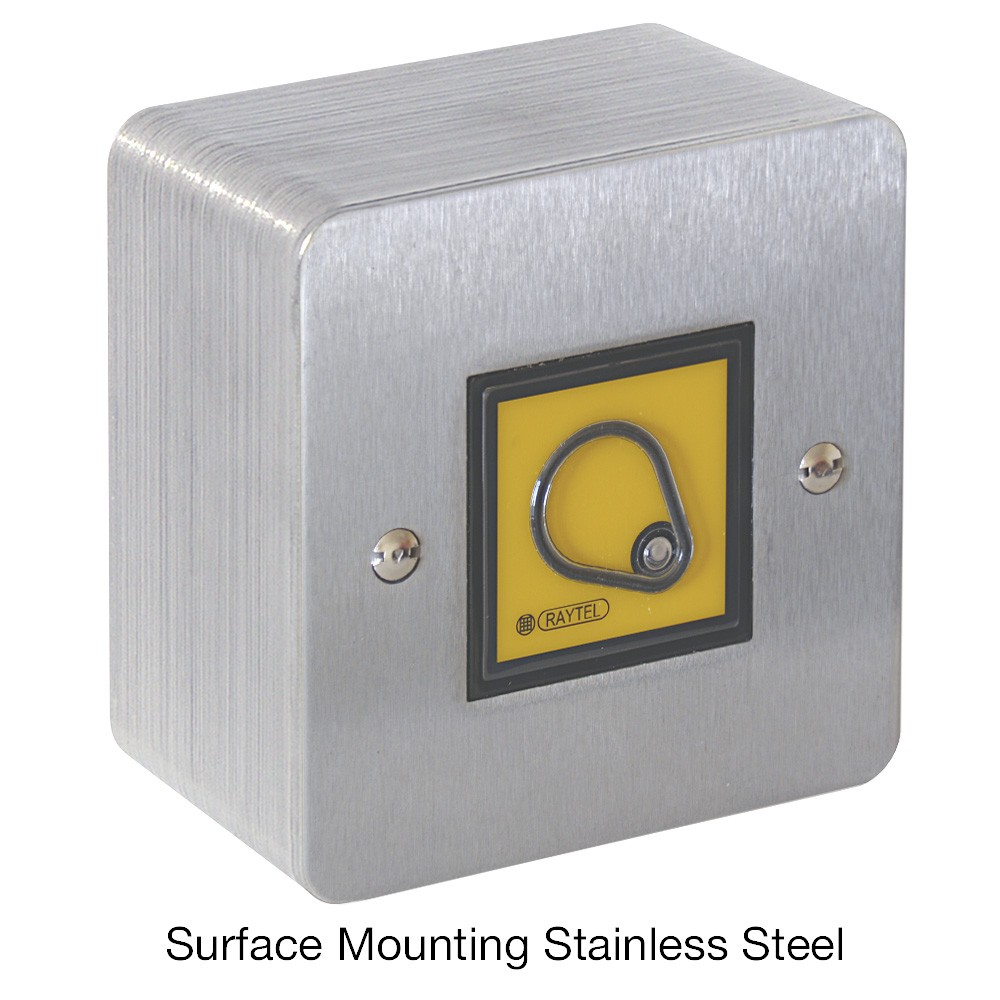

The Raytel AR-737HB-RAY proximity access control reader has been designed to operate with Controller AR-727HB-RAY or Master Controller AR-716E via an RS485 link to enable cable runs of up to 1000 metres to be used between controller and reader. This reader has a high visibility/contrast yellow and black front with raised token logo to assist visually impaired people. It has a built-in LED and sounder to indicate acceptance or rejection of a token/card. The reader is available in standard form for mounting directly on a wall or similar surface with a clip-on protective cover. Although the reader is waterproof and fairly robust, it is recommended that the terminals at the rear are protected from condensation with a silicone sealant. The reader can also be provided with a vandal resistant stainless steel case for surface (VR-RAY-S complete) or flush mounting (VR-RAY-F complete). Both VR versions use a standard single way, 35mm deep, metal, electrical back box.

This reader operates in a similar way to AR-737H in that it has an output that can be used to operate a local lock relay if this is preferred to using the lock relays in the Controller or if it is working directly to a host PC.

Note: Diodes should always be fitted across the lock inputs in accordance with best practice.

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
