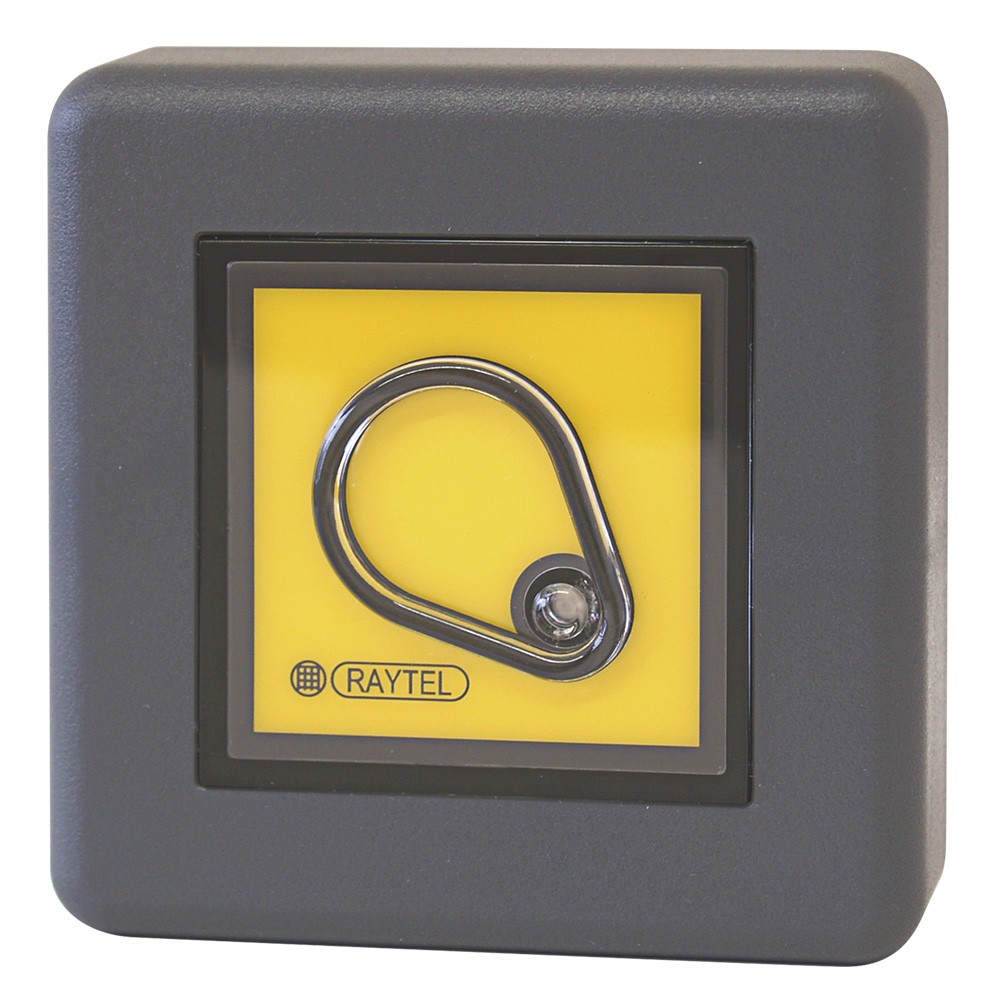

Raytel AR-747HS-RAY Proximity Access Reader


  • Improved reading range
  • Dual-Band : 125kHz and 13.56MHz
  • High Visibility Front
  • Raised Token Logo
  • Wiegand or RS485 communication Interface
  • Up to 30/300 metre cable-run (depending on interface)
  • Waterproof
  • Stainless steel Vandal Resistant Housing available
  • Bi-colour LED and Sounder
  • 125kHz EM4001/EM4012 or 13.56MHz ISO14443A/Mifare compliant tokens
  • Power Requirement <1.5w
  • Operating Temperature : -20°+75°C
  • Dimensions : 65 x 65 x 18.5mm with clip-on cover (60 x 60 x 18.5mm without cover)
  • Housing material : ABS

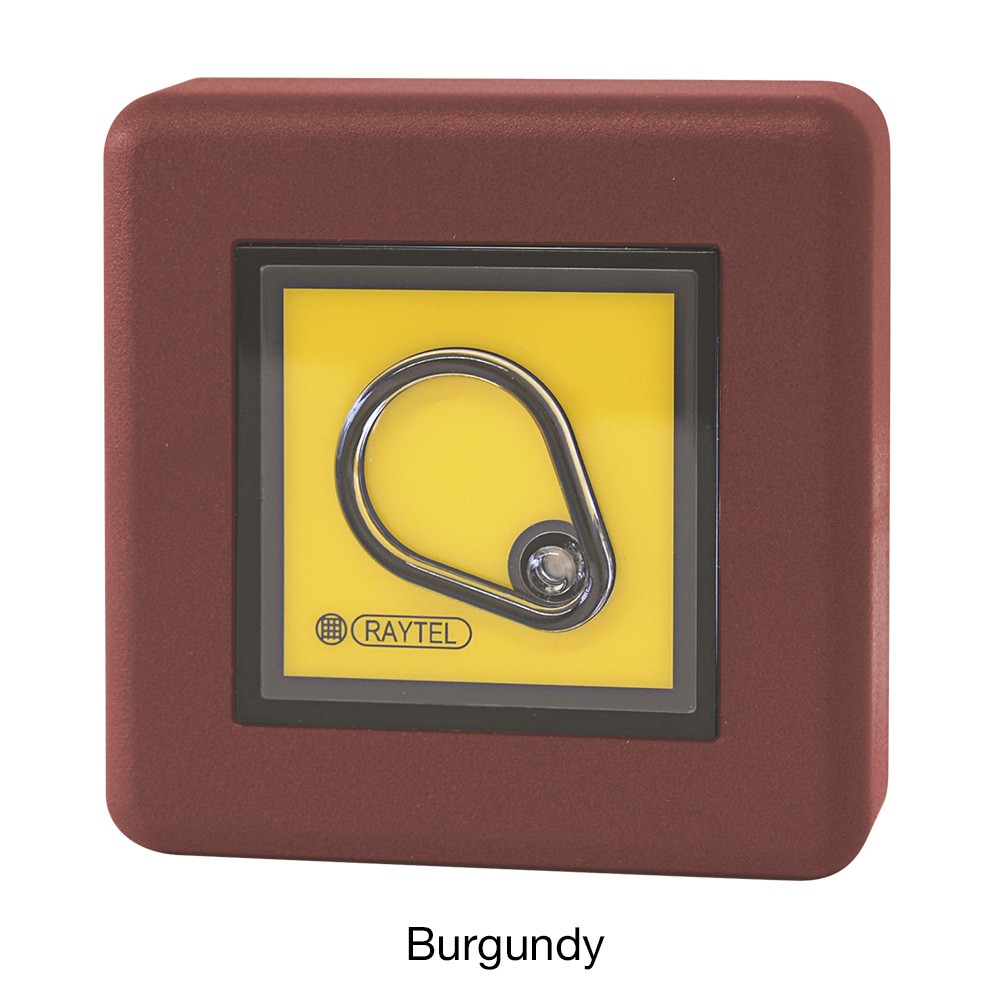

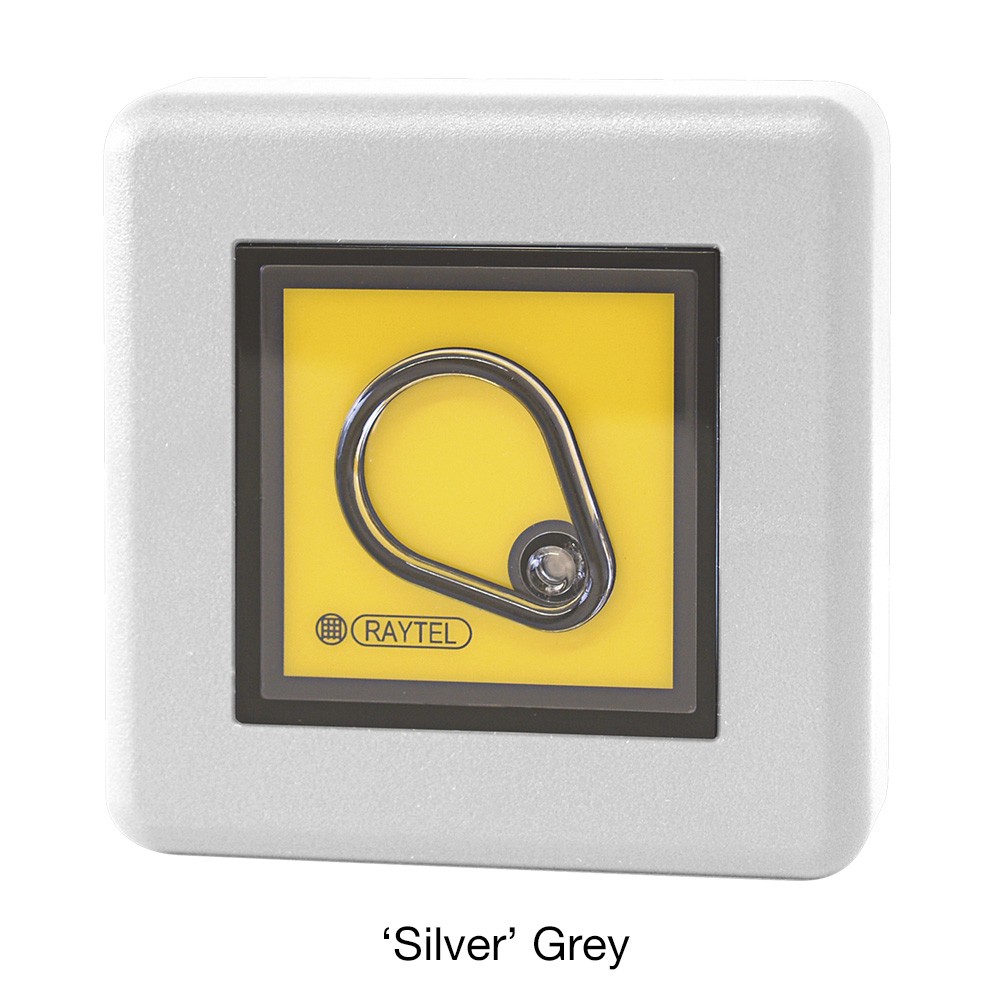

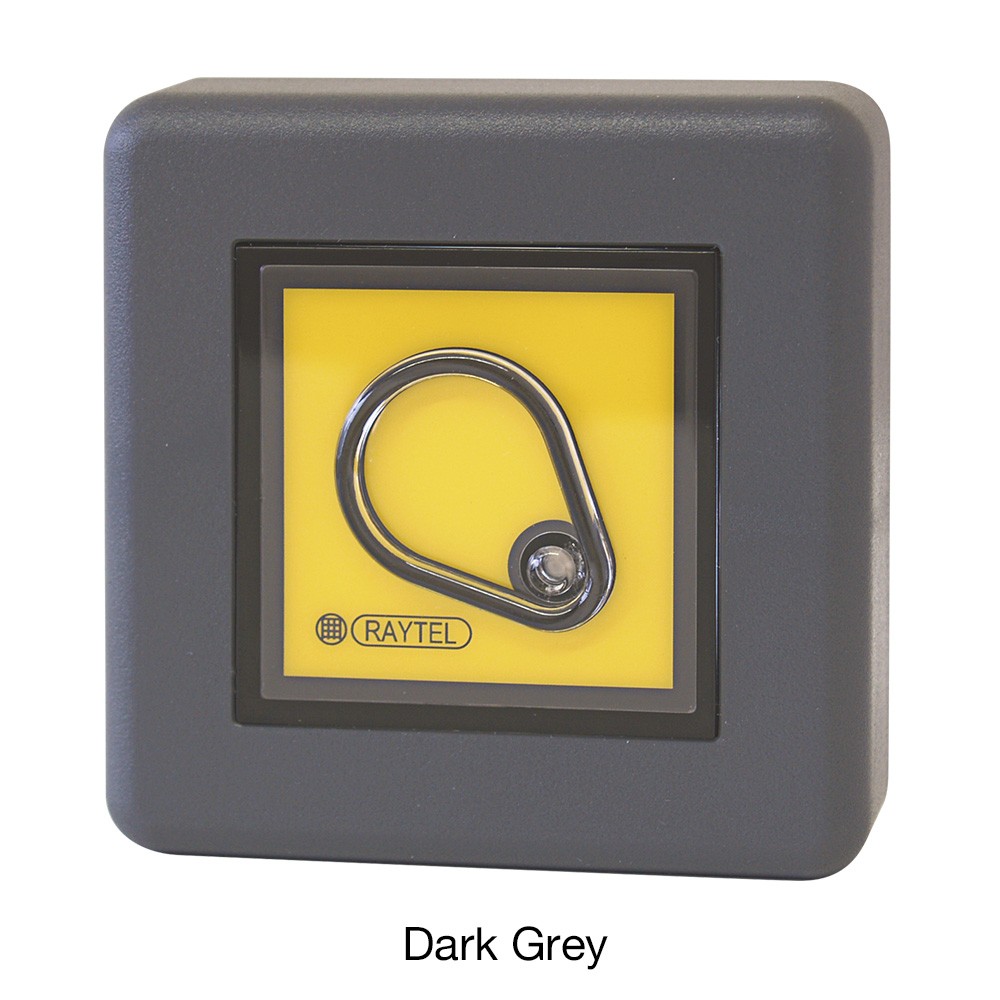

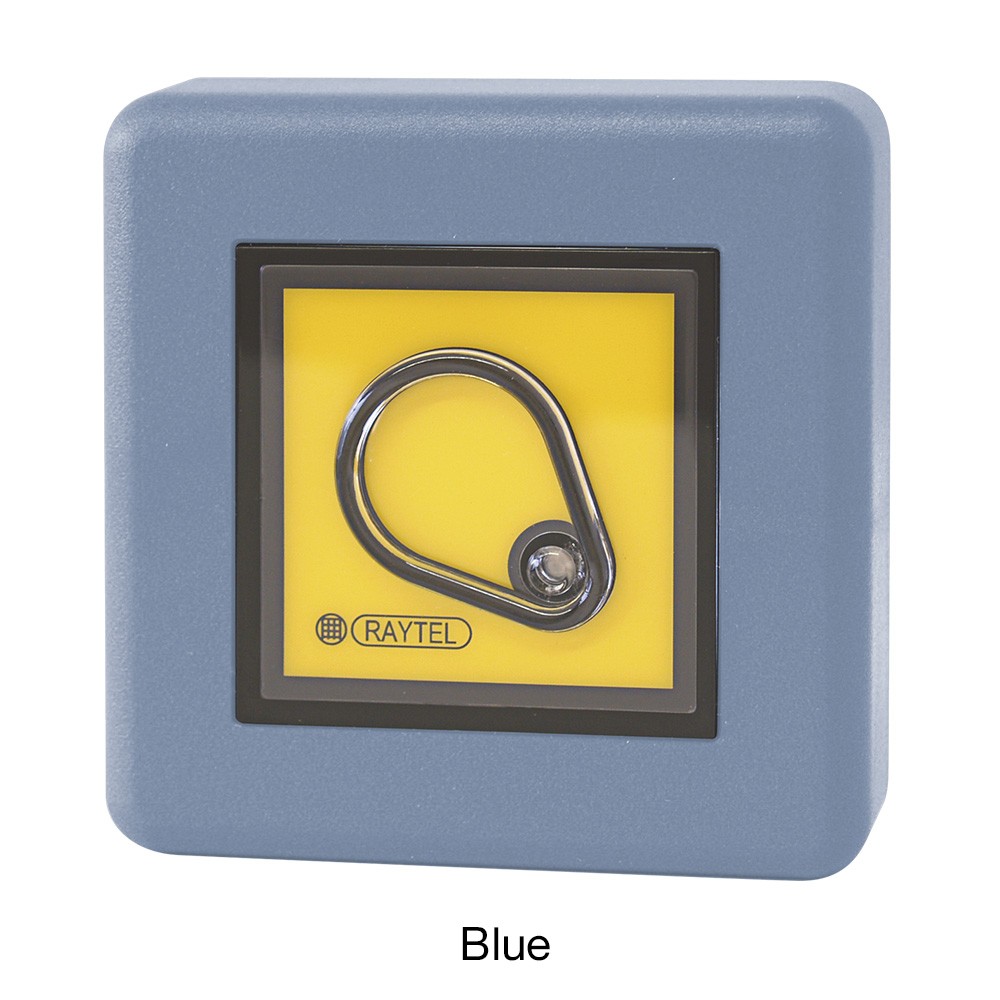

  • Standard Colour : Pearl grey with yellow and black front
  • Output for local lock relay


  • Two AR-747HS-RAY readers for entry control of two doors with exit buttons for egress, requires AR-716E-RAY-V5 controller
  • Up to 16 readers can be connected to Master Controller AR-716E
  • Output for local lock relay (with AR-716E only)
  • Standard version of AR-747HS-RAY for surface mounting

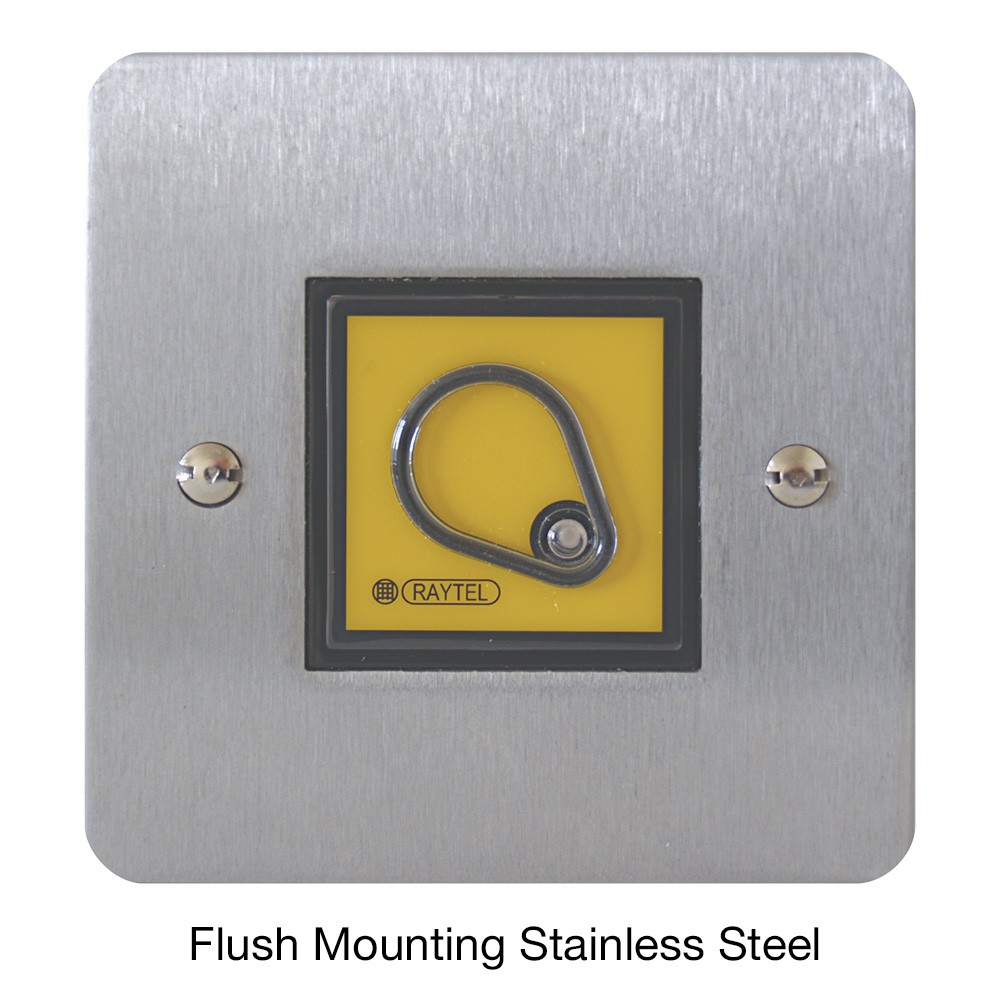

  • Flush and Surface versions of vandal-resistant stainless steel case available


The Raytel AR-747HS-RAY proximity access control reader has been designed to operate with the Soyal range of access controllers.

The AR-747HS-RAY is a direct replacement for our popular AR-737HB-RAY with Dual-Band operation and improved reading range.

The AR-747HS-RAY reader has high visibility, high contrast yellow and black front with raised token logo to assist the visually impaired. It has a built-in LED and sounder to indicate acceptance or rejection of a token or card.

This compact reader can be used to communicate via Wiegand or RS485 protocols. The reader is dual-band and is therefore capable of reading 125kHz EM standard tokens or 13.56MHz ISO14443A/Mifare tokens. The reader communicates the token details to the controller. Dependant on communication configuration a Red or Red and Green LED can be configured to identify token presence and validity. The reader, when used in RS485 mode, also incorporates an audible buzzer that can be configured to indicate activity.

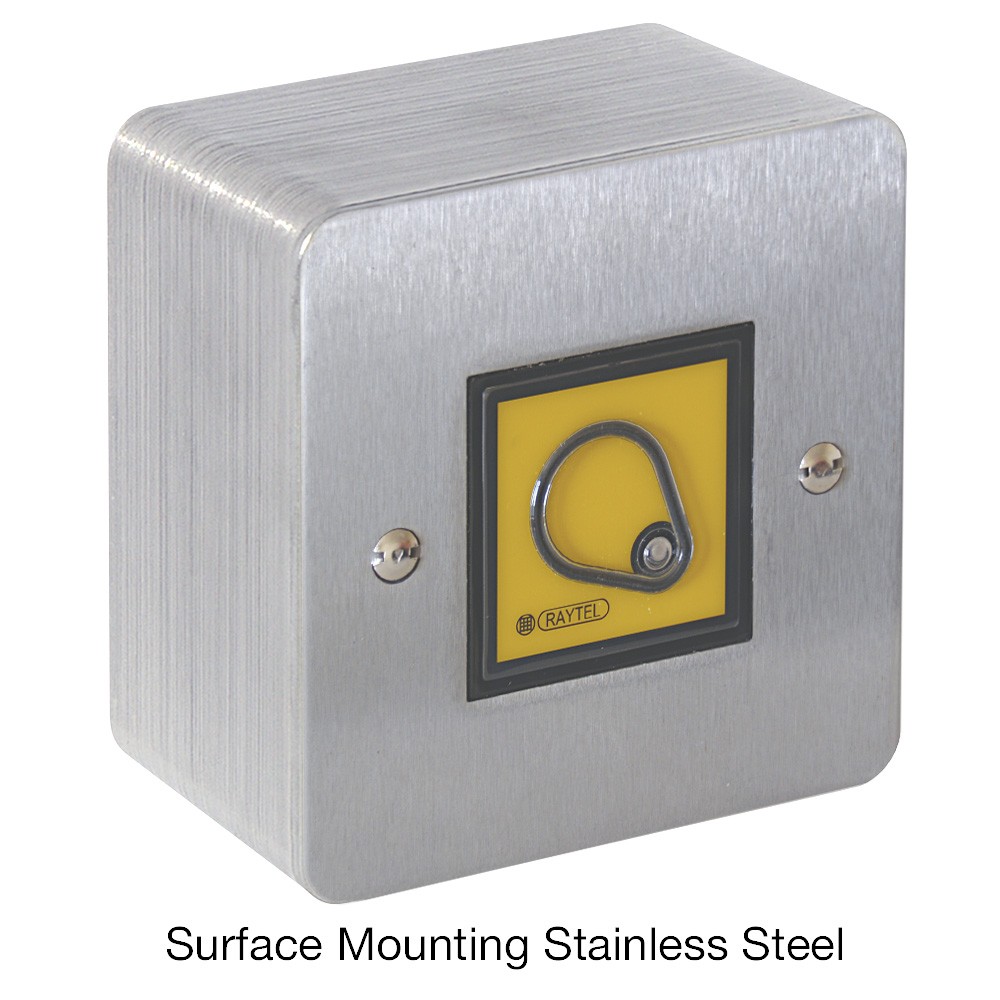

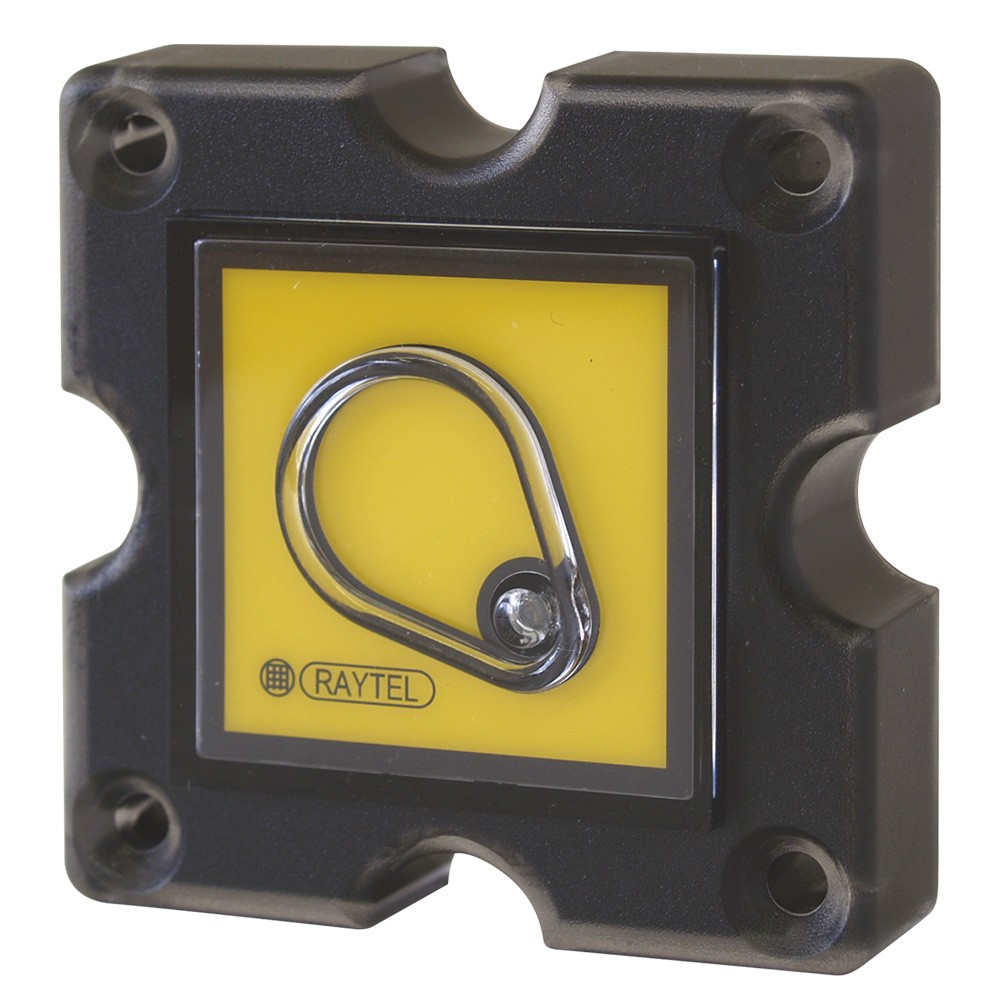

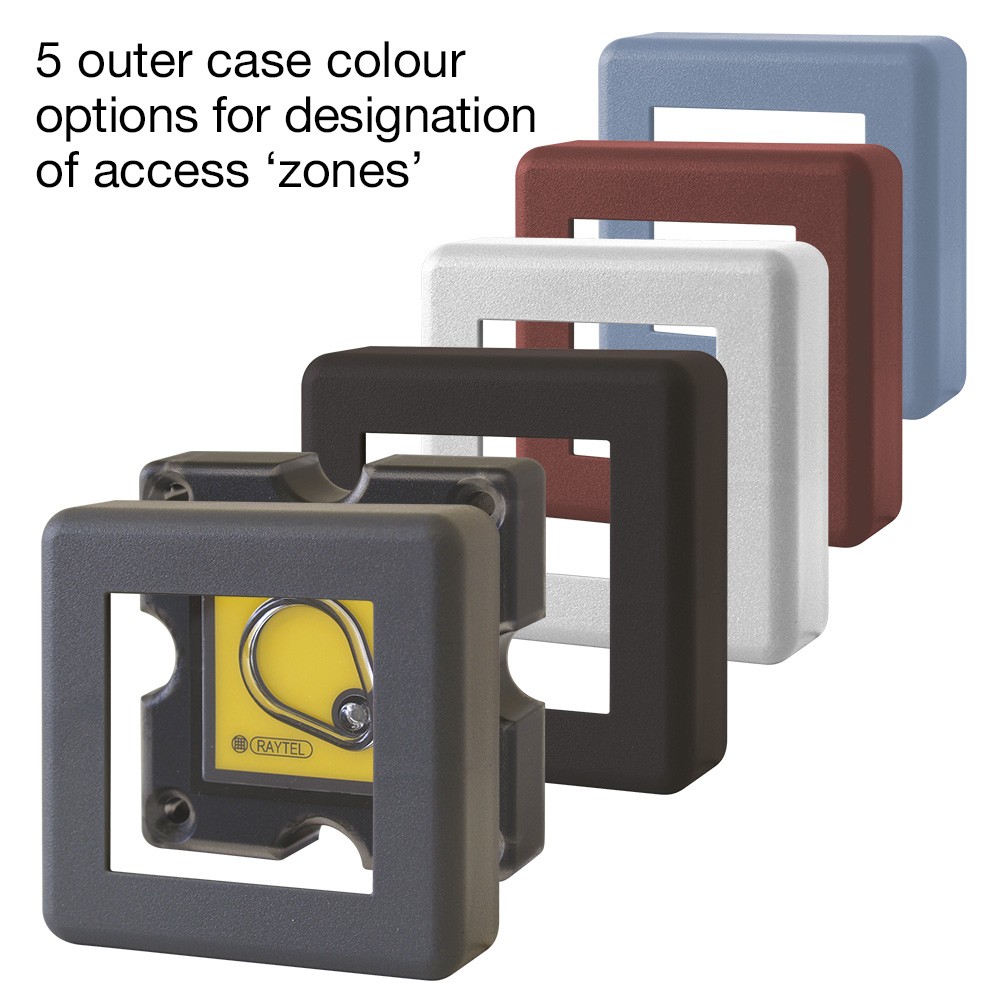

The reader is available in the standard form for mounting directly on a wall or similar surface with a clip-on protective cover. Although the reader is waterproof and fairly robust, it is recommended that the terminals at the rear are protected from condensation with a silicone sealant. The reader can also be provided with a vandal resistant stainless steel case for flush mounting (VR-RAY-F4) or surface mounting (VR-RAY-F4 + AEBBOX). Both VR versions use a standard single way, 35mm deep, metal, electrical back box.

  • System : Soyal Access Control
  • Voltage 9 – 16V DC
  • Power Consumption < 1.5W
  • Communication RS485 / Wiegand
  • Frequencies 125kHz / 13.56MHz
  • Finish PMMA / ABS
  • Dimensions 60mm x 60mm x 20mm
  • Cut out dimensions 40mm x 40mm
  • Connections Screw Terminals
  • Fixing Centres 48mm x 48mm (4 fixings)
  • Weight 80g
