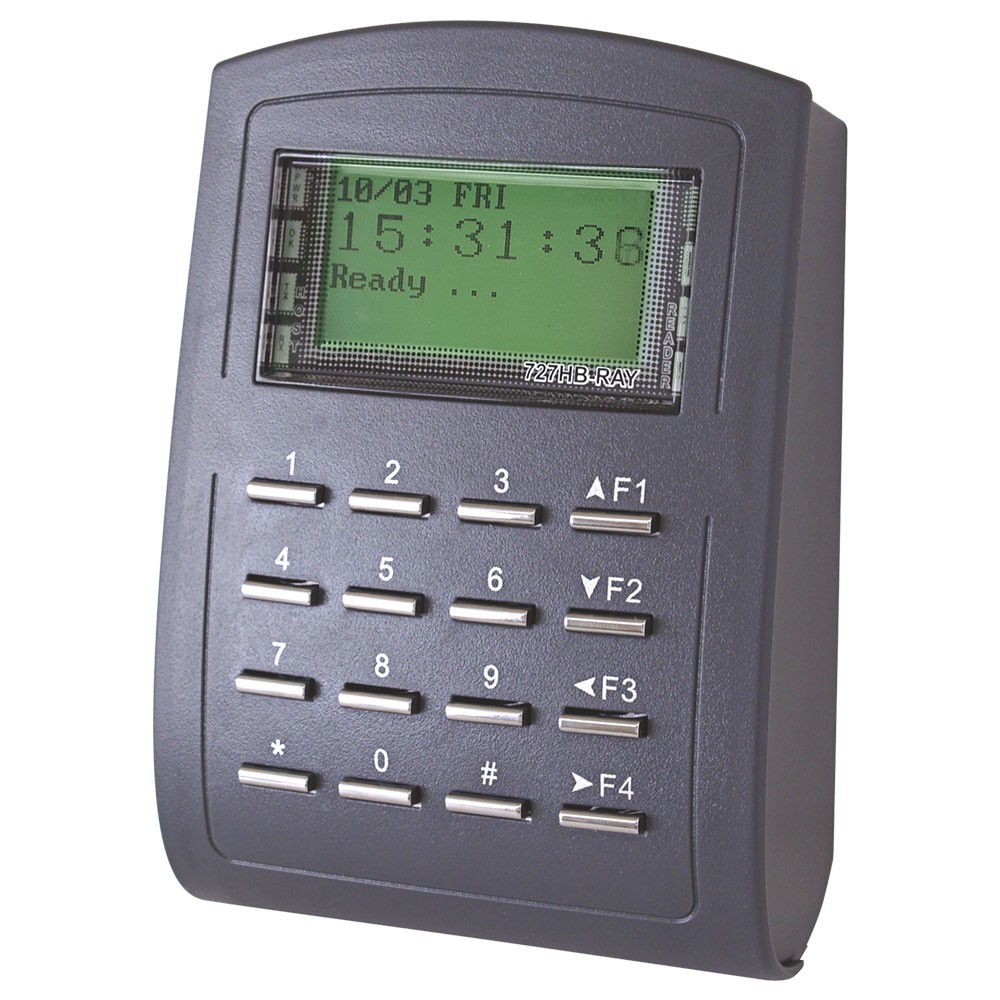

Soyal AR-727HB-RAY Network or Standalone Controller + Reader

Features

This product is no longer available - see bottom of page for new product

  • Standalone controller/reader with two slave RS485 readers
  • Up to 254 Controllers with RS485 connection to host PC
  • Proximity Card or Token Input
  • Reading Range 3cm
  • Built-in reader and LCD display for programming
  • Two built-in lock release relays
  • Anti-passback memory 1024
  • Event log 1200
  • Card/token memory 1024
  • Tamper switch
  • Working temperature -20°C to + 75°C
  • Power consumption <3W
  • Unit Dimensions : 127 x 91 x 46mm

Details

This product is no longer available - see bottom of page for new product

The Soyal AR-727HB-RAY is an extremely versatile controller/reader operating either as a standalone controller or as a network controller as one of up to 254 controllers operating via an RS485 connection to a host PC. The RS485 port of the AR-727HB-RAY can be connected to two remote RS485 readers to provide entry control for two doors with exit buttons for egress or for one door with two readers for anti-passback. The RS485 connection enables long cable runs (up to 1000 metres) to be used between reader and controller.

The controller has a built-in proximity reader and LCD display for programming. It is also available in a lockable metal case complete with a 3 amp power supply (EAR-737HB-RAY). The readers that can be used with this controller are the AR-737H and the DDA compliant AR-737HB-RAY. There are two lock relays in the controller.

Note : This controller cannot be used as a sub-controller connected to the AR-716E.

Options
  • Standalone controller with two readers and two exit buttons for control of two doors without anti-passback facility (Readers: 2 x AR-737H or 2 x AR-737HB-RAY)
  • Standalone controller with two readers for control of one door with anti-passback facility (Readers:2xAR737H or reader in Controller AR-727HB-RAY + AR-737HB-RAY)
  • One of up to 254 controllers as network node connected to a host PC, with the same reader options as in standalone mode
  • One AR-727HB-RAY plus a 3amp power supply mounted in a lockable, metal cabinet (version EAR-727HB-RAY)

Additional Information

Manufacturer Soyal
Part Numbers No

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
