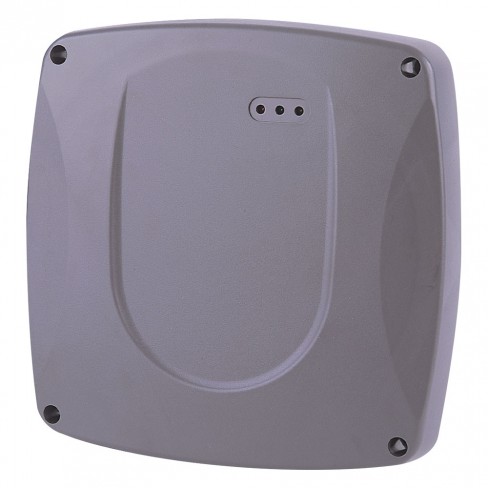

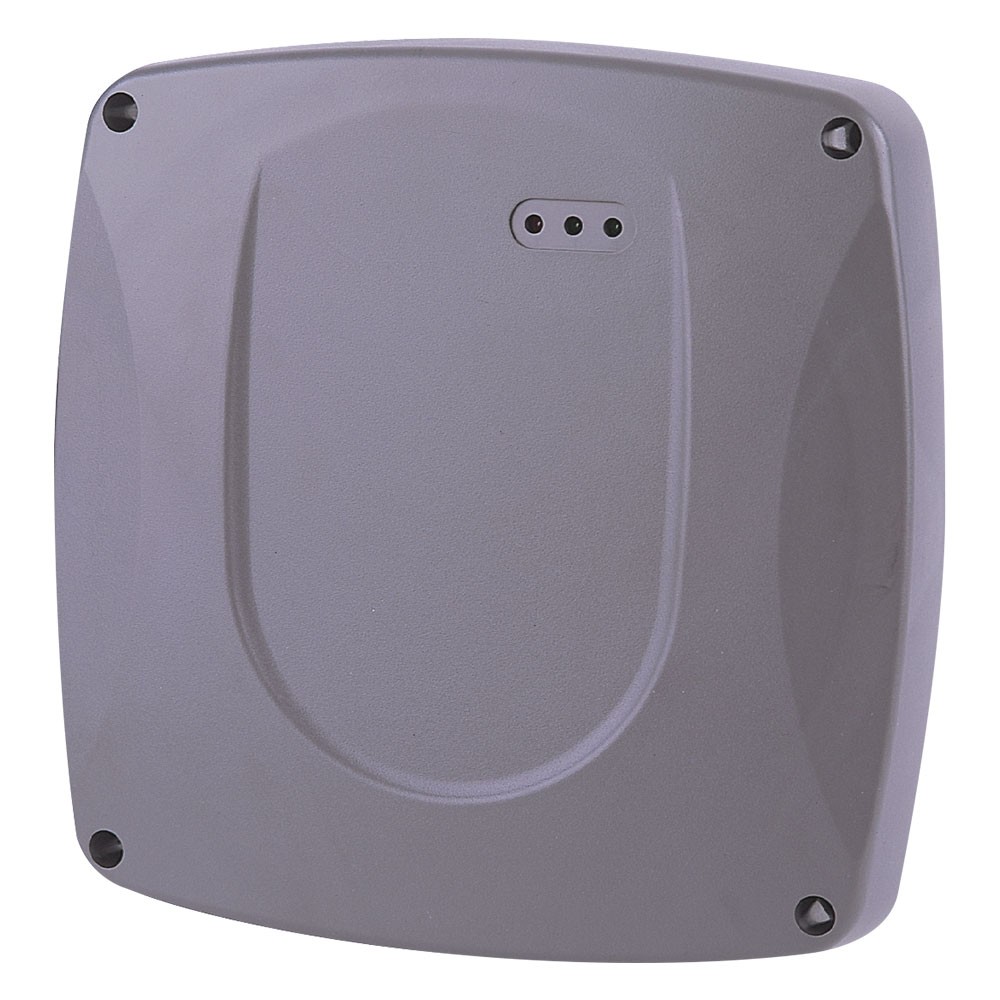

Soyal AR-661U Proximity Access Control Reader


  • Long Range Wiegand Reader (33…66cm)
  • Waterproof Housing
  • Low Power Consumption <4W
  • Dimensions : 230 x 230 x 35mm


This long range Wiegand proximity reader is ideal for car parks and similar locations where the Entry Reader must be capable of being read at a distance. The reader can also be used for various secure buildings, including schools, colleges and universities where staff wish to pass freely to and fro without having to swipe or present a token or card attached to a lapel or lanyard (neck-cord).

The AR-661U can be used as part of an anti passback system with a Controller/Reader AR727H or similar device or as a simple Entry Reader connected to a remote AR-727H acting as a Master Controller.

This reader has operated successfully on cable runs to the Master Controller in excess of 30metres. However, if difficulties are experienced, a Wiegand Repeater AR-WGREP should be fitted to the cable run at 10metre intervals.

Note : This Reader should NOT be mounted directly on or close to a metal surface otherwise the reading range will be severely affected! Suitable stand-off brackets or spacers will overcome this problem.

Additional Information

Manufacturer Soyal
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
