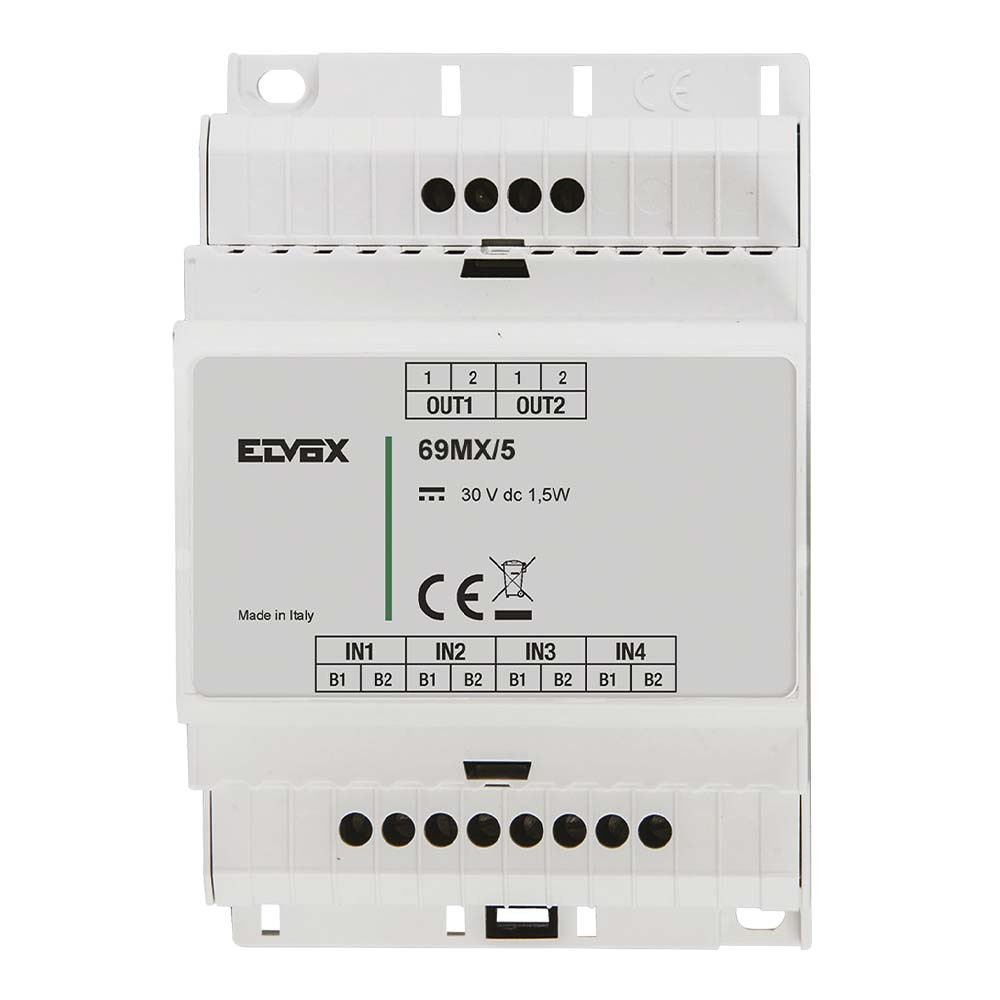

69MX/5 Concentrator for connecting multiple Entrance Panels

Features

  • 4 Inputs and 2 Outputs
  • Elvox 2-Wire (Due Fili Plus)
  • DIN Rail or Surface mounting

Details

The 69MX/5 concentrator is an accessory for Elvox Two-Wire systems that allows connecting in parallel of multiple Entrance Panels (up to 4 entrance panels - at least one panel will be a Video Panel).

The 69MX/5 has 4 inputs and 2 riser outputs. Up to 16 Entrance Panels can be connected by using combinations of 69MX/5 concentrators.

The device can be installed on EN50022 DIN rail (4 module) or wall-mounted using the screws and expansion plugs provided (dimensions 72 x 110 x 60 mm).
For use with Elvox Door Entry 2-Wire (Due Fili Plus) systems.
The 69MX/5 is designed to be used with a Cat5 cable with a characteristic impedance of 50 Ohm.

Additional Information

Manufacturer Vimar - Elvox
Part Numbers 69MX/5

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
