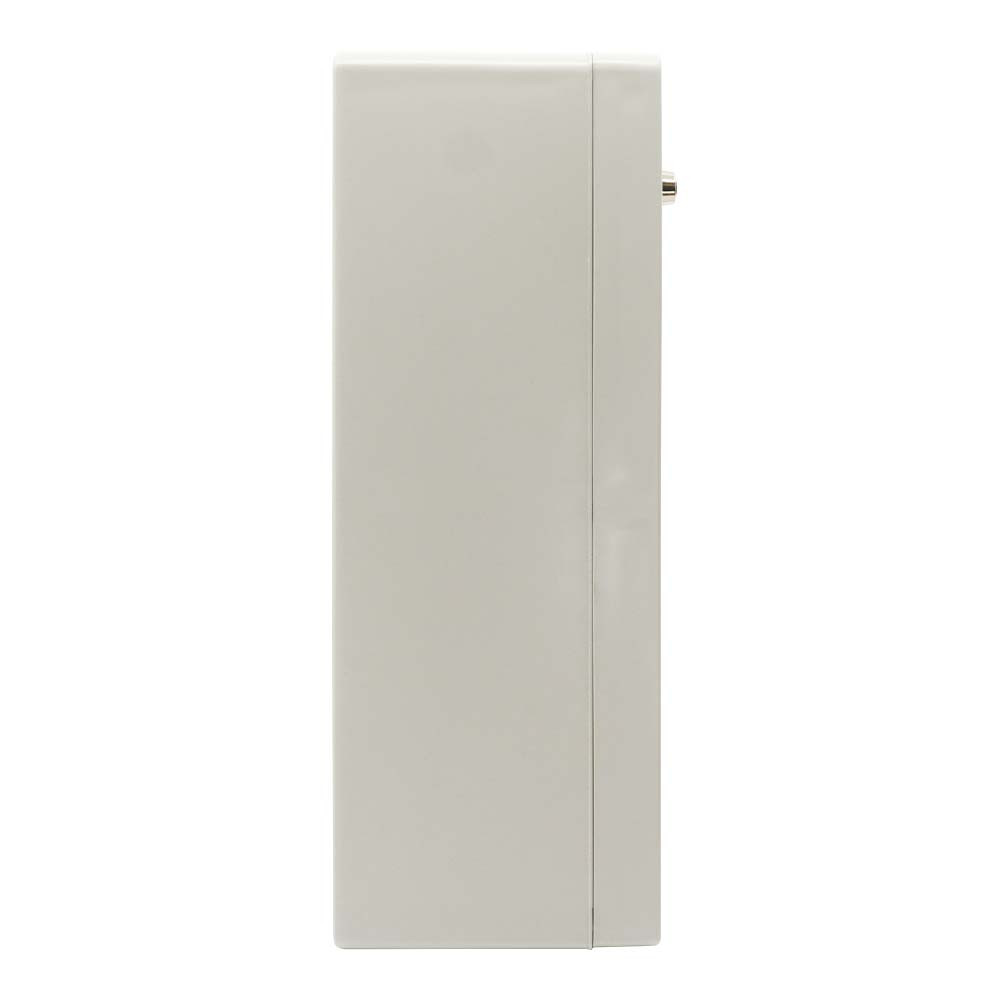

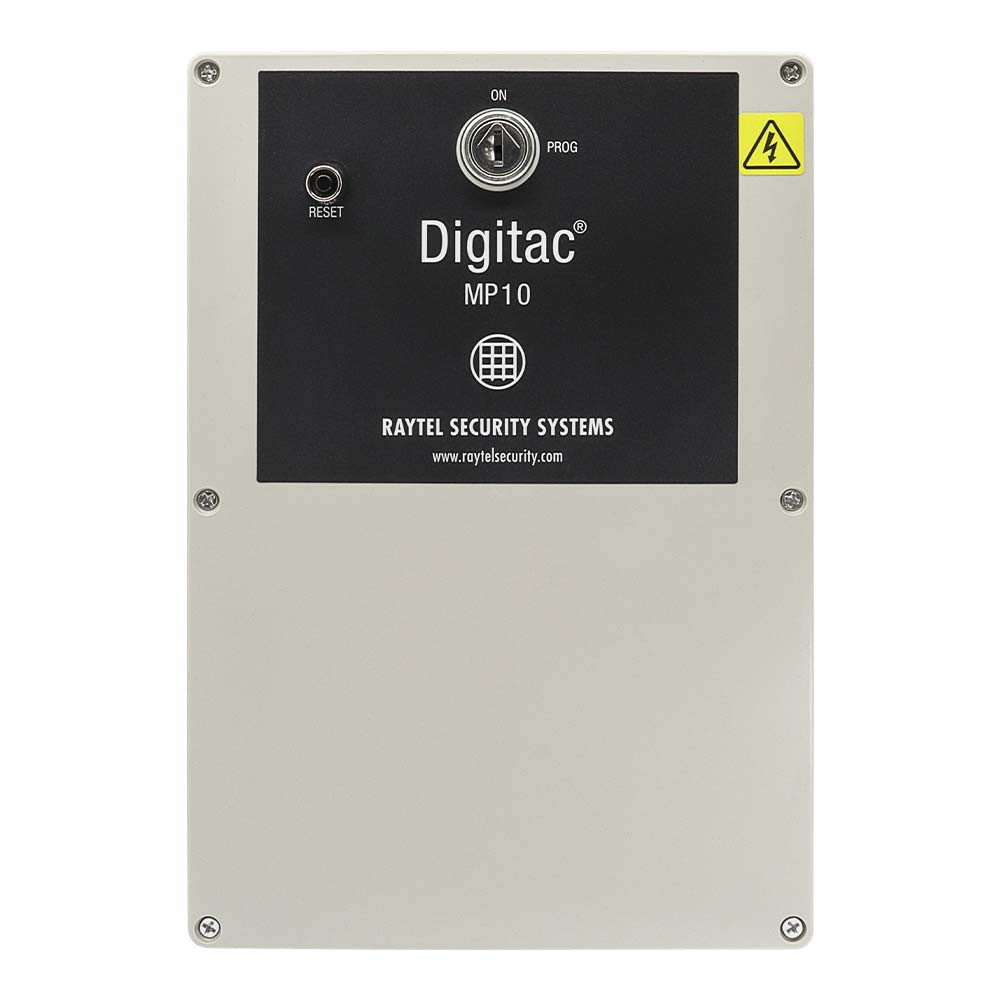

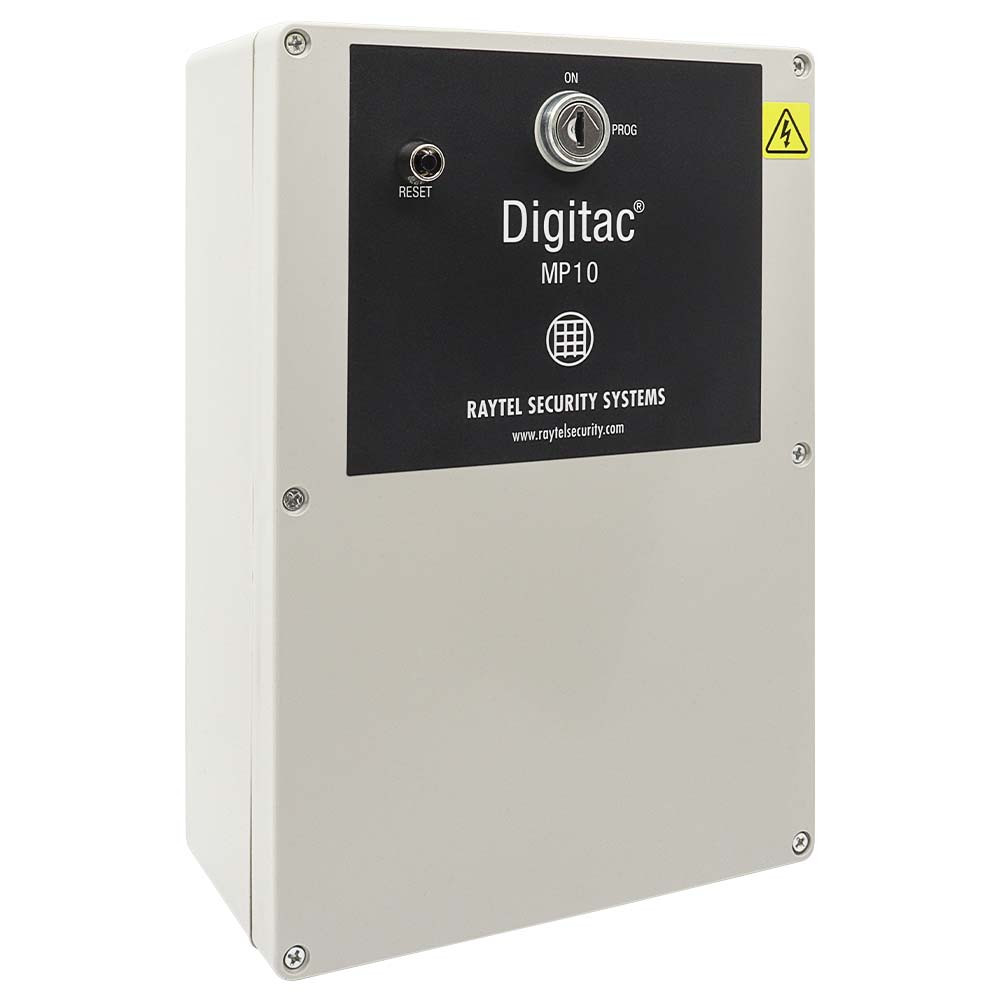

MP10 Digitac Access Controller

The Raytel Digitac® MP10 is a single-door controller. It adds a high level of security with simple installation, programming and operation.

The MP10 is designed to function with a keypad from the Raytel Digitac® range which is available to purchase separately.

The MP10 has been designed to replace the 1M and MP1 controllers. Up to 10 unique 4 to 7-digit access codes can be stored. Each access code will start with a different digit to recognise varying security levels.

An internal exit button can be connected to either provide an exit with timed lock release or for as long as the exit button is pressed.

Time zone control can be used to restrict the use of all codes with more than 4 digits (this requires an external time clock which is available to purchase separately). An error count alarm can be configured if needed.

• Access controller with 12V DC PSU included
• Up to 10 unique access codes (4 – 7 digits)
• Clean contacts for lock release
• Instant or timed access via exit button
• Surface mounting
• Door monitoring (if required)
• Error count (if required)
• Duress function (if required)
• Time Zone input (if required) *
• External Raytel Keypad required
• Battery back up facility
• Designed to replace existing Raytel Dig1M and MP1 controllers
