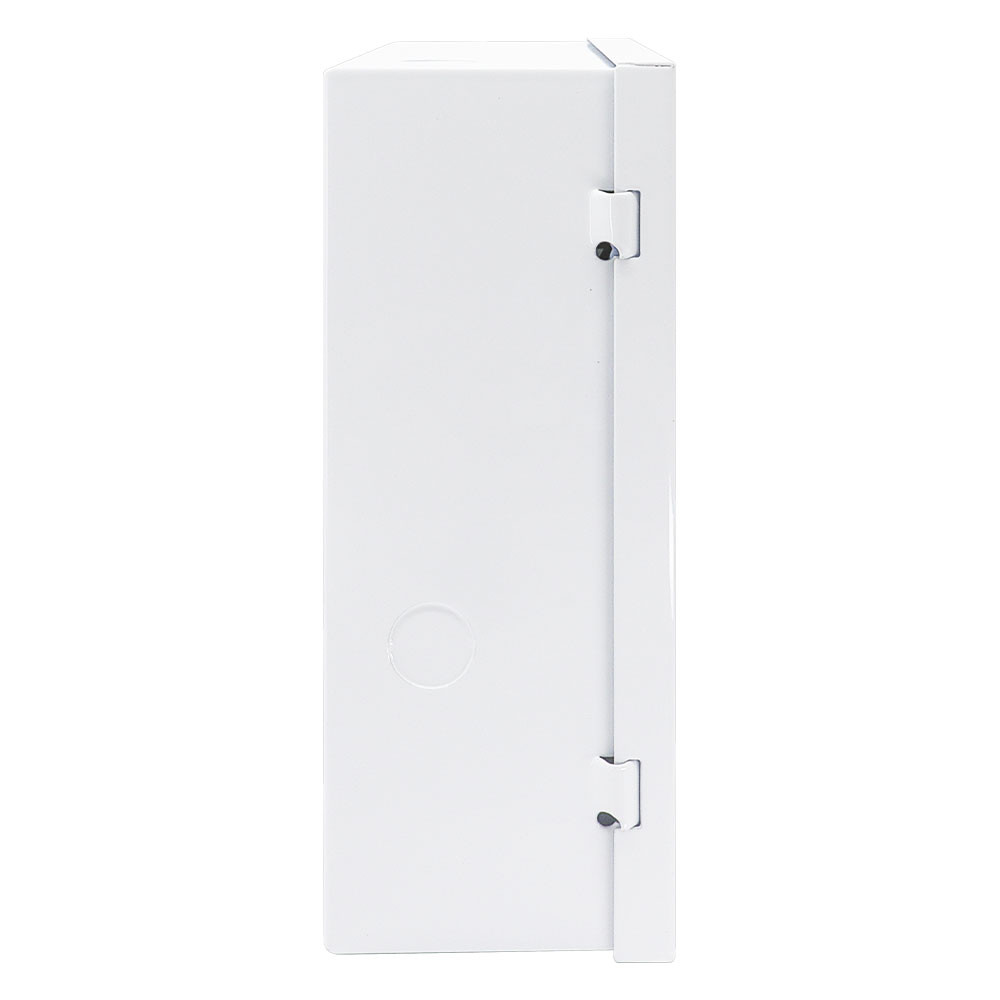

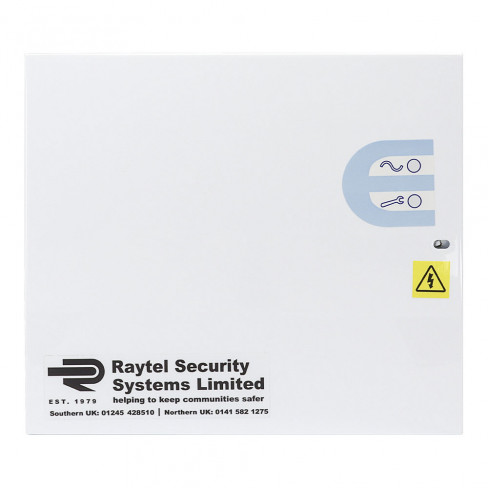

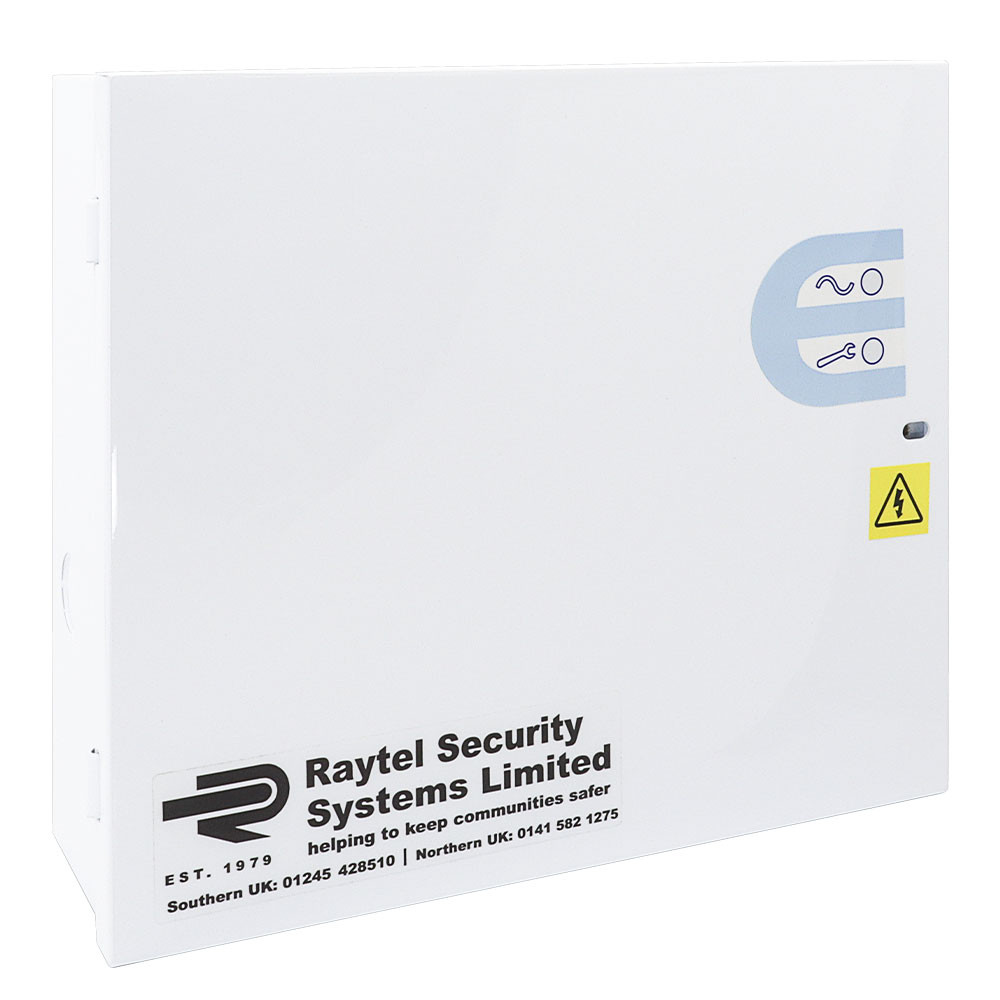

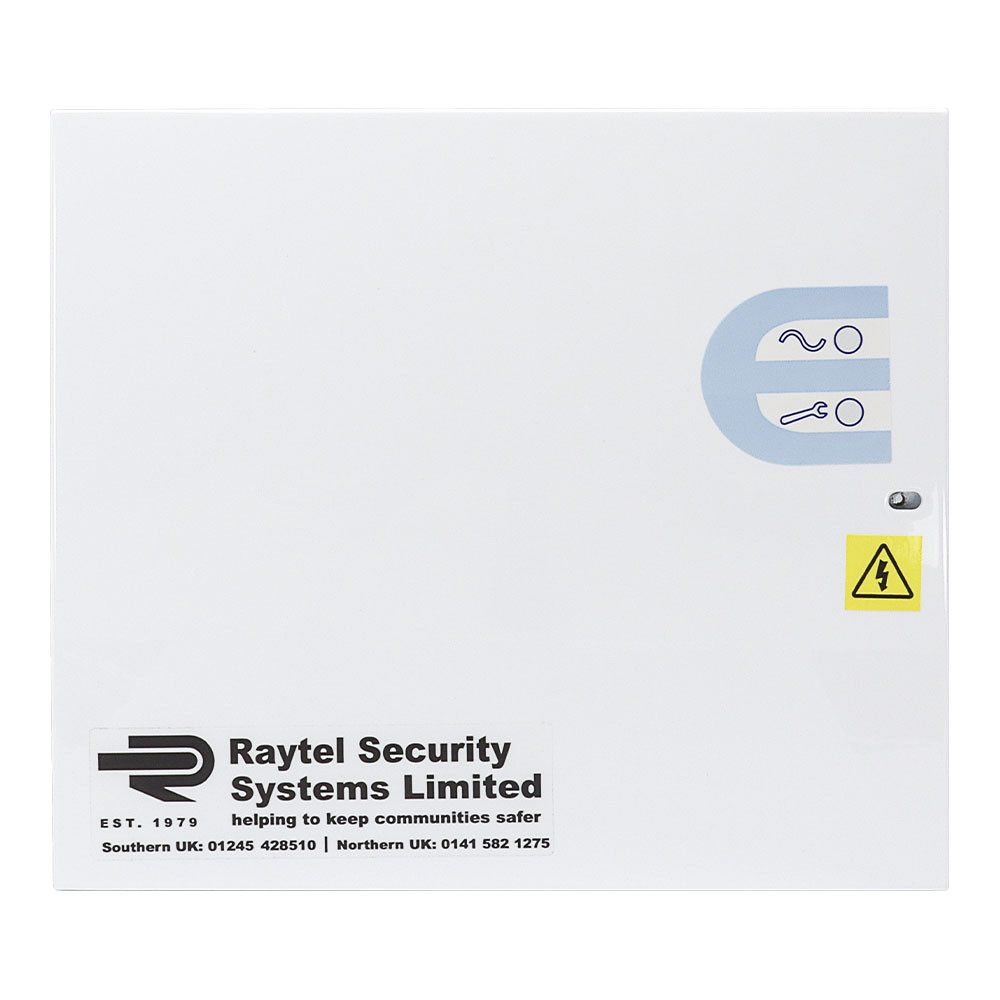

G13801N-A-RAYTEL 12V DC Power Supply

Features

  • 13.8V DC output
  • Switch mode technology
  • 90 – 264V AC Input voltage range
  • Facility for internal battery backup
  • Electronic overload protection
  • Designed for Access Control
  • Visible indication of status

Details

The Raytel 13.8V DC Power supply has a fully regulated output with low ripple and noise characteristics. The power supply utilises switch mode technology to produce efficiency of 80 – 87%. Inputs and outputs are protected with fuses.

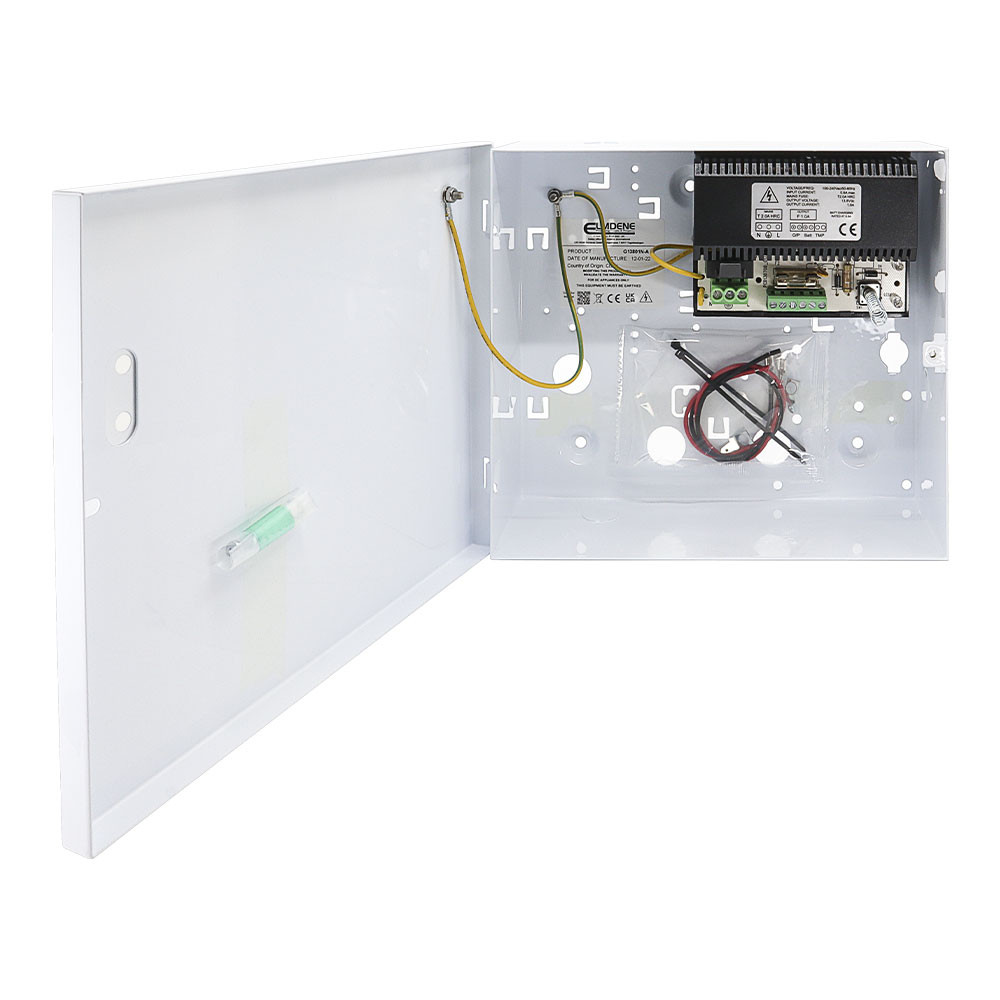

The front panel incorporates indicators for mains and faults. The power supply can supply its full rated current of 1 Amp with an additional 0.5 Amp for battery charging (if fitted).

There is sufficient space within the enclosure for a 12V 7Ah battery.

Additional Information

Manufacturer Raytel
Part Numbers G13801N-A-RAYTEL
