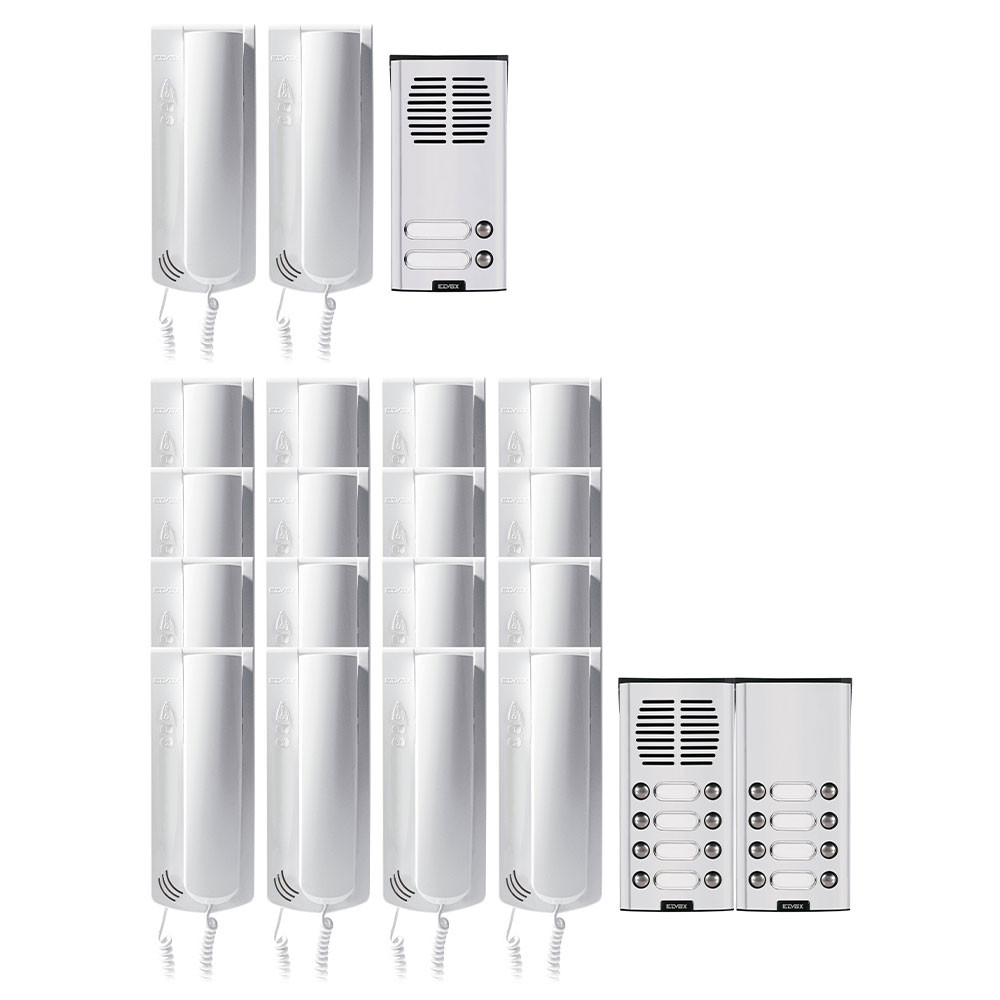

Elvox K62K0.xx Audio Door Entry Kits - 2 Door to 16 Door

Features

ELVOX 2 Way to 16 Way Door Entry Sound System kit with 8870 Series apartment handset and 8000 series door entrance panels.

Details

This is a two to sixteen residence Sound System interphone kit. The Entrance Panel is surface mounted with an aluminium cover plate in light grey. The 62K0 handsets are specific to the kit and include one functional button for lock release. The Entrance Panel generates an electronic call tone at the handset. The Entrance Panel provides an AC lock output.

Specifications

  • System : Sound System

  • Panel Finish : Aluminium painted light grey
  • Panel Type : Two call buttons with Name windows
  • Panel Dimensions : 100mm W x 205mm H x 40mm D
  • Speech Unit Type : 930G with Audio in /out level adjustments.

  • Handset : 62K0
  • Handset Dimensions : 75mm W x 220mm H x 60mm D
  • Handset Material : Moulded high impact plastic

Elvox K62K0.xx Audio Door Entry Kits Contain:-

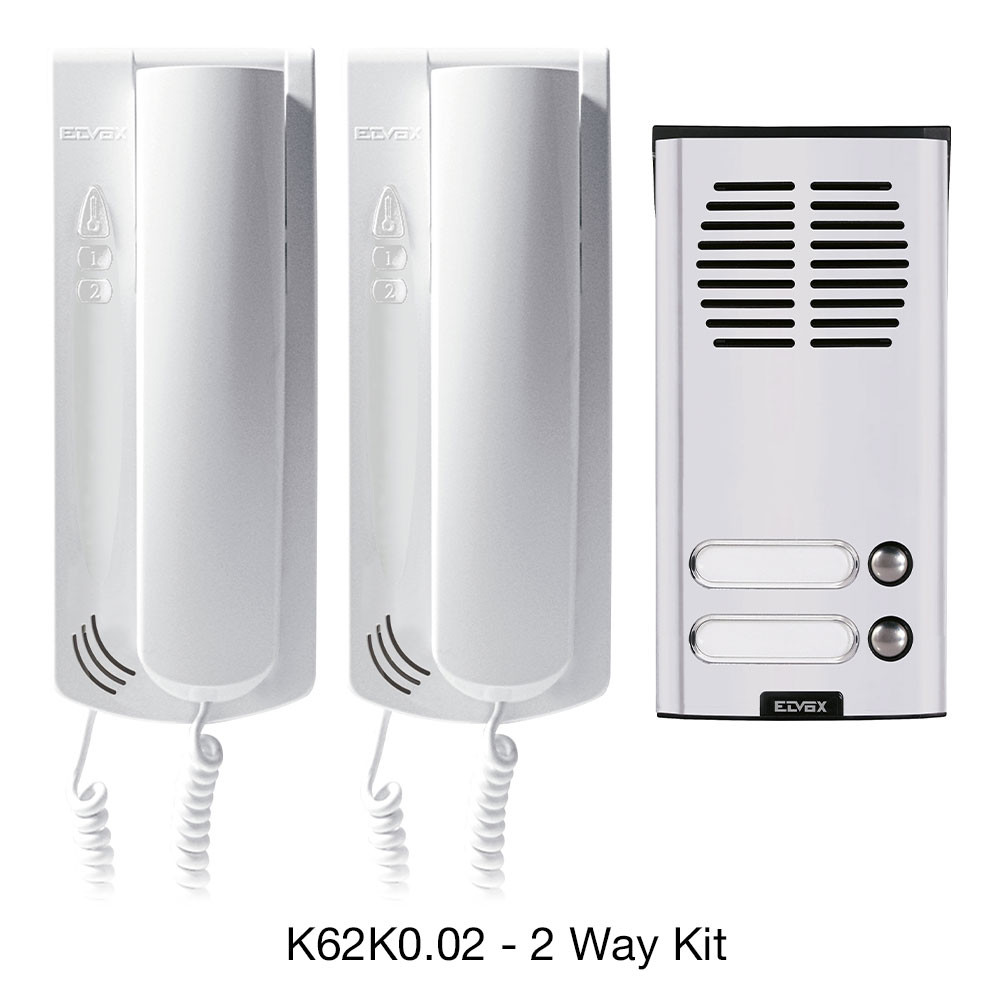

K62K0.02 - 2 Way Kit (ELVOX Door Entry / Sound System) - Stocked

  • 1x 8102/19 Surface Entrance Panel (2 Button)
  • 1x 930G Speech unit
  • 2x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

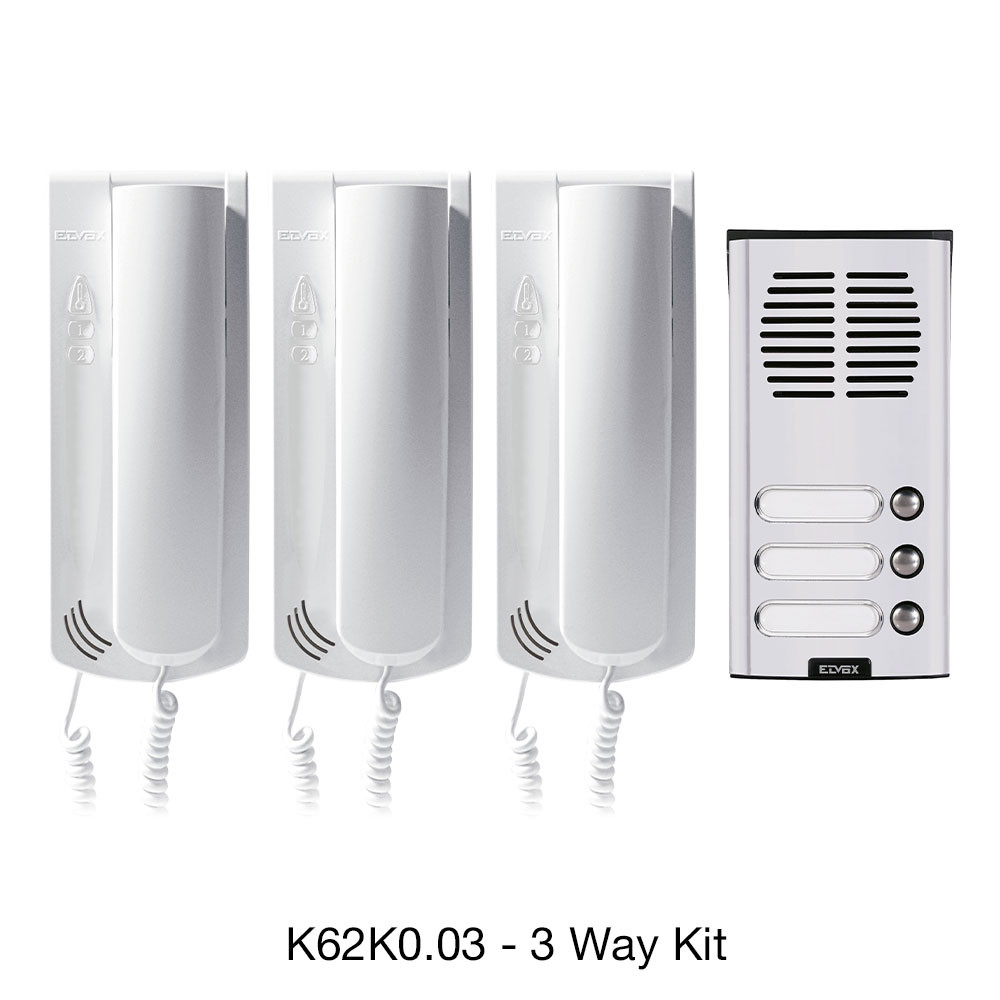

K62K0.03 - 3 Way Kit (ELVOX Door Entry / Sound System) - Stocked

  • 1x 8103/19 Surface Entrance Panel (3 Button)
  • 1x 930G Speech unit
  • 3x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

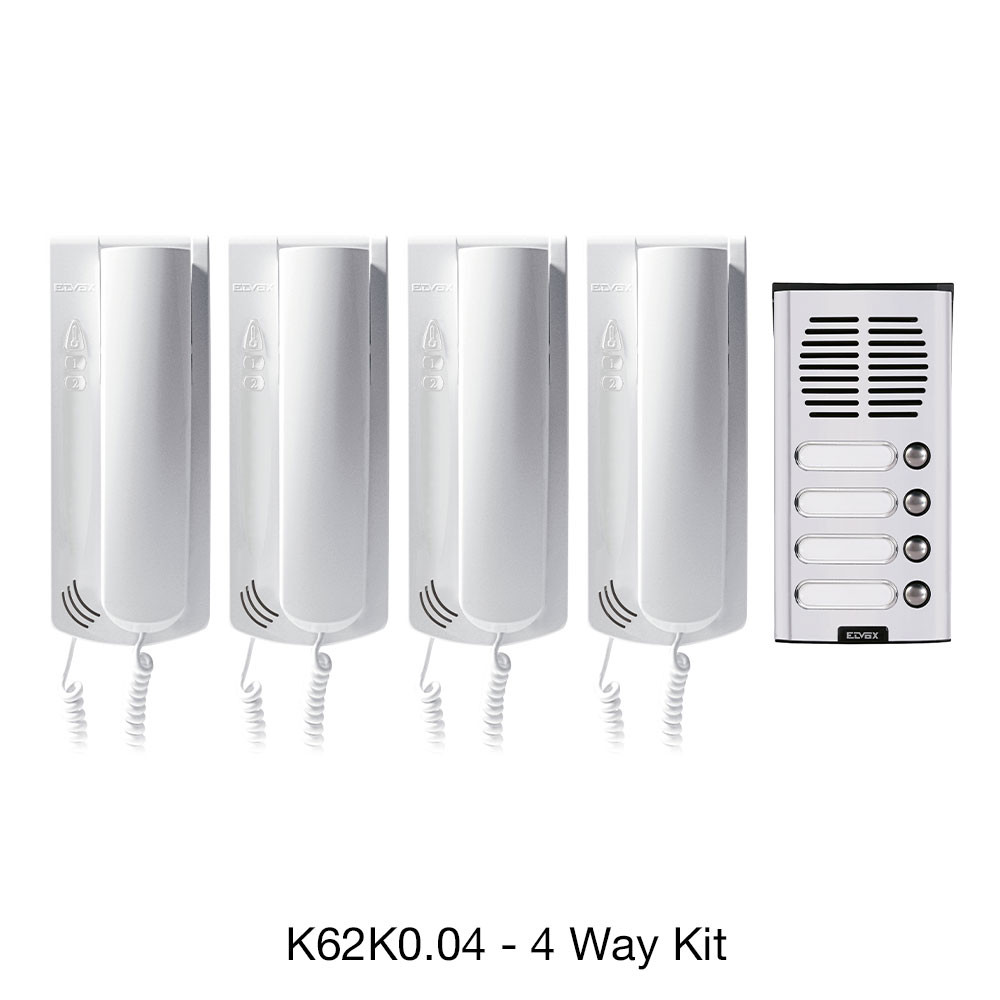

K62K0.04 - 4 Way Kit (ELVOX Door Entry / Sound System) - Stocked

  • 1x 8104/19 Surface Entrance Panel (4 Button)
  • 1x 930G Speech unit
  • 4x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

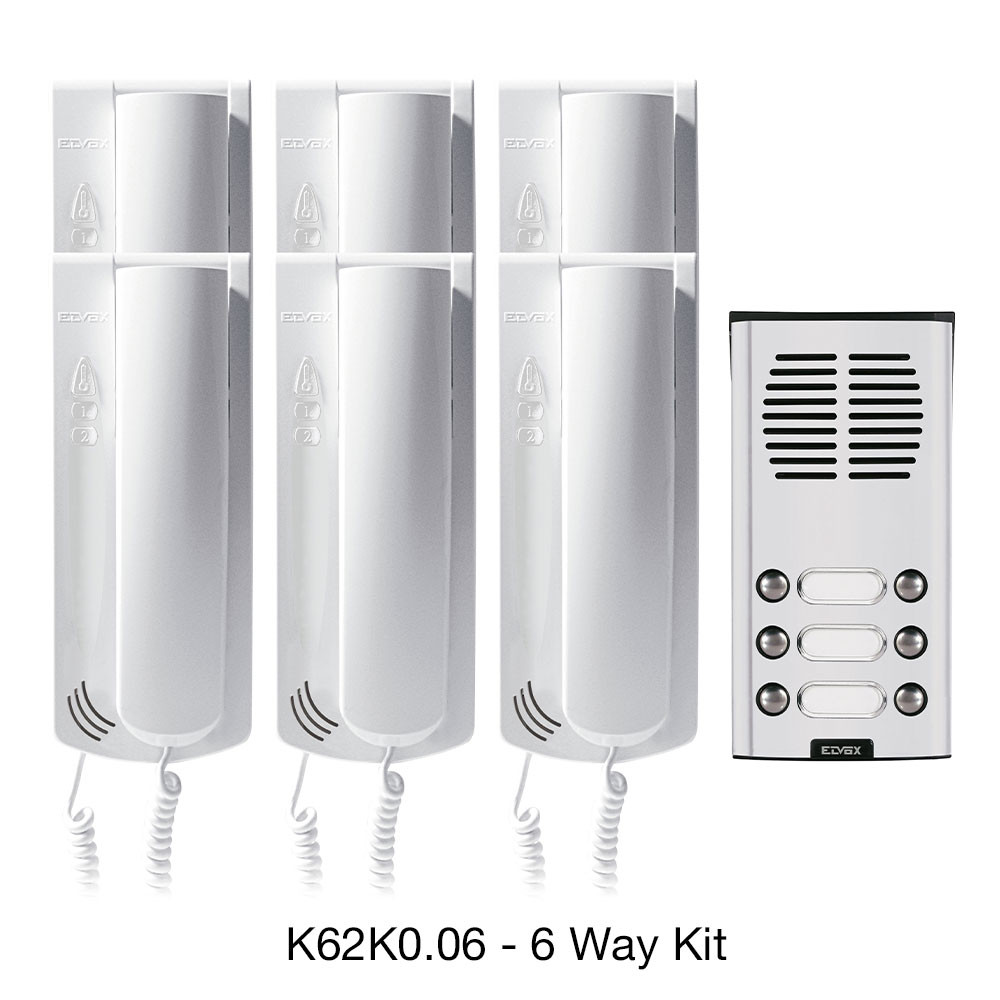

K62K0.06 - 6 Way Kit (ELVOX Door Entry / Sound System) - Stocked

  • 1x 8116/19 Surface Entrance Panel (6 Button)
  • 1x 930G Speech unit
  • 6x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

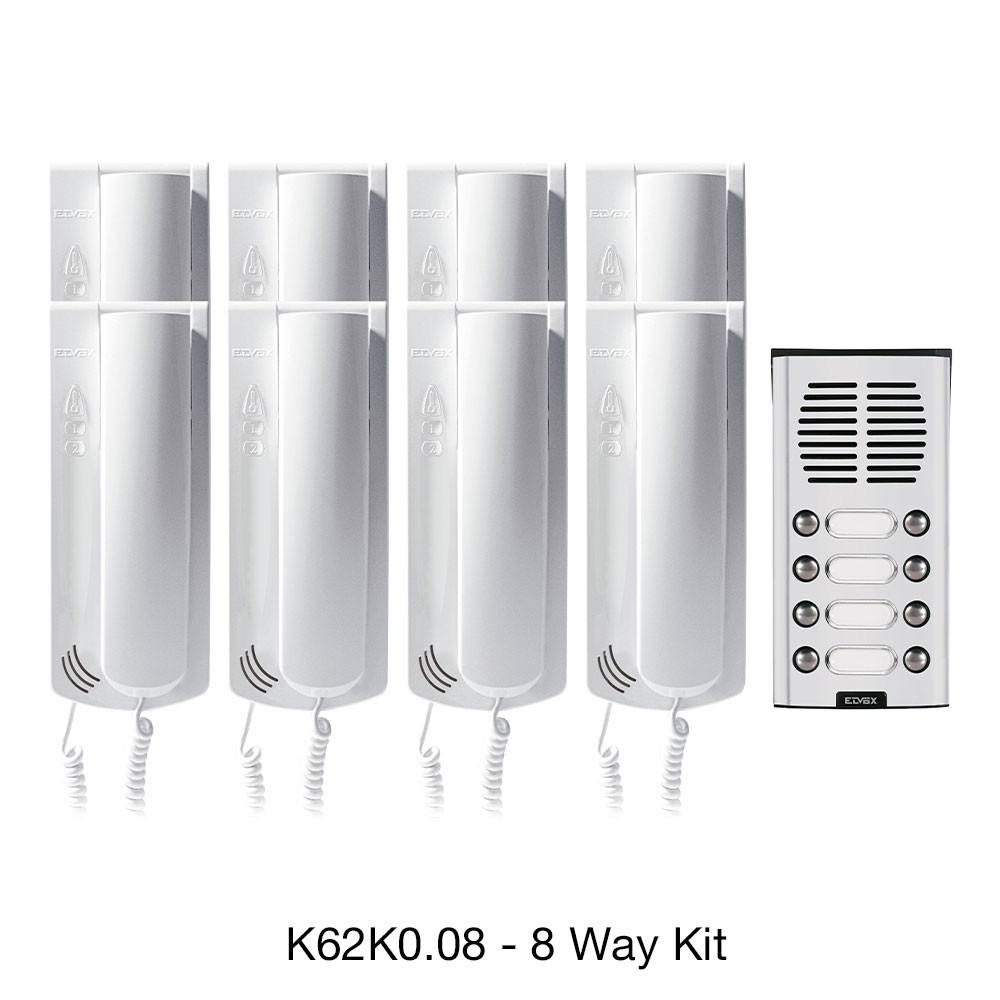

K62K0.08 - 8 Way Kit (ELVOX Door Entry / Sound System) - Stocked

  • 1x 8118/19 Surface Entrance Panel (8 Button)
  • 1x 930G Speech unit
  • 8x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

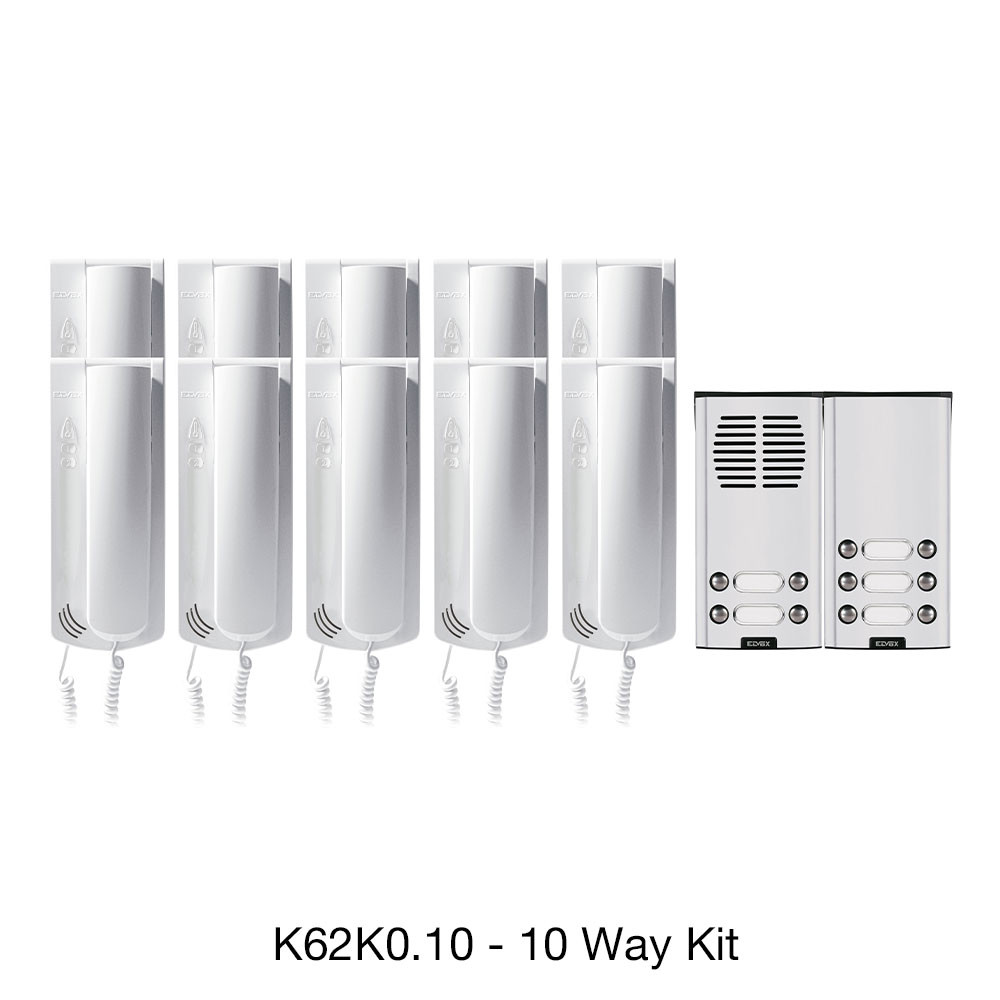

K62K0.10 - 10 Way Kit (ELVOX Door Entry / Sound System) - TO ORDER

  • 1x 8114/19 Surface Entrance Panel (4 Button)
  • 1x 8166/19 Surface Entrance Extension Panel (6 Button)
  • 1x 930G Speech unit
  • 10x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

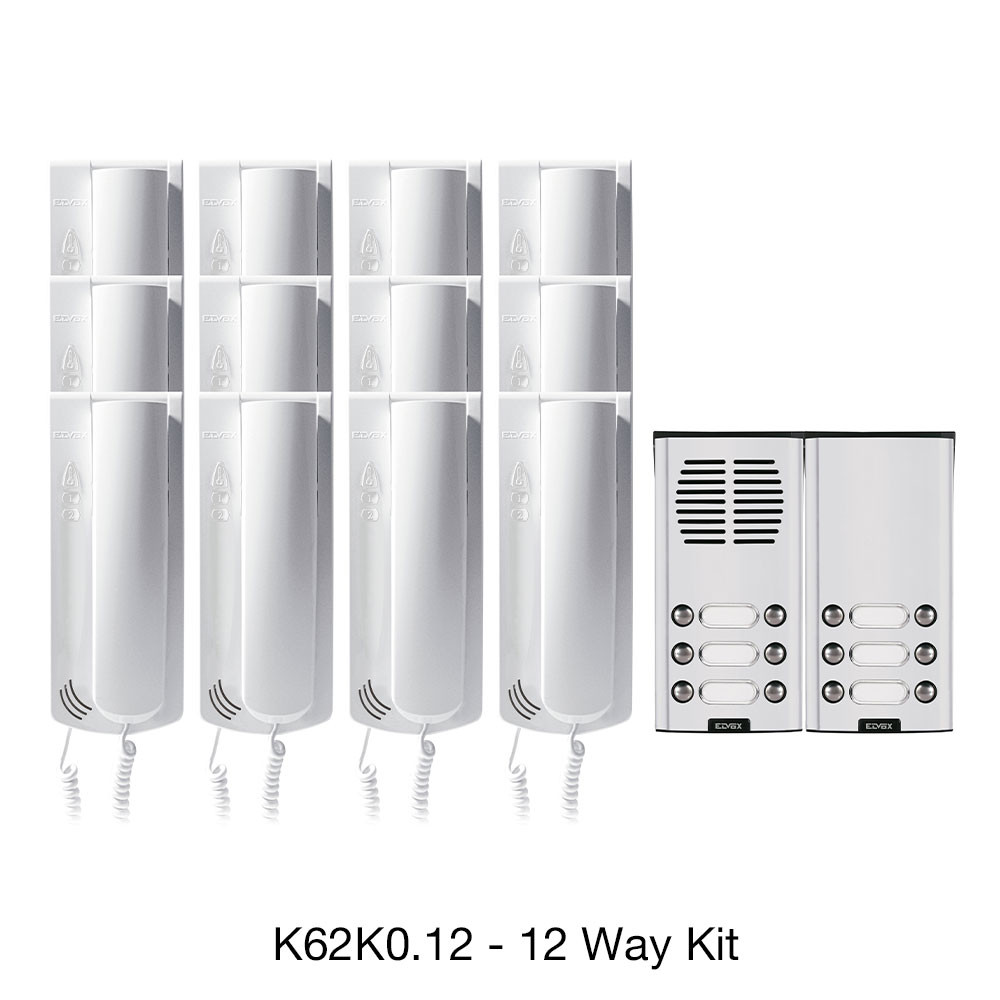

K62K0.12 - 12 Way Kit (ELVOX Door Entry / Sound System) - TO ORDER

  • 1x 8116/19 Surface Entrance Panel (6 Button)
  • 1x 8166/19 Surface Entrance Extension Panel (6 Button)
  • 1x 930G Speech unit
  • 12x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

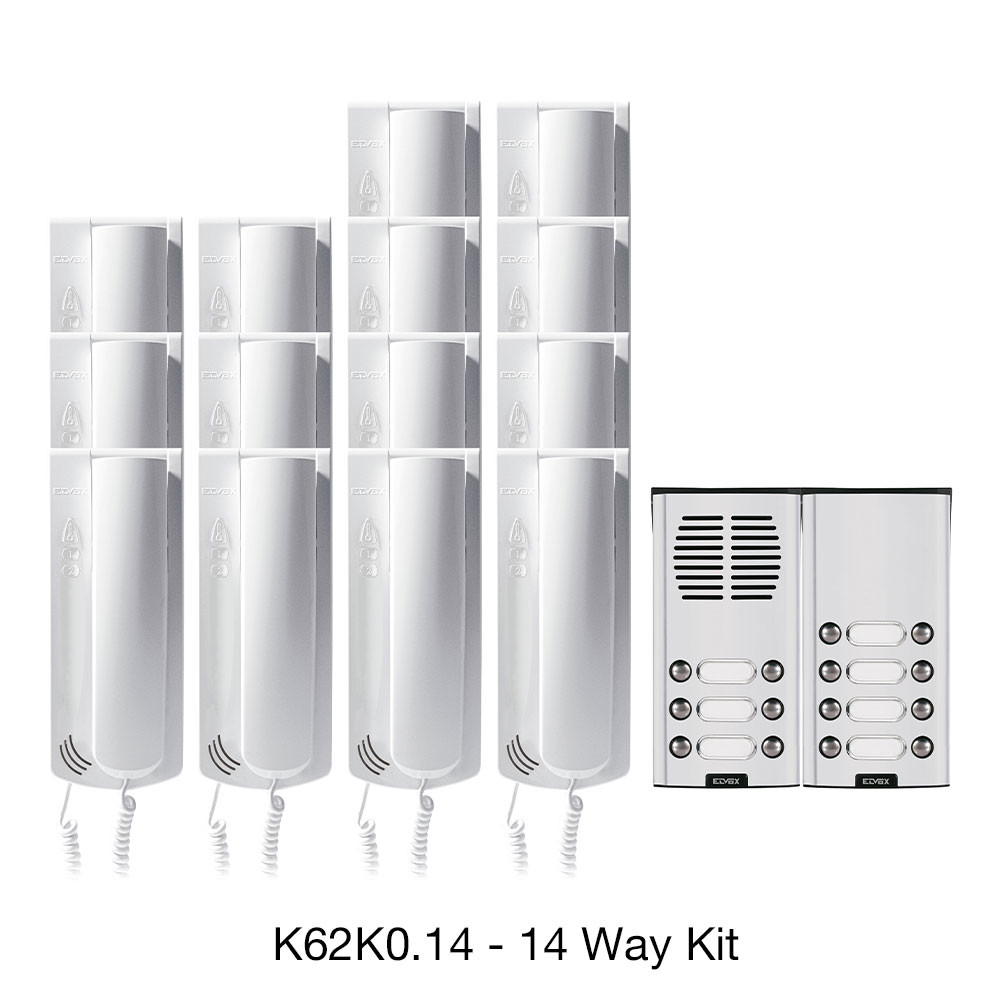

K62K0.14 - 14 Way Kit (ELVOX Door Entry / Sound System) - TO ORDER

  • 1x 8116/19 Surface Entrance Panel (6 Button)
  • 1x 8168/19 Surface Entrance Extension Panel (8 Button)
  • 1x 930G Speech unit
  • 14x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

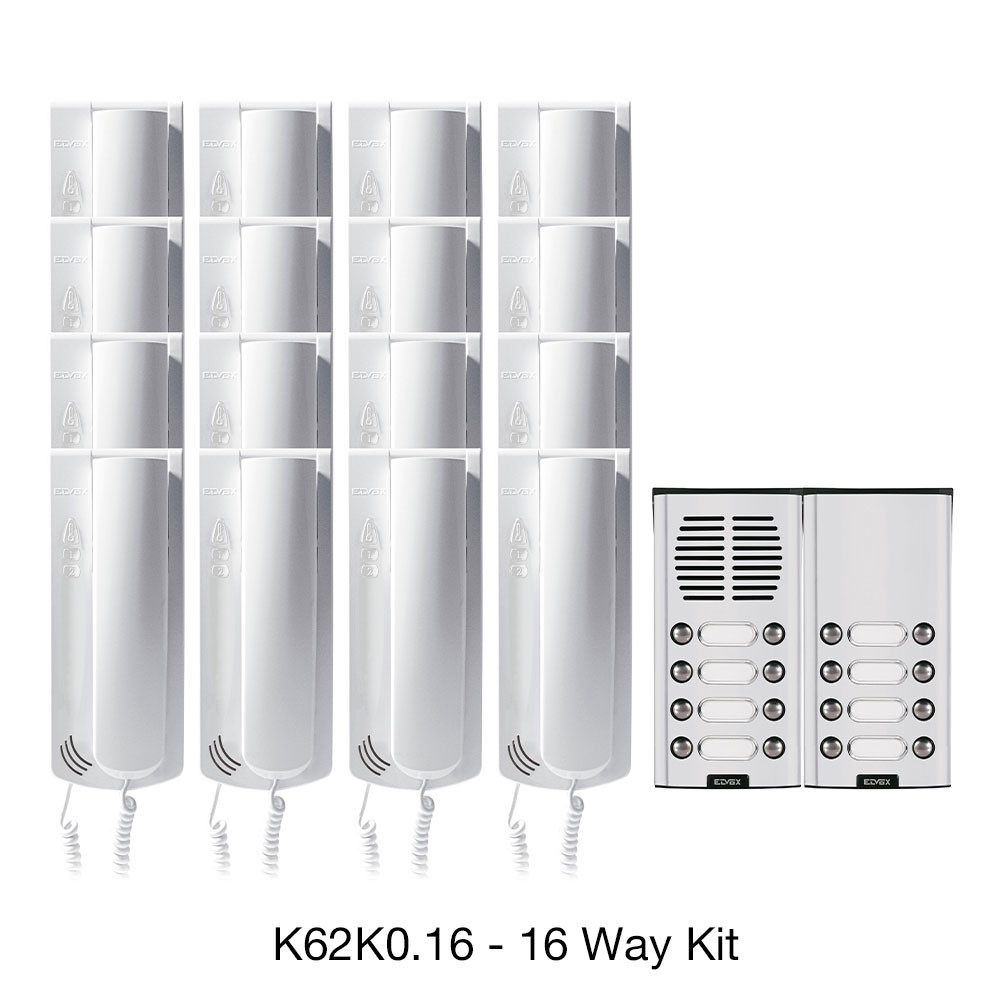

K62K0.16 - 16 Way Kit (ELVOX Door Entry / Sound System) - TO ORDER

  • 1x 8118/19 Surface Entrance Panel (8 Button)
  • 1x 8168/19 Surface Entrance Extension Panel (8 Button)
  • 1x 930G Speech unit
  • 16x 62K0 white Petrarca Interphone Handset
  • 1x 40102 transformer

Additional Information

Manufacturer Vimar - Elvox
Part Numbers K62K0.02, K62K0.03, K62K0.04, K62K0.06, K62K0.08, K62K0.10, K62K0.12, K62K0.14, K62K0.16

Video

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
