Elvox K40607.01 IP Video Door Entry Kit - 1 Door, Colour


  • 7" LCD Display with 800 X 480 pixel resolution
  • Hands-free Communication
  • Visual Call indicators
  • Capacitive Touch Screen display
  • Built In Wi-Fi Calls can be transferred to smartphone & tablet
  • Clear Audio
  • Built-in Hard of Hearing function
  • Sleek design Entrance Panel - just 14mm deep


Elvox K40607.01 IP Video Door Entry Kit Contents:

  • 1 x Pixel series 1-module entrance plate for flush mounting 41131.01 grey, with 1 button
  • 1 x audio/video electronic unit 41006
  • 1 x mounting box 9191 for Pixel series entrance plate
  • 1 x Tab 7S IP surface mounting hands-free video entryphone (White LCD colour monitor 40607, PoE power supply not supplied)

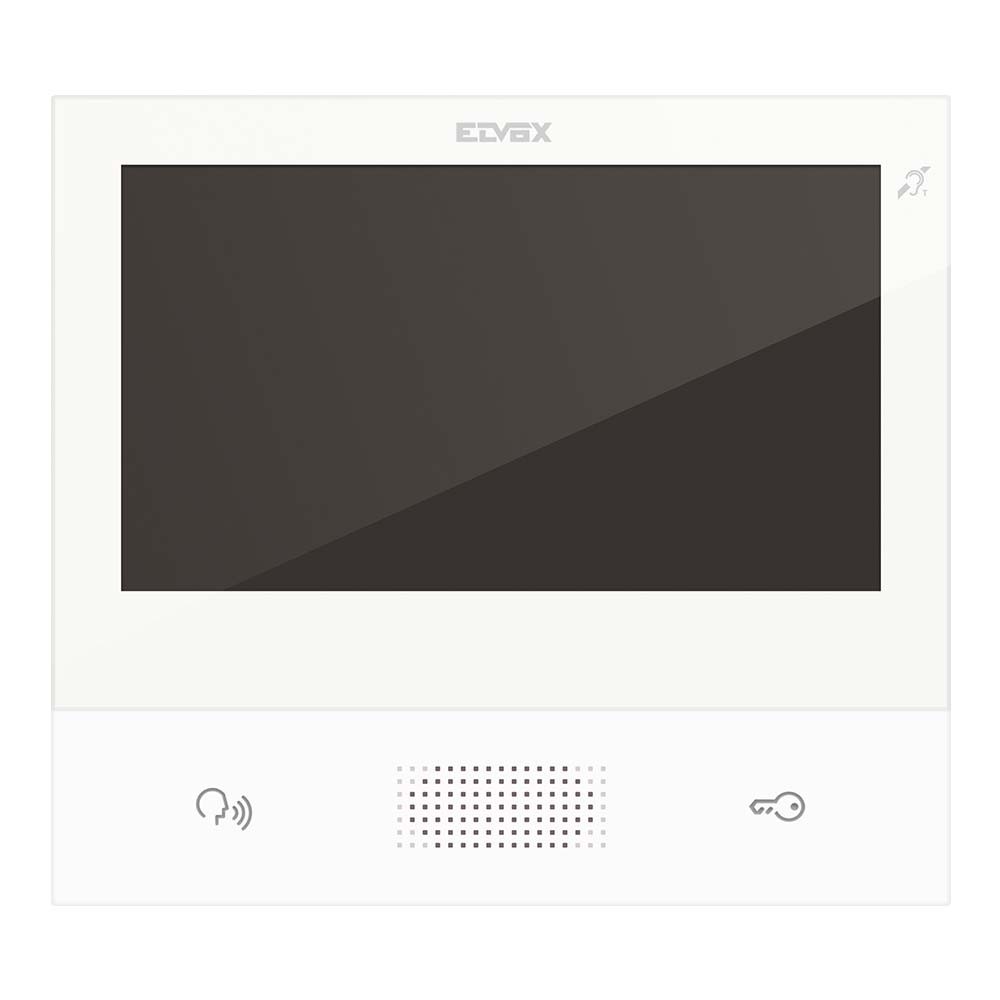

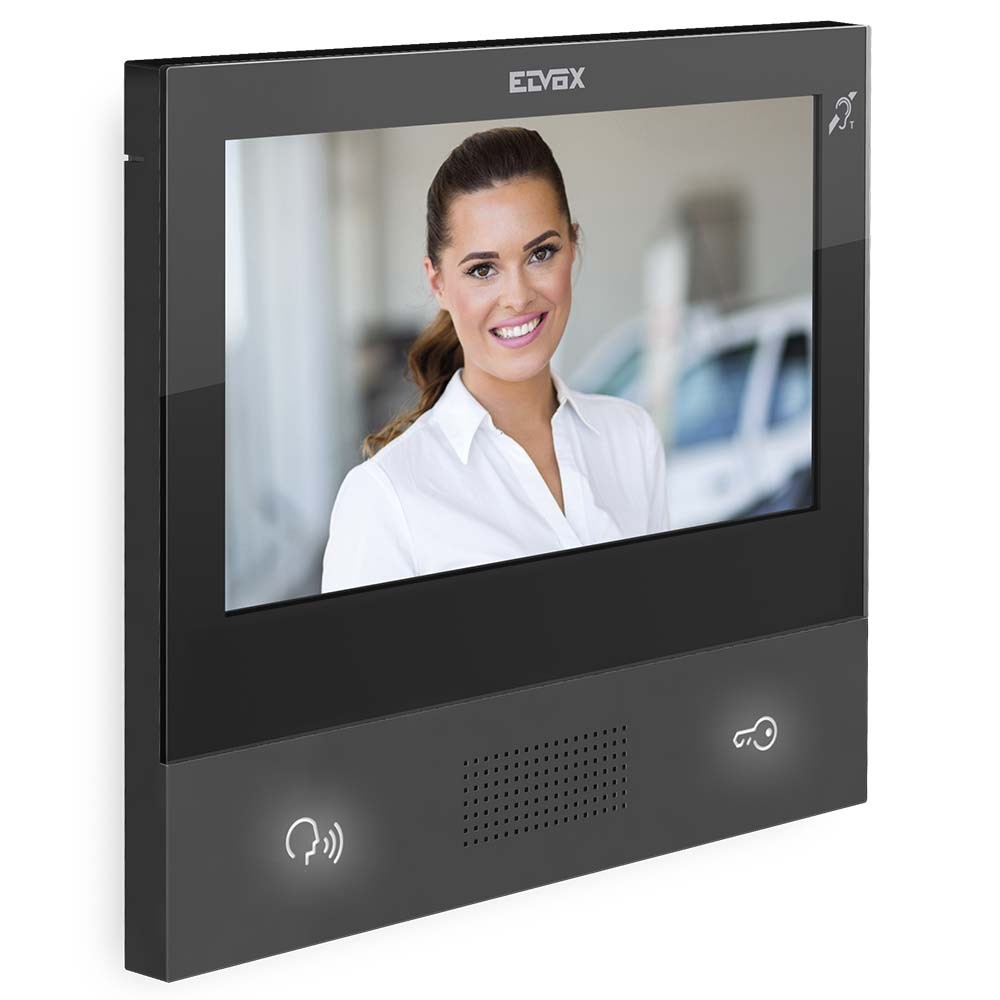

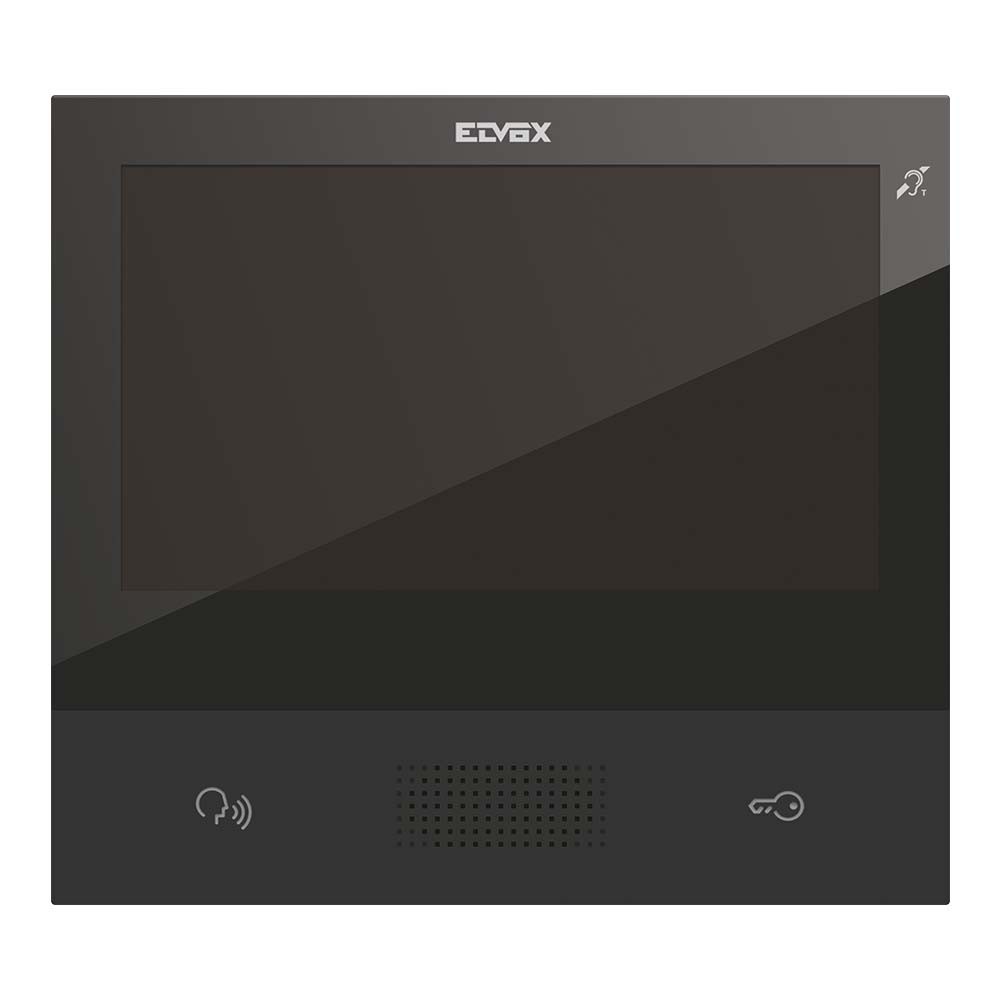

Apartment Device

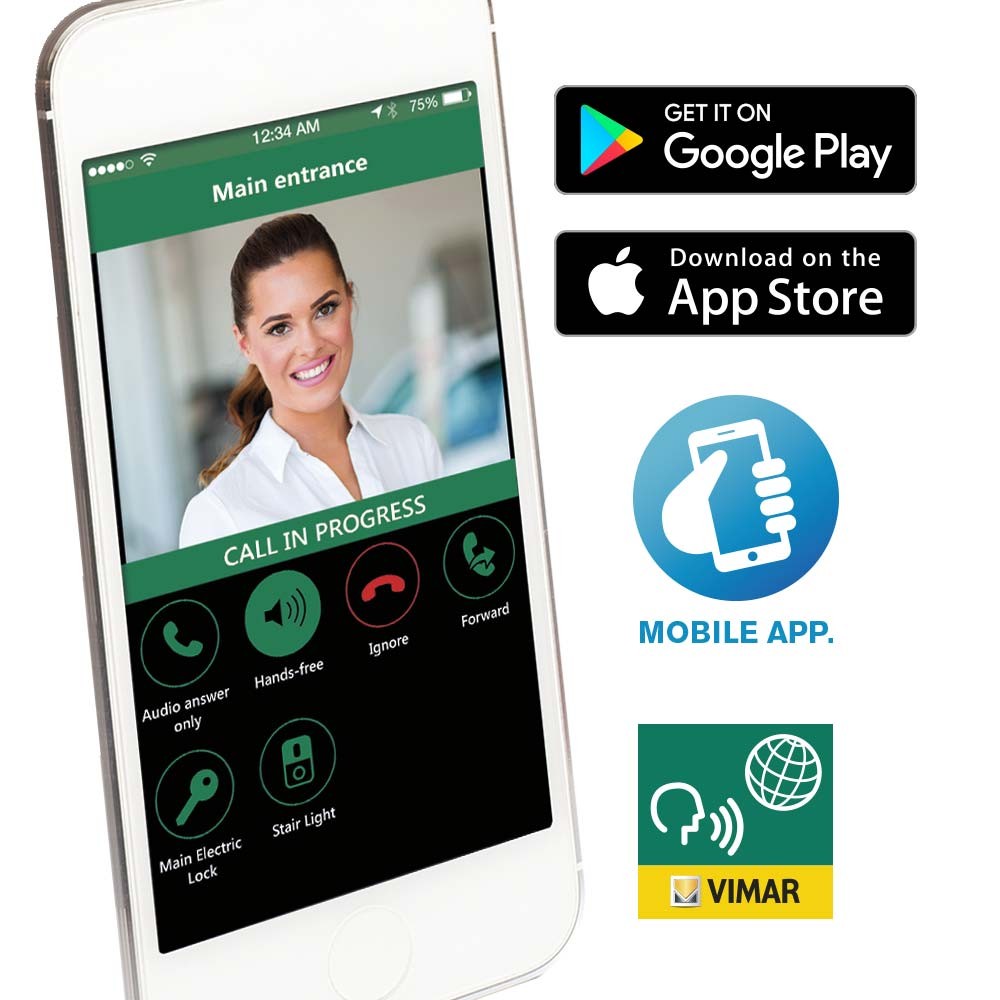

The Elvox TAB 7S from Vimar is elegantly designed video door entry monitor with revolutionary functions. In addition to the usual video door entry phone functions, the TAB 7S also has built-in Wi-Fi, a video door app allowing call repetition on your smartphone and many other functions, ensuring total control even when out and about.

With built-in Wi-Fi. You can answer the entry phone from anywhere in the home. As a cloud-connected device, the TAB 7S offers innovative and practical remote management of numerous tasks, whether simply answering the front door or handling many other more complex functions. E.g. Intercom calls and CCTV monitoring.

The monitor is also equipped with a tele-loop function for hearing aid users.

Entrance Panel

The new Elvox Pixel Series modular entrance panels with a slim & modern design. Elegant and versatile.

The new Pixel entrance panel comes in four colour finishes in the standard version – grey, slate grey, anodized grey and white - and one finish – sable grey - in the Heavy version. The latter, with a die cast aluminium frame and Zamak front panel, not only guarantees the protection rating IP54 of the standard version but is also knock resistant, with protection rating IK10.

Protruding just 14 mm from the wall and 100 mm wide, Pixel is the ideal solution for elegant installations even in confined spaces.

The pixel range comes through louder and clearer in audio or audio/video and the 3.5" colour LCD display which, with an 80° horizontal viewing angle, ensures excellent reading even in backlit conditions.

With incorporated hard of hearing function, for fitting up to four buttons in double file, the audio/video module is a turnkey product for installations in small residential settings. It is the heart of the entrance panel, and can be expanded as you wish by adding expansion modules or a display module, to suit your installation requirements. It also has a wide angle lens camera with 525 TVL recording resolution. A lighting LED that self-adjusts according to external brightness makes the person at the door clearly visible, without glare for them or you.

The results are always excellent. The new Elvox entrance panel can be used to create different combinations according to need. Starting from one, two or three vertical modules, you can create up to three rows horizontally, in a composition of nine modules.

And starting from a single audio/video module, you can expand your entrance panel up to a maximum of 84 buttons, satisfying even the greatest installation needs. With three different types of buttons – double axial, single axial or single rocker - to guarantee a wide range of call solutions.

Designed to ensure quick, functional installation, Pixel can be maintained from the front, without having to remove the panel. Special hinges support the modules even when they are open, so you can work with your hands free.

A Mini-USB plug on the front is used to connect a pc for configuration via the Save-Prog software.

With Pixel everything is managed perfectly, right down to the finest detail.

Additional Information

Manufacturer Vimar - Elvox


Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
