More Views

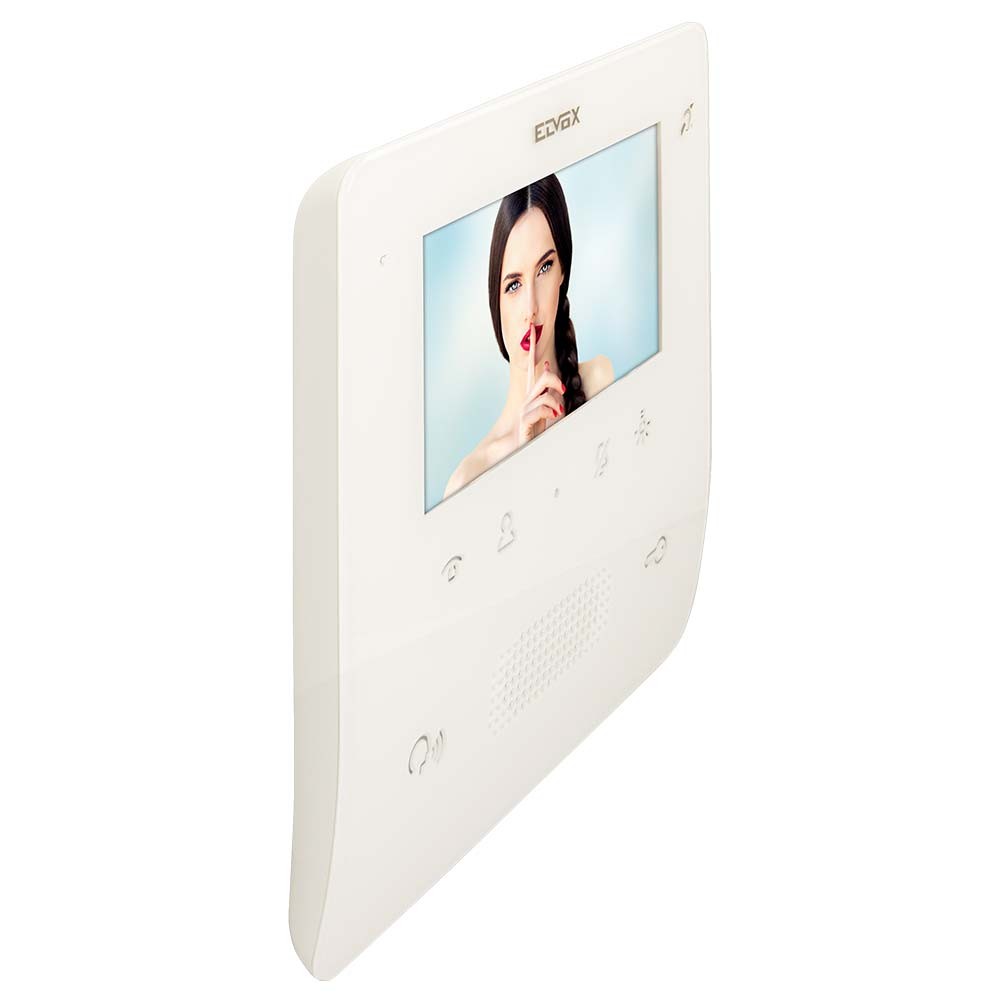

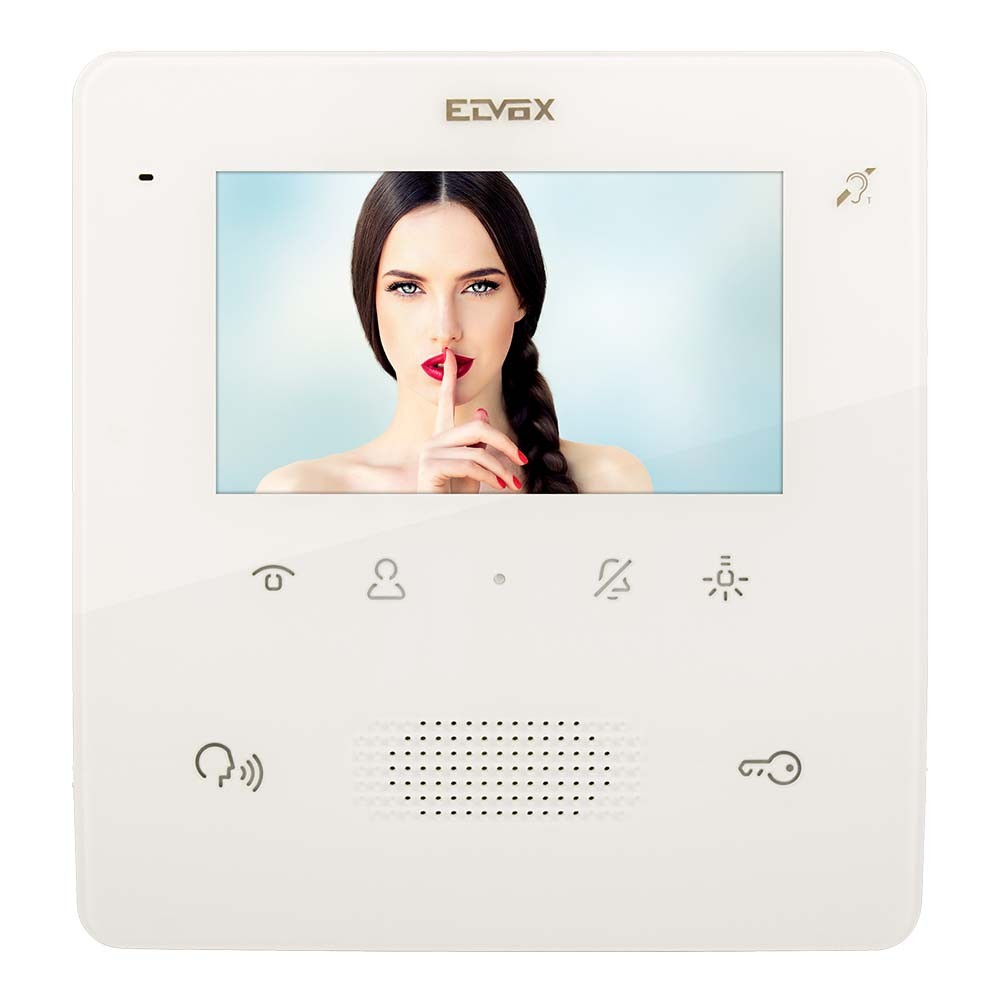

Elvox Tab 7559 Audio/Video Door Entry 'Hands Free' Handset

Features

  • Wall-mounted, with metal bracket, in box: circular 2M (Vimar V71701), 3M (Vimar V71303, V71703) horizontal/vertical and square British standard
  • LCD 4.3" 16:9 display, resolution 480x272 pixels
  • Minimum video signal level on the bus for reception: -20 dBm
  • Capacitive touch keypad with backlit symbols
  • Powered from BUS terminals 1, 2 - nominal voltage 28Vdc
  • Power consumption:
    - in standby: 17 mA
    - maximum current: 280 mA
  • Ambient class : Class A1 (indoor use)
  • IP30 protection rating
  • Operating temperature : –5°C…+40°C (indoor use)
  • Electronic ringtone with 10 different melodies
  • Input for landing call
  • Dimensions: 155 x 145 x 23.5 mm

Details

Elvox TAB Free the hands-free video door entry system – 7559 series

Wall-mount Tab 7559 series hands-free video entryphone for Due Fili Plus system with 4.3" LCD colour display, a loudspeaker for calls, a capacitive keypad for entryphone functions (unlocking, self-starting, auxiliary services, volume, brightness and contrast controls) and intercom calls.

Desktop installation is possible with the desktop base accessory 753A (sold separately).

Can be used by hearing aid wearers.
  • Profile - The thinnest on the market, just 2.6 cm thick and thanks to the fixing bracket, it is easily applied to the wall.

  • Design - Available in white or black: both versions are finished with a special glossy effect typical of today’s ultra-modern technology.

  • Ringtone - 10 different pre-set melodies: simply select your favourite and adjust the volume according to your requirements and the application.

  • Colour display - Visual performance embodied in a 4.3” display showing external images with perfect colour and definition.

  • Capacitive keypad - Capacitive technology the TAB video door entry units are the first to be fitted with flush-mounted buttons and controls. There is no extra bulk, in line with the minimal design of the appliance as a whole.

  • Accessibility - TAB video door entry units are suitable for use also by hearing aid wearers. Plus, the keypad is back-lit: each icon lights up when the corresponding function is activated.

  • Speakerphone - TAB 7559 means freedom of communication, with no ties, totally practical. No cables, no handsets.

Video

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
