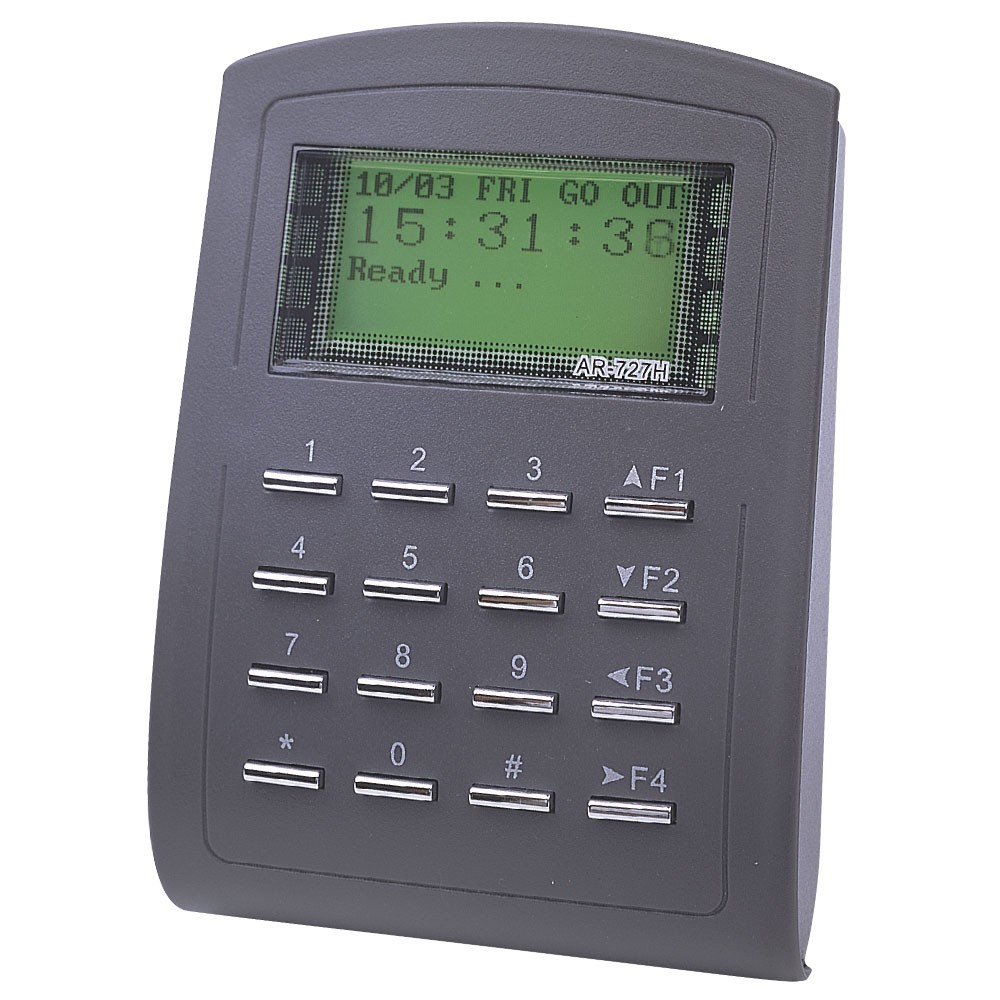

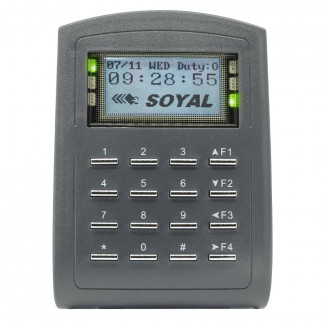

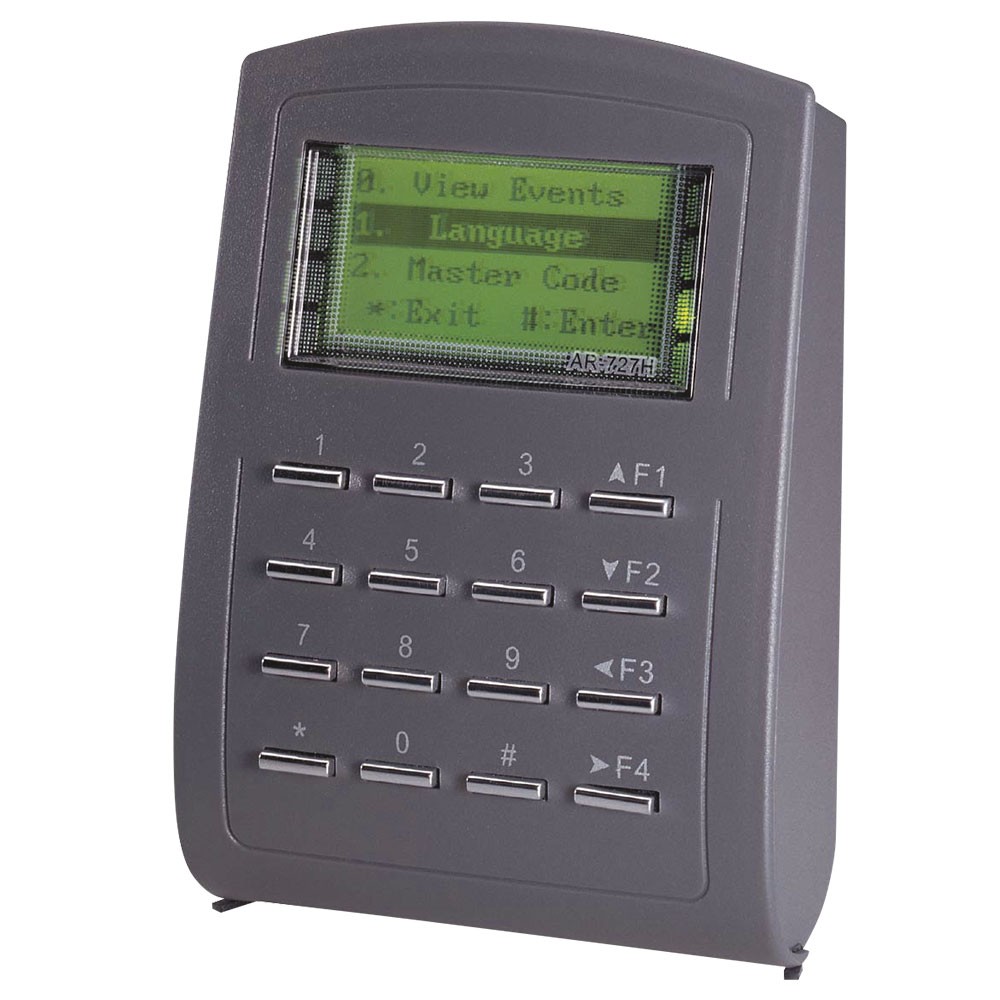

Soyal AR-727H Network or Stand-alone Controller and Proximity Reader


  • Standalone controller/reader with one slave Wiegand reader
  • Network node with RS485 connection to Master Controller
  • Proximity Card, Token or Code Input
  • Reading Range 3…8cm
  • Built-in lock release relay
  • Built-in alarm relay
  • Anti-passback memory 1024
  • Event log 1200
  • Card/token memory 1024
  • Tamper switch
  • Working temperature -20°C to +75°C
  • Lift controller 32 floors, 1024 users
  • Power consumption <3w
  • Unit Dimensions : 127 x 91 x 46mm


The Soyal AR-727H is an extremely versatile controller/reader operating as a standalone controller or as a slave controller via an RS485 connection to an AR-716E master controller. It can also be used as an access controller for lifts, providing access control for up to 32 floors,1024 users when used in conjunction with relay output device AR-401RO16.

When used with master controller AR-716E for door control, up to 16 x AR727H can be connected to the RS485 ports of the master controller. Each AR-727H has an internal lock relay and has a Wiegand port to support one Wiegand proximity reader. This would enable up to 16 doors to be controlled with anti-passback and local lock release switching.

Additional Information

Manufacturer Soyal
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
