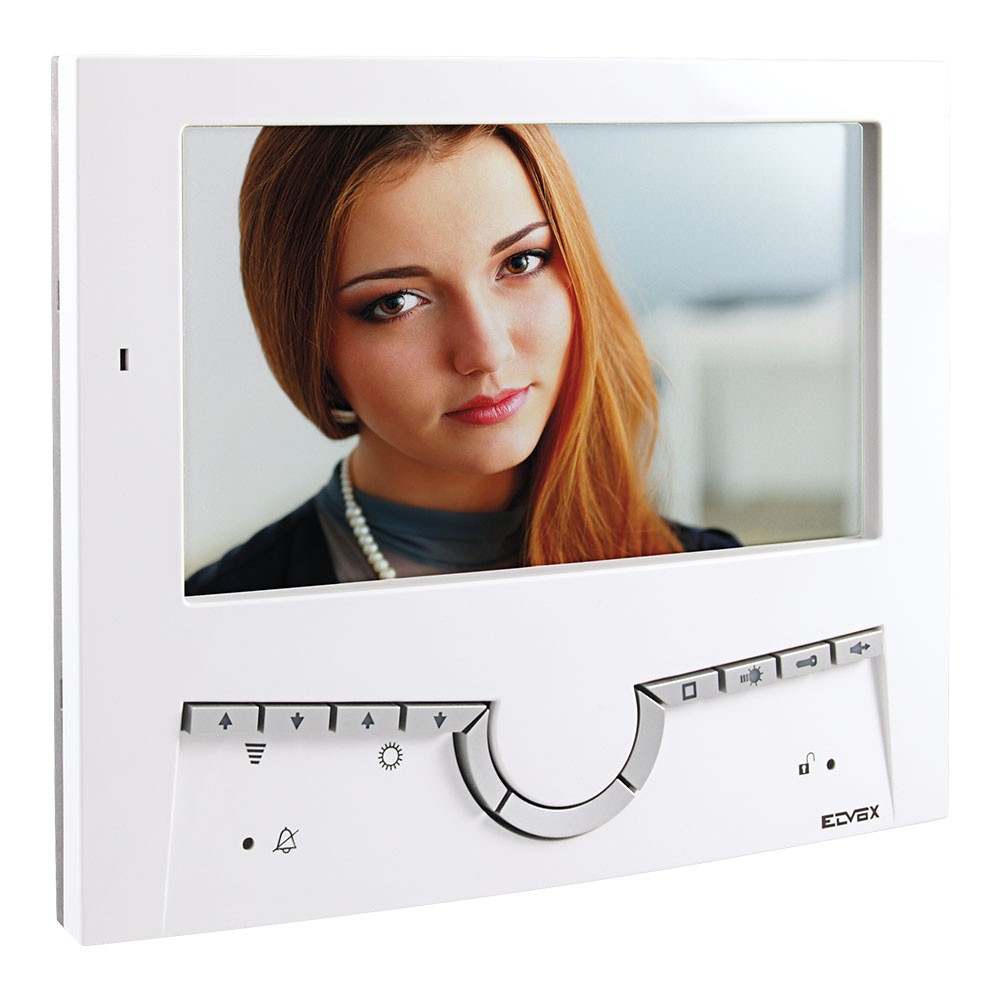

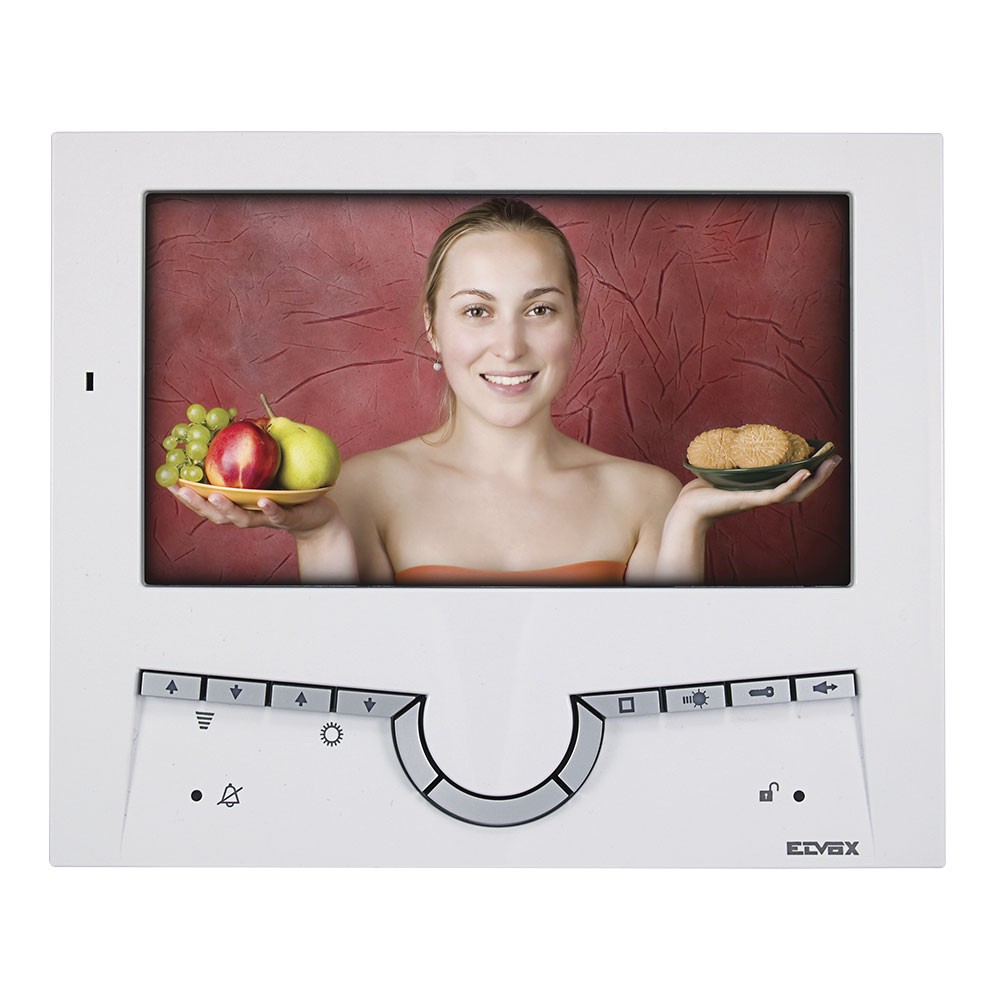

Elvox 7200 Series Open Voice Audio/Video 'Widescreen' Door Entry Monitor

Features

  • 7" high-resolution widescreen LCD monitor, for crystal-clear digital images
  • Wider field of vision due to the 16:9 aspect ratio, providing a clear view of visitors positioned at each side of the frame
  • The external appearance of the monitor can be personalised with a wide range of cover finishes and colours
  • LED backlit function keys for easy operation even in poor lighting conditions
  • Brightness adjustment, ringtone volume and a choice of 7 different melodies
  • Equipped with dedicated push-buttons for self-start, stair light, door lock release and reply functions
  • Green LED "door open" signal
  • Installation requires the flush-mounted back box type 7249, made of ABS plastic

Details

The Vimar (Elvox) Open Voice Monitor, type 7200 is a wide screen addition to the Vimar (Elvox) range of Open Voice systems. The 7200 can be used as a larger alternative to the 6600 series monitor. The flush mounted 7200 has a 7" 16:9 wide screen TFT LCD colour display. The monitors are supplied as standard with a white front cover, however a range of different colours and finishes are available. The 7200 series monitor is compatible with the Elvox 'Sound System', 'Two-Wire' and 'Digi-Bus' range of systems.

Dimensions 193 x 159 x 18mm (+31mm flush mounted recess)

System Options - with white cover (standard)
  • 'Sound System' 7" monitor - Type 7200
  • 'Two-Wire' 7" intercommunicating monitor - Type 7211
  • 'Digi-bus' 7" monitor - Type 7214
Mounting Options
  • 'Flush' mounting back box for 7200 series monitor - Type 7249
  • Surface mounting box for 7200 series monitor - Type 7249
Additional Colour Options
  • Metallic silver cover - Type 72SV
  • Metallic black cover - Type 72BK
  • Polished gold cover - Type 72GD
Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Call for Prices
