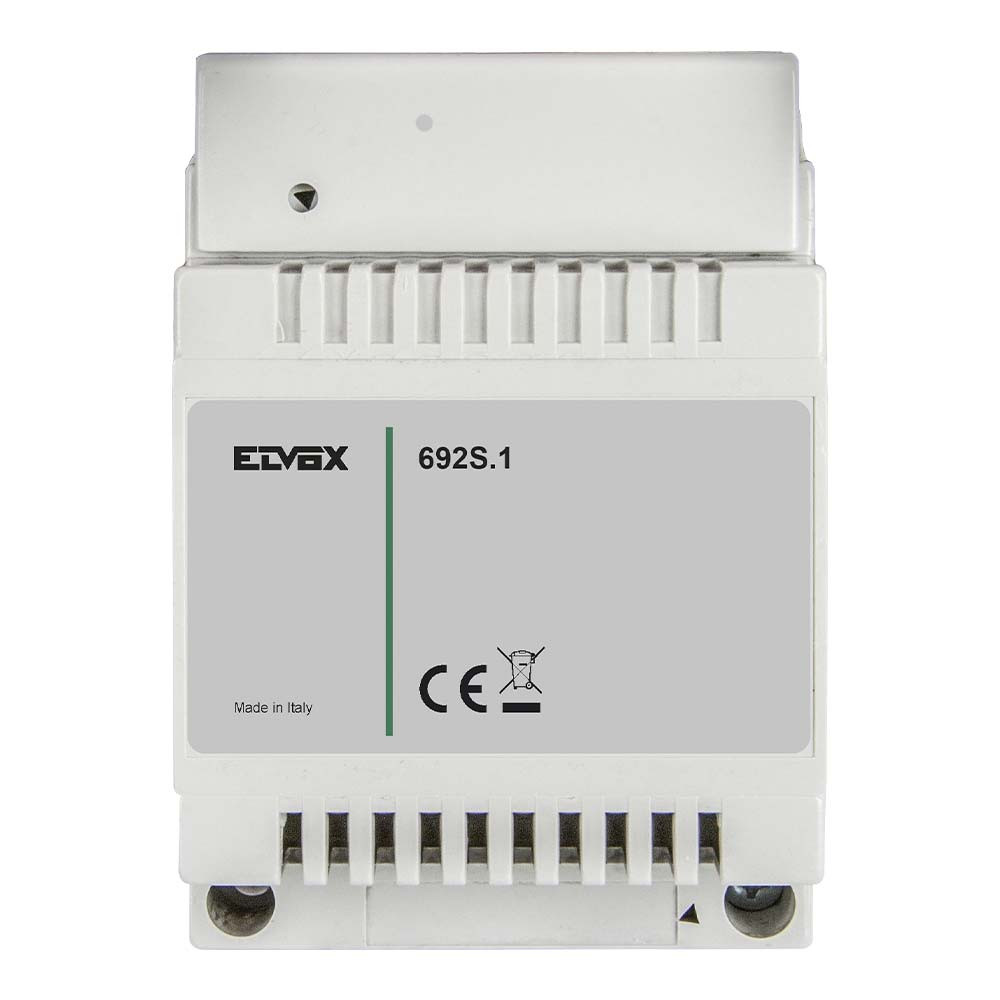

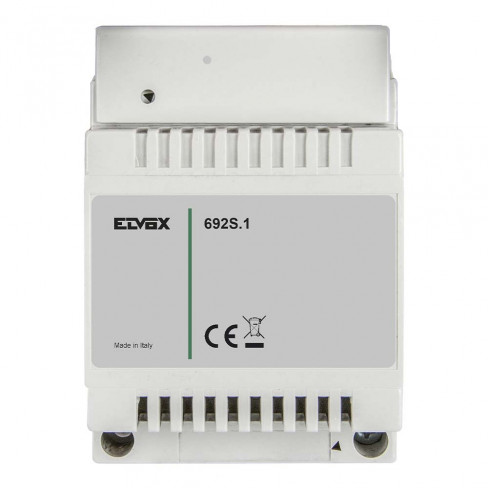

692S.1 Separator for Elvox 2 Wire Systems

Features

  • For dividing conversation areas, intercom networks, landing entrance Panels and building complexes
  • Input and output for Bus-P (Main bus line)
  • Output for Bus-D (secondary bus line)
  • Jumpers to set device ID and termination
  • For use in Elvox 2 wire systems

Details

The 692S.1 separator device is an accessory used in Elvox Due Fili Plus (2 Wire) systems to create distinct communication islands (conversation areas).

It should be used in the following cases:

  • In building complex type installations where there is one or more main entrance panels, one or more buildings with ’one or more secondary panels inside. One separator for each building.
  • In installations where panels are connected to an interphone or to a video entry system outside. One separator for each panel outside.
  • In installations where interphones and video entry systems are connected, that should not engage the lines of the other devices while speaking.

The 692S.1 can be either surface mounted or DIN rail mounted (4 modules 60715 TH35).

Additional Information

Manufacturer Vimar - Elvox
Part Numbers 692S.1

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428510 for a quotation. Email us for a Quote
